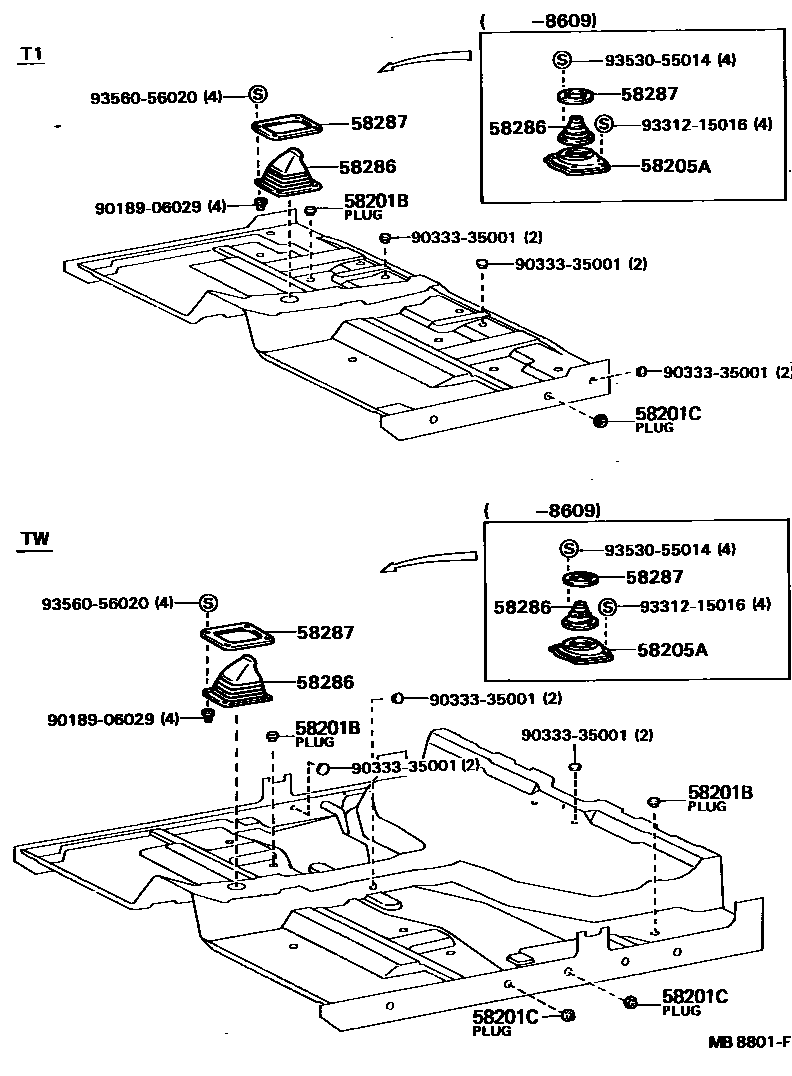

Toyota STOUT — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
58201BPLUG, HOLE(FOR FLOOR PANEL)
58201CPLUG, HOLE(FOR ROCKER INNER PANEL)
58205ACOVER SUB-ASSY, SHIFT LEVER BOOT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
9018906029
main90189-06029
9033335001
main90333-35001
9331215016
main93312-15016
9353055014
main93530-55014
9356056020
main93560-56020
10 parts on this diagram · 1 diagram in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota STOUT
This section contains 10 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota STOUT. Key components include: PLUG, HOLE(FOR FLOOR PANEL), PLUG, HOLE(FOR ROCKER INNER PANEL), COVER SUB-ASSY, SHIFT LEVER BOOT, BOOT, SHIFT & SELECT LEVER, NO.1, RETAINER, SHIFT LEVER BOOT.
