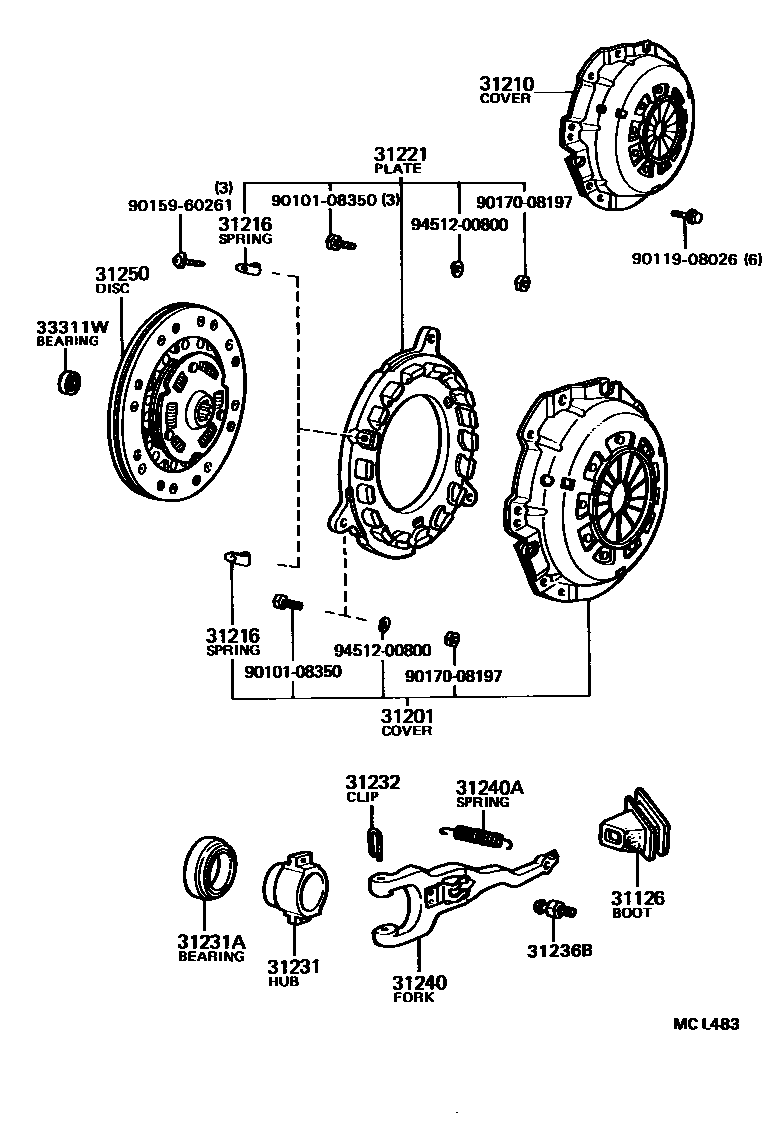

Toyota STOUT — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYK110198609-200002

main31126-25021iRK110197903-198609

31201COVER SUB-ASSY, CLUTCH

main31201-29075iRK110197903-197908

main31201-29076iRK110197908-198101

main31201-29085iRK110198101-198609

sub31201-26010

31210COVER ASSY, CLUTCH

main31210-24010iYK110198609-198808

sub31210-24011

main31210-35100iYK110198808-199911

main31210-35101iYK110199911-200002

sub31210-35102

main31210-36027iRK110197903-197908

main31210-36028iRK110197908-198101

main31210-36029iRK110198101-198609

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iRK110197903-198609

31221PLATE, CLUTCH PRESSURE

main31221-39056iRK110197903-198609

sub31221-36025

31231HUB, CLUTCH RELEASE BEARING

main31231-20051iRK110197903-197904

main31231-20052iRK110197904-198009

main31231-30080iRK110198009-198609

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40003iRK110197903-198001

main90363-40010iRK110198001-198009

main90363-40019iRK110198009-198211

main90363-40022iRK110198211-198803

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010×2iRK110197903-198009

main31232-30020×2iRK110198009-198609

31236BSUPPORT, RELEASE FORK

main31236-25010iRK110197903-198609

main31236-35030iYK110198609-200002

31240FORK ASSY, CLUTCH RELEASE

main31204-20031iRK110197903-198007

main31204-25020iRK110198007-198609

main31204-35031iYK110198804-200002

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14041iRK110198111-198609

main90506-16466iRK110197903-198111

31250DISC ASSY, CLUTCH

main31250-20240iYK110199505-199702

main31250-20241iYK110199702-200002

sub31250-20242

main31250-22101iRK110198105-198609

sub31250-22102

main31250-25122iYK110199308-199505

main31250-35080iRK110198103-198105

main31250-36065iRK110197903-198006

main31250-36066iRK110198006-198103

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRK110198006-198804

sub90363-12024

main97143-06201iRK110197903-198006

6201 VV C3

9010108350

main90101-08350

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
