Toyota STOUT — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-30050i197903-200002

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100i197903-198703

main85310-22080i198703-200002

85330JAR ASSY, WINDSHIELD WASHER

main85330-89104i197903-198804

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i197903-200002

85345NOZZLE, WINDSHIELD WASHER

main85341-89104×2i197903-198804

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198804-200002

main85355-14010i197903-198201

3 WAY

main85355-87201i197903-198703

2 WAY

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i197912-198804

L=1000

main90446-06236i197903-197912

L=1000(*H,L=450)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198804-200002

L=1000

main90446-06056i197903-197912

L=1000(*H,L=700)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33243i197903-198108

L=1000(*H,L=550)

main90099-33321i197903-197912

L=1000(*H,L=100)

main90446-06013i198804-200002

L=1000

9046310338

main90463-10338

9046315617

main90463-15617

9354055014

main93540-55014

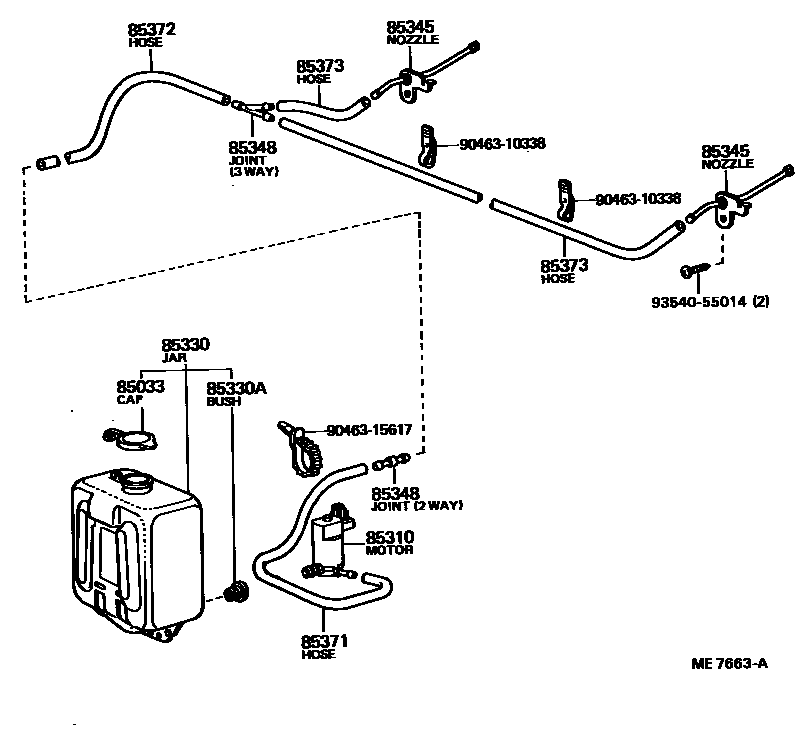

12 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota STOUT

This section contains 12 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STOUT. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
