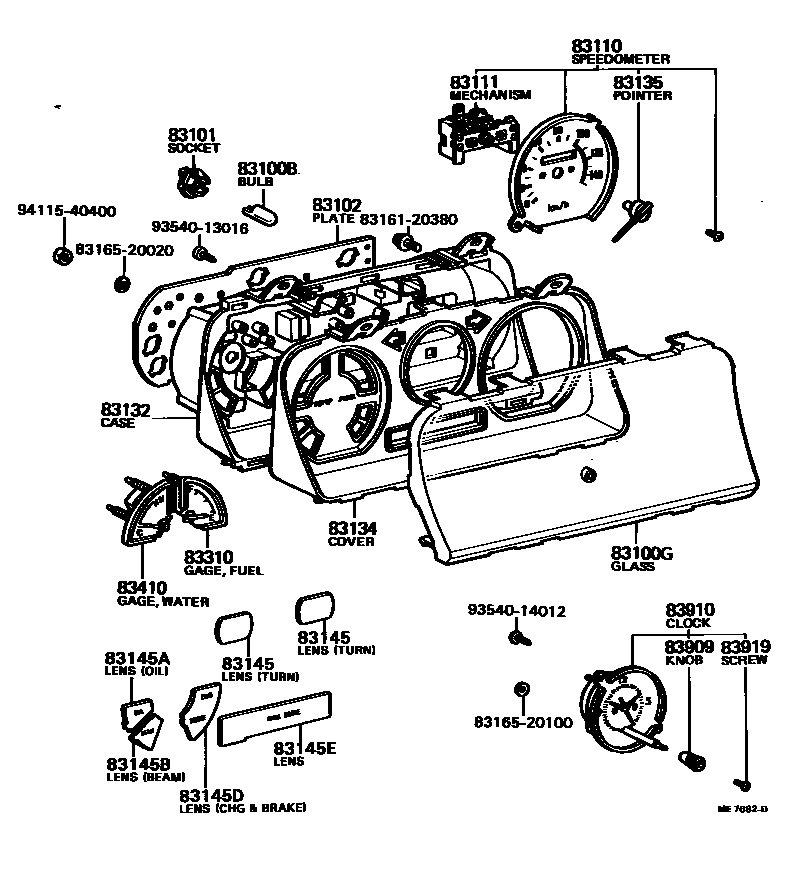

Toyota STOUT — METER

83100BBULB, COMBINATION METER, NO.1

main90981-11018i198804-199308

12V 1.2W W/O SOCKET

main99132-12034×9i198804-200002

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-89132i197903-198108

main83138-89134i197903-198108

W/CLOCK

main83138-89251i198108-198804

main83138-89253i198804-200002

W(CLOCK)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040i198804-199308

BULB=1.4W

main83101-20040×10i197903-198804

BULB=3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-89130i198008-198108

main83102-89168i198008-198108

main83247-89213i198108-198609

main83247-89215i198308-198609

SAUDI ARABIA SPEC

main83247-89217i198108-198609

main83247-92300i198804-200002

83110SPEEDOMETER ASSY

main83110-3D020i199308-200002

main83110-89132i197903-198108

main83110-89135i197903-198108

MILE & KM

main83110-89140i197903-198108

main83110-89177i198108-198609

main83110-89178i198108-198609

main83110-89179i198108-198609

MILE & KM

main83110-92300i198308-198609

KM,SAUDI ARABIA SPEC

main83110-92302i198804-199308

main83110-92303i198804-200002

MILE & KM

main83110-92304i198804-199308

KM,SAUDI ARABIA SPEC

83111MECHANISM, SPEEDOMETER

main83112-89132i197903-198108

main83112-89135i197903-198108

MILE & KM

main83112-89148i197903-198108

83132CASE, COMBINATION METER

main83132-89130i197903-198108

main83132-89251i198108-198804

83134COVER, COMBINATION METER, NO.1

main83134-89130i197903-198008

main83134-89131i197903-198008

W/CLOCK

main83134-89200i198108-198804

W/CLOCK

main83134-89201i198108-198804

main83134-89204i198008-198108

main83134-89205i198008-198108

W/CLOCK

83135POINTER, SPEEDOMETER

main83135-89130i197903-198108

83145LENS, METER, NO.1

main83145-89114×2i197903-198108

TURN

main83145-89245×2i198108-198803

TURN

main83145-89320×2i198804-200002

83145ALENS, METER, NO.2

main83145-89113i197903-198008

OIL

main83145-89212i198008-198108

OIL

main83145-89220i198008-198108

OIL

main83145-89228i198108-198609

OIL

main83145-89229i198108-198804

OIL

83145BLENS, METER, NO.3

main83145-89112i197903-198008

BEAM

main83145-89213i198008-198108

BEAM

main83145-89233i198108-198804

BLIND

main83145-89237i198108-198609

PARK BRAKE

main83145-92300i198804-199308

SAUDI ARABIA & OMAN SPEC

83145DLENS, METER, NO.5

main83145-89111i197903-198008

CHG & BRAKE

main83145-89211i198008-198108

CHG & BRAKE

main83145-89219i198008-198108

CHG & BRAKE

83145ELENS, METER, NO.6

main83145-89119i197903-198108

BLIND

main83145-89221i198008-198108

PARK BRAKE

main83145-95114i197903-198008

PARK BRAKE

83310GAGE ASSY, FUEL RECEIVER

main83243-89210i198108-198609

main83243-89211i198108-198804

main83310-89130i197903-198108

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-89210i198108-198609

main83244-89211i198108-198804

main83244-89212i198308-198804

SAUDI ARABIA SPEC

main83410-89130i197903-197912

main83410-89173i197912-198108

83909KNOB, CLOCK

main83909-12230i198108-198804

main83909-14012i197903-198108

83910CLOCK ASSY

main83910-89102i197903-198108

main83910-89104i198108-198804

DIGITAL

83919SCREW, CLOCK

main83919-12230i198108-198804

main83919-14012i197903-198108

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

8316520100MIRROR, COMBINATION METER, NO.2

main83165-20100

9354013016

main93540-13016

9354014012

main93540-14012

9411540400

main94115-40400

25 parts on this diagram · 3 diagrams in section

METER for Toyota STOUT

This section contains 37 genuine Toyota parts for the METER system of the Toyota STOUT. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
