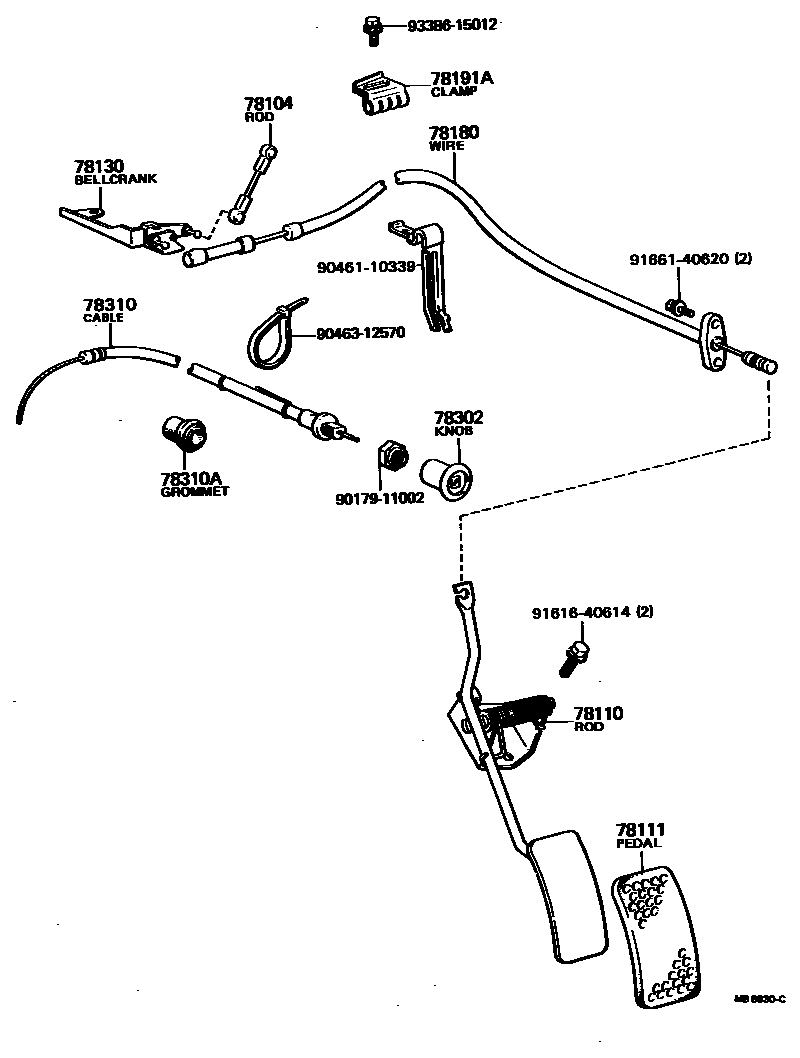

Toyota STOUT — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041iRK110197903-198609

main78104-89106iYK110198609-200002

78110ROD ASSY, ACCELERATOR PEDAL

main78120-92300iYK110..RHD198609-199308

main78120-92301iYK110..LHD198609-200002

main78120-95120iRK110..RHD197903-198609

main78120-95121iRK110..LHD197903-198609

78111PEDAL, ACCELERATOR

main78111-89102iRK110..LHD197903-198111

main78111-89103iYK110..LHD198804-200002

main78111-95110iYK110..RHD198804-199308

78130BELLCRANK ASSY, ACCELERATOR

main78130-89110iYK110198609-200002

main78130-95111iRK110197903-198609

78180WIRE ASSY, ACCELERATOR

main78180-92300iYK110..RHD198609-199308

main78180-92301iYK110..LHD198609-200002

main78180-95114iRK110..RHD197903-198609

main78180-95115iRK110..LHD197903-198609

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-08240iRK110..RHD197903-198609

main90461-10357iRK110..LHD197903-198609

78302KNOB SUB-ASSY, CHOKE ROD

main78311-89101iRK110197903-198008

main78311-89102iYK110198804-199009

main78311-89103iYK110199009-200002

78310CABLE ASSY, CHOKE

main78301-95110iRK110..LHD197903-198804

main78301-95111iRK110..LHD197903-198804

main78310-35030iYK110..RHD199009-199308

main78310-35040iYK110..LHD199009-200002

main78310-92300iYK110..RHD198804-199009

main78310-92301iYK110..LHD198804-199009

78310AGROMMET, CHOKE CABLE

main90480-15001iRK110197903-198609

9017911002

main90179-11002

9046110339

main90461-10339

9046312570

main90463-12570

9161640614

main91616-40614

9166140620

main91661-40620

9338615012

main93386-15012

15 parts on this diagram · 4 diagrams in section
