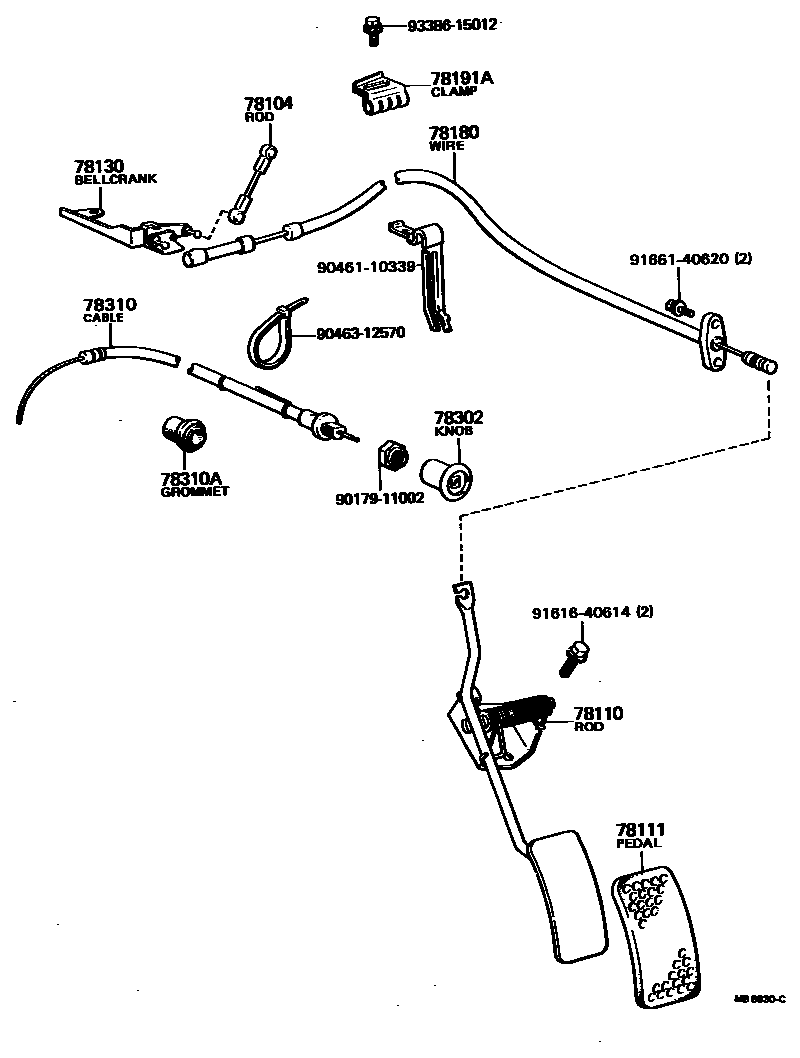

Toyota STOUT — ACCELERATOR LINK
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78110ROD ASSY, ACCELERATOR PEDAL
78111PEDAL, ACCELERATOR
78130BELLCRANK ASSY, ACCELERATOR
78180WIRE ASSY, ACCELERATOR
78191ACLAMP (FOR ACCELERATOR WIRE SET)
78302KNOB SUB-ASSY, CHOKE ROD
78310CABLE ASSY, CHOKE
78310AGROMMET, CHOKE CABLE
9017911002
main90179-11002
9046110339
main90461-10339
9046312570
main90463-12570
9161640614
main91616-40614
9166140620
main91661-40620
9338615012
main93386-15012
15 parts on this diagram · 4 diagrams in section
ACCELERATOR LINK for Toyota STOUT
This section contains 38 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota STOUT. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT, ROD ASSY, ACCELERATOR PEDAL.
