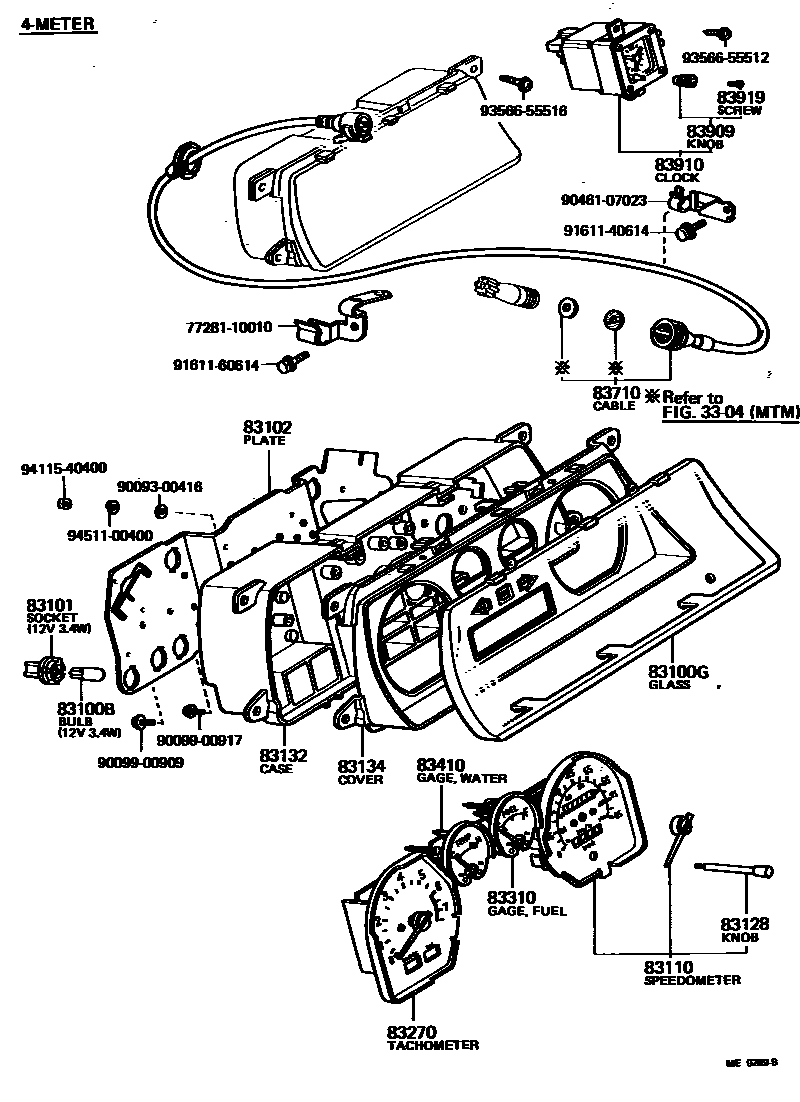

Toyota STARLET — METER
3304SPEEDOMETER DRIVEN GEAR (MTM)
83100BBULB, COMBINATION METER, NO.1
12V 1.2W W/O SOCKET,12V 1.4W
12V 3.4W,12V 3.4W
83100GGLASS, COMBINATION METER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83134COVER, COMBINATION METER, NO.1
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83909KNOB, CLOCK
83910CLOCK ASSY
83919SCREW, CLOCK
7728110010BRACKET, FUEL MAIN TUBE, NO.1
main77281-10010
9009300416
main90093-00416
9009900909
main90099-00909
9009900917
main90099-00917
9046107023
main90461-07023
9161140614
main91611-40614
9161160614
main91611-60614
9356655512
main93566-55512
9356655516
main93566-55516
9411540400
main94115-40400
9451100400
main94511-00400
27 parts on this diagram · 3 diagrams in section
METER for Toyota STARLET
This section contains 32 genuine Toyota parts for the METER system of the Toyota STARLET. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
