Toyota STARLET — INDICATOR

0001 1 0002 1

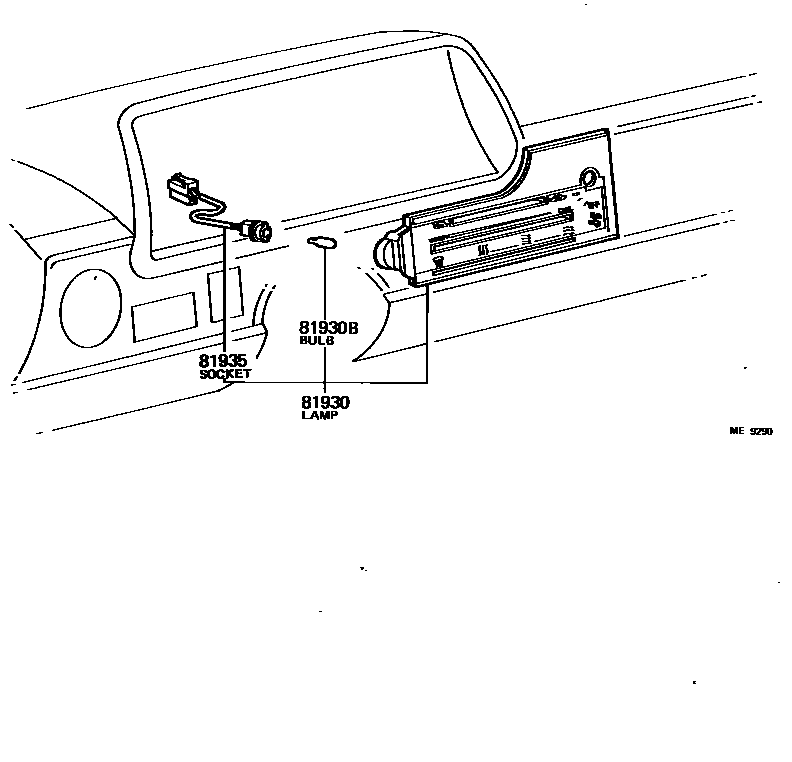

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-10170-01iKP61198008-198208

BLACK,BLACK

sub81930-10140

main81930-10170-06iKP61198008-198208

LIGHT BROWN,BROWN

sub81930-10140

81930BBULB, HEATER CONTROL INDICATOR LAMP

main81936-30080iKP61198008-198208

12V 1.4W

main90981-11018iKP61198208-198312

12V 1.2W W/O SOCKET,12V 1.4W

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-10031iKP61198008-198208

3 parts on this diagram · 2 diagrams in section
