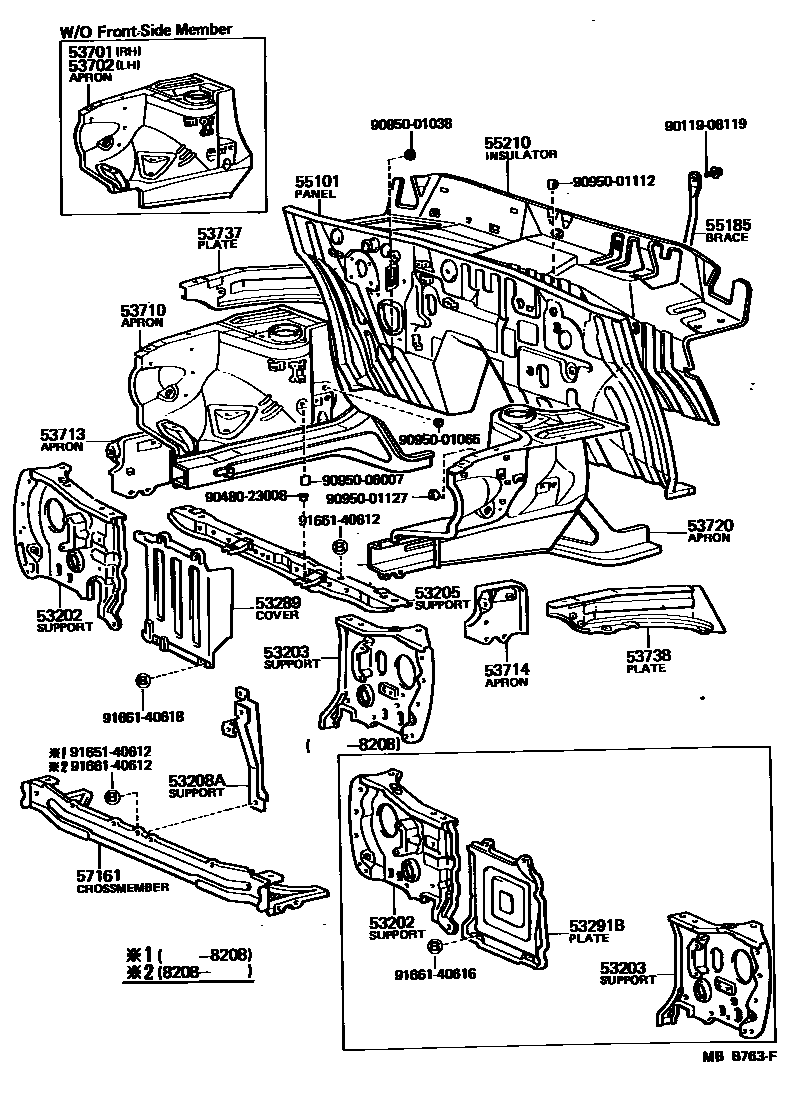

Toyota STARLET — FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53289COVER, RADIATOR SIDE BAFFLE
53291BPLATE, RADIATOR COVER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
55101PANEL SUB-ASSY, DASH
55185BRACE, DASH PANEL TO COWL
55210INSULATOR ASSY, DASH PANEL
W/COOLER
W/O COOLER
W/COOLER
W/COOLER
W/O COOLER
W/O COOLER
9011908119
main90119-08119
9048023008
main90480-23008
9095001038
main90950-01038
9095001065
main90950-01065
9095001112
main90950-01112
9095001127
main90950-01127
9095006007
main90950-06007
9165140612
main91651-40612
9166140612
main91661-40612
9166140616
main91661-40616
9166140618
main91661-40618
29 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota STARLET
This section contains 29 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota STARLET. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, COVER, RADIATOR SIDE BAFFLE.
