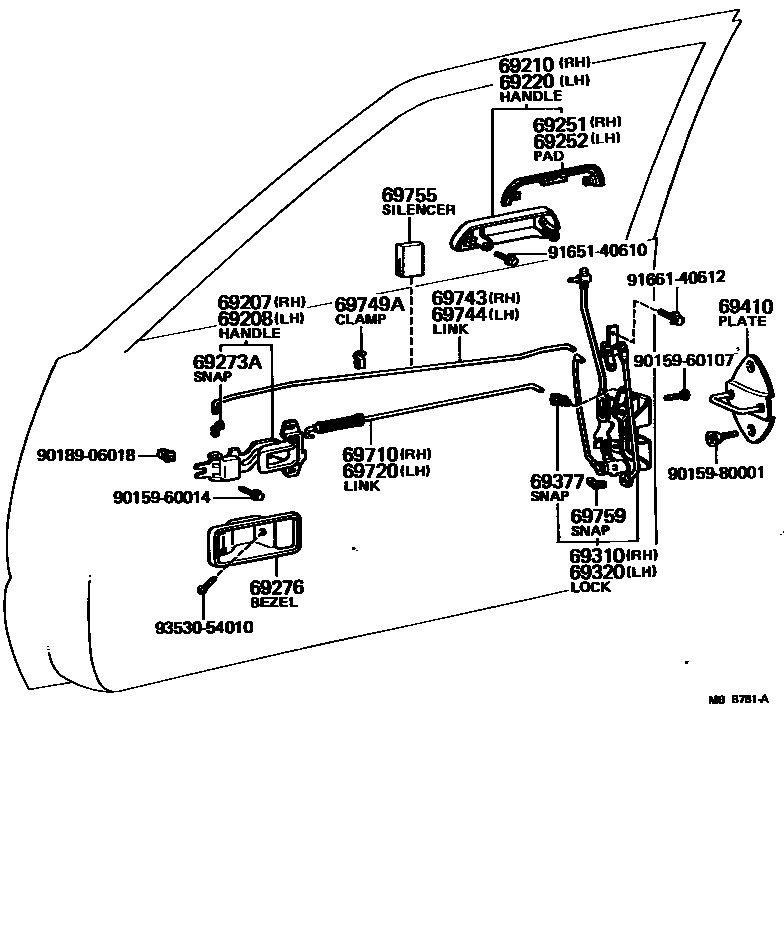

Toyota STARLET — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755SILENCER, FRONT DOOR LOCK LINK
40X50,W/SLIT
40X40
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015960014
main90159-60014
9015960107
main90159-60107
9015980001
main90159-80001
9018906018
main90189-06018
9165140610
main91651-40610
9166140612
main91661-40612
9353054010
main93530-54010
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota STARLET
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota STARLET. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH.
