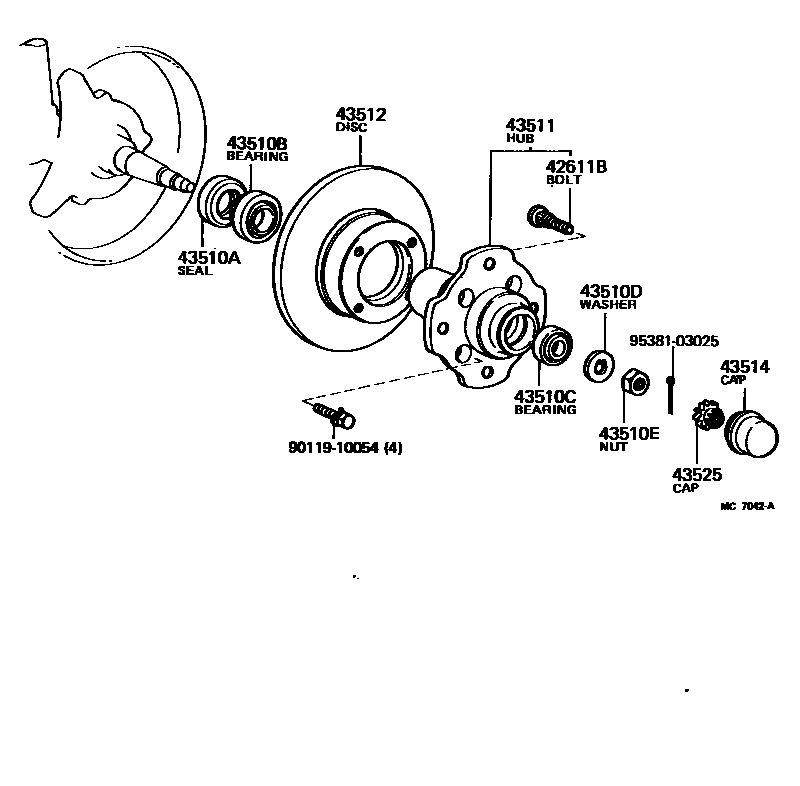

Toyota STARLET — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036×8i198008-198306

main90942-02048×8i198306-198312

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108×2i198008-198312

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26027×2i198008-198312

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2i198008-198312

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2i198008-198312

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2i198008-198312

43511HUB, FRONT AXLE

main43502-10010×2i198008-198312

43512DISC, FRONT

main43512-10050×2i198008-198312

43514CAP, FRONT HUB GREASE

main43514-12010×2i198008-198312

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2i198008-198312

9011910054

main90119-10054

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota STARLET

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota STARLET. Key components include: BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING), WASHER, CLAW (FOR STEERING KNUCKLE WASHER).
