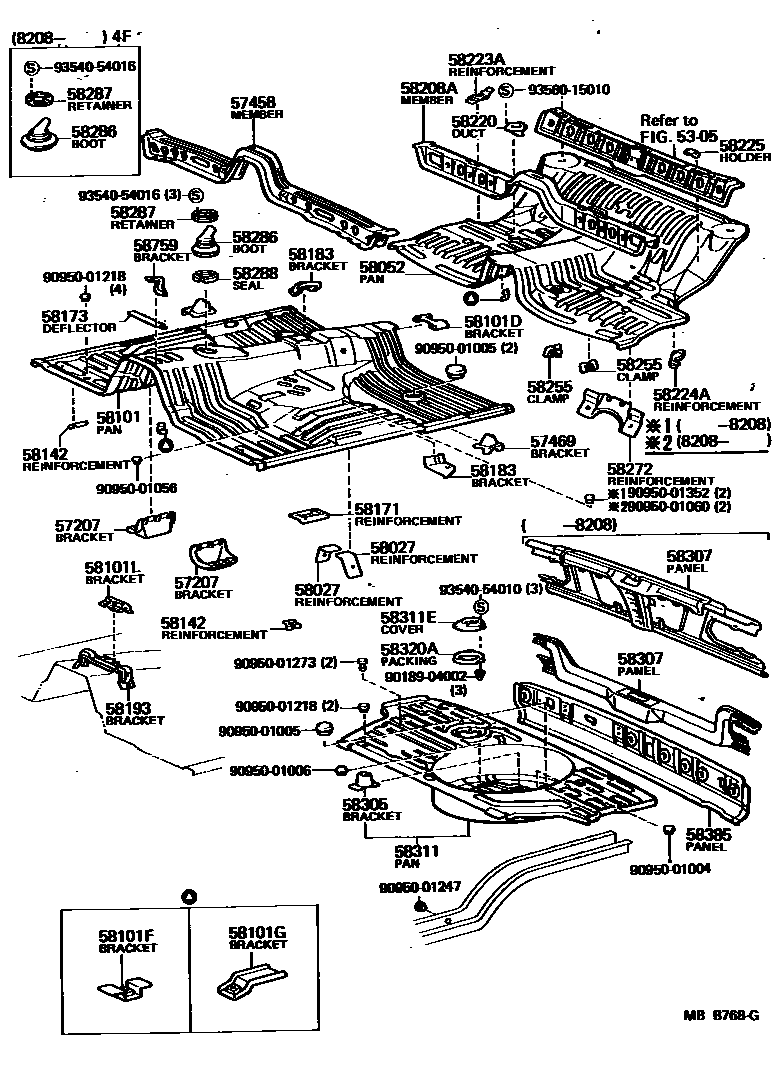

Toyota STARLET — FLOOR PAN & LOWER BACK PANEL

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-10011iKP61198008-198108

RH

main57207-10012iKP61198108-198312

RH

main57208-10021iKP61198008-198108

LH

main57208-10022iKP61198108-198312

LH

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-10020iKP61198008-198104

main57408-10030iKP61198104-198208

main57408-10031iKP61198208-198312

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-10011iKP61198008-198312

RH

main57469-10011iKP61198008-198312

LH

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58161-10021×2iKP61198008-198312

58052PAN SUB-ASSY, CENTER FLOOR

main58211-10111iKP61198008-198312

58101PAN SUB-ASSY, FRONT FLOOR

main58111-10042iKP61198108-198312

main58111-10061iKP61198008-198108

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-10020iKP61198008-198312

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58236-14010×6iKP61198008-198312

58101GBRACKET, MOUNTING, FLOOR, NO.2

main58132-10010×2iKP61198008-198312

58101LBRACKET, MOUNTING, FLOOR, NO.6

main58991-10030iKP61198208-198312

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-10020×2iKP61198008-198312

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12030iKP61198008-198312

58173DEFLECTOR, FRONT FLOOR STONE

main58173-10020iKP61198008-198312

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58104-10020iKP61198008-198312

LH

main58183-10031iKP61198008-198312

RH

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10020iKP61198208-198312

58208AMEMBER, CENTER FLOOR CROSS, NO.1

main57407-10060iKP61198008-198208

main57461-10021iKP61198208-198312

58220DUCT ASSY, CENTER FLOOR VENT

main58220-10010iKP61198008-198312

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58213-10010iKP61198008-198312

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58214-10010iKP61198008-198312

58225HOLDER, REAR SEAT CUSHION

main58225-10010×2iKP61198008-198312

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-10060iKP61198008-198312

RH

main58208-10080iKP61198008-198312

LH

58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58270-10020iKP61198008-198312

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58209-10010iKP61..4F198208-198312

main58286-10020iKP61..5F198008-198312

58287RETAINER, SHIFT LEVER BOOT

main58287-10020iKP61198008-198312

58288SEAL, SHIFT LEVER BOOT

main58288-10030iKP61198008-198108

main58288-10031iKP61198108-198208

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iKP61198008-198312

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10132iKP61198208-198312

main58307-10210iKP61198008-198208

58311PAN, REAR FLOOR

main58301-10071iKP61198008-198108

sub58301-10072

sub90950-01056

main58301-10110iKP61198008-198012

W/RR WIPER

sub58301-10072

sub90950-01056

main58301-10120iKP61198108-198208

sub90950-01056

main58301-10121iKP61198208-198312

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-10010iKP61198008-198312

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-10020iKP61198008-198209

main58339-10021iKP61198209-198312

58385PANEL, REAR VALANCE

main58308-10030iKP61198008-198310

main58308-10040iKP61198310-198312

58759BRACKET, COWL TOP INNER STAY MOUNTING

main58125-10030iKP61198008-198108

main58125-10031iKP61198108-198208

9018904002

main90189-04002

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001056

main90950-01056

9095001060

main90950-01060

9095001218

main90950-01218

9095001247

main90950-01247

9095001273

main90950-01273

9095001352

main90950-01352

9354054010

main93540-54010

9354054016

main93540-54016

9356015010

main93560-15010

46 parts on this diagram · 1 diagram in section
