Toyota STARLET — COWL PANEL & WINDSHIELD GLASS

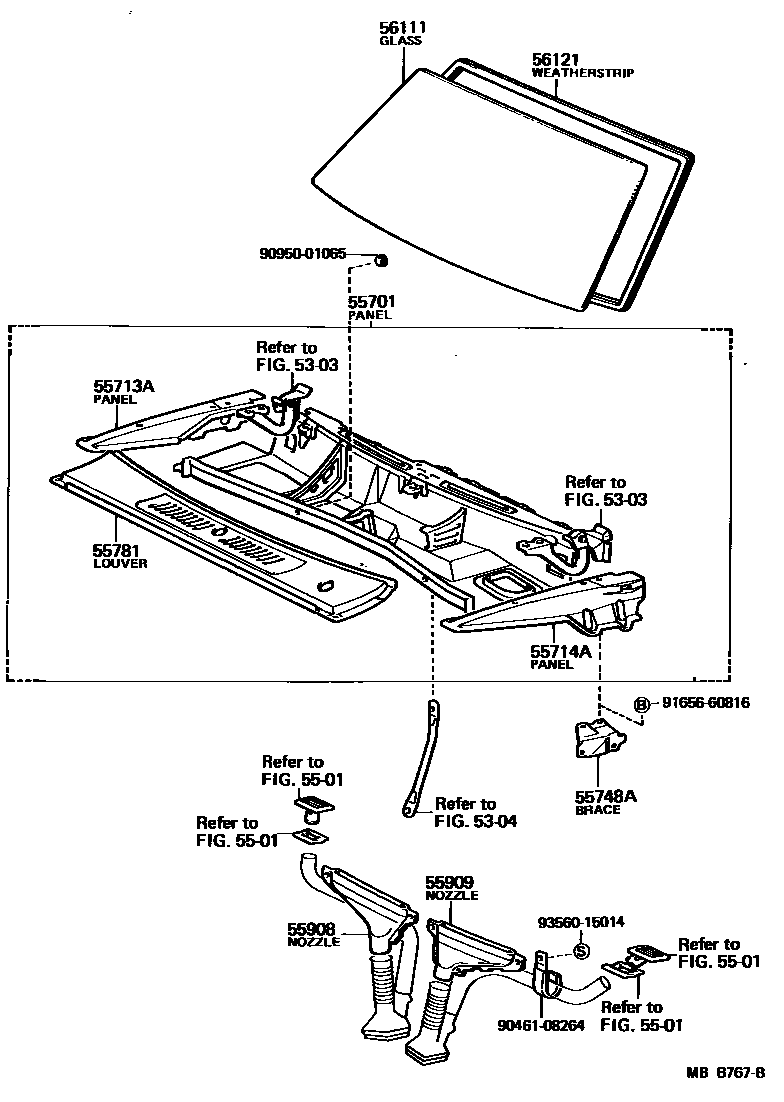

Parts diagram

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55701PANEL SUB-ASSY, COWL

main55700-10080i198008-198208

main55700-10081i198208-198312

55713APANEL, COWL TOP SIDE, RH

main55713-10031i198008-198312

55714APANEL, COWL TOP SIDE, LH

main55714-10021i198008-198312

55748ABRACE, COWL TOP INNER TO PILLAR

main55704-10050i198208-198312

RH

main55748-10010i198008-198208

main55748-10020i198208-198312

LH

55781LOUVER, COWL VENTILATOR

main55711-10061i198008-198312

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-10030i198008-198208

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-10010i198008-198208

56111GLASS, WINDSHIELD

main56111-10161i198008-198208

*LAM,T=5.3

main56111-10171i198108-198208

*TL,T=5.3

main56111-10180i198208-198312

*LAM,T=4.7

main56111-10190i198208-198312

*TL,T=4.7

56121WEATHERSTRIP, WINDSHIELD

main56121-10120i198008-198312

9046108264

main90461-08264

9095001065

main90950-01065

9165660816

main91656-60816

9356015014

main93560-15014

16 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota STARLET

This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota STARLET. Key components include: HOOD LOCK & HINGE, FRONT FENDER APRON & DASH PANEL, INSTRUMENT PANEL & GLOVE COMPARTMENT, SPACER, INSTRUMENT PANEL SAFETY PAD, PANEL SUB-ASSY, COWL.
