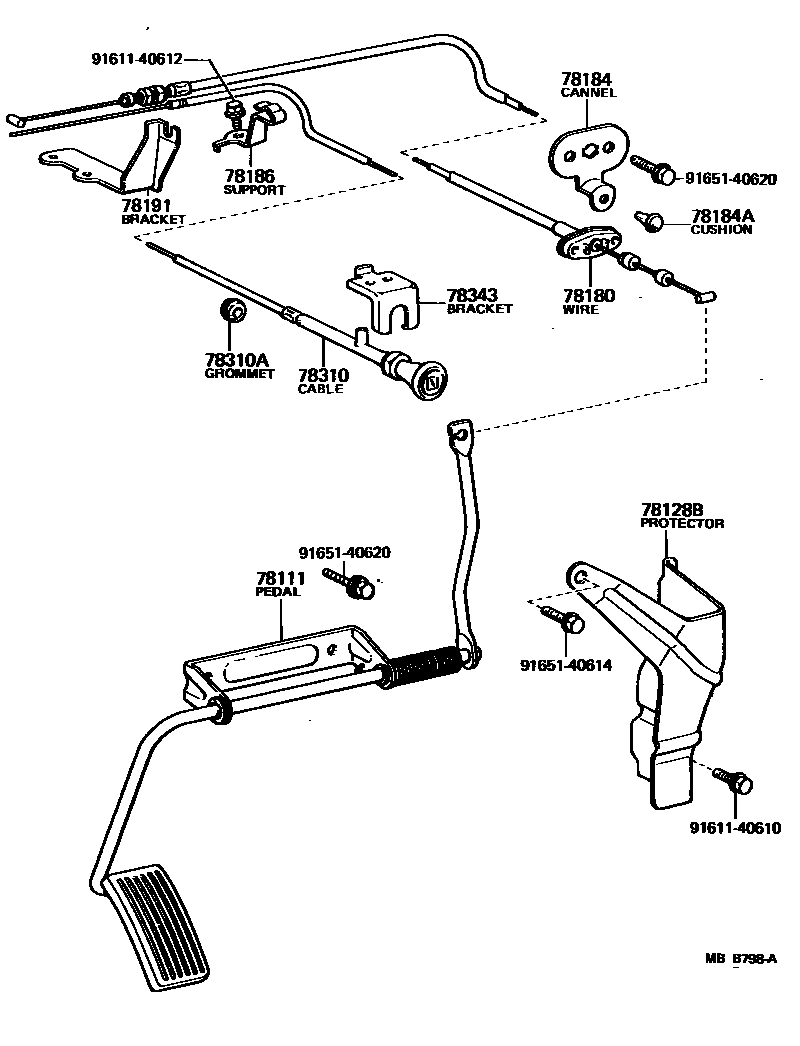

Toyota STARLET — ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78010-10020iKP61198008-198208

main78010-10070iKP61198208-198312

78128BPROTECTOR, ACCELERATOR PEDAL ROD

main78128-10010iKP61198008-198208

78180WIRE ASSY, ACCELERATOR

main78180-10140iKP61198008-198208

main78180-10160iKP61198208-198312

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-10070iKP61198008-198208

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iKP61198008-198208

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10020iKP61198008-198208

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78184-12040iKP61198008-198208

78310CABLE ASSY, CHOKE

main78310-10240iKP61198008-198208

78310AGROMMET, CHOKE CABLE

main90480-12007iKP61198008-198208

78343BRACKET, CHOKE ROD

main55364-10050iKP61198008-198208

main55364-10060iKP61..USA198008-198208

W/COOLER

9161140610

main91611-40610

9161140612

main91611-40612

9165140614

main91651-40614

9165140620

main91651-40620

14 parts on this diagram · 2 diagrams in section
