Toyota STARLET — WINDSHIELD WIPER

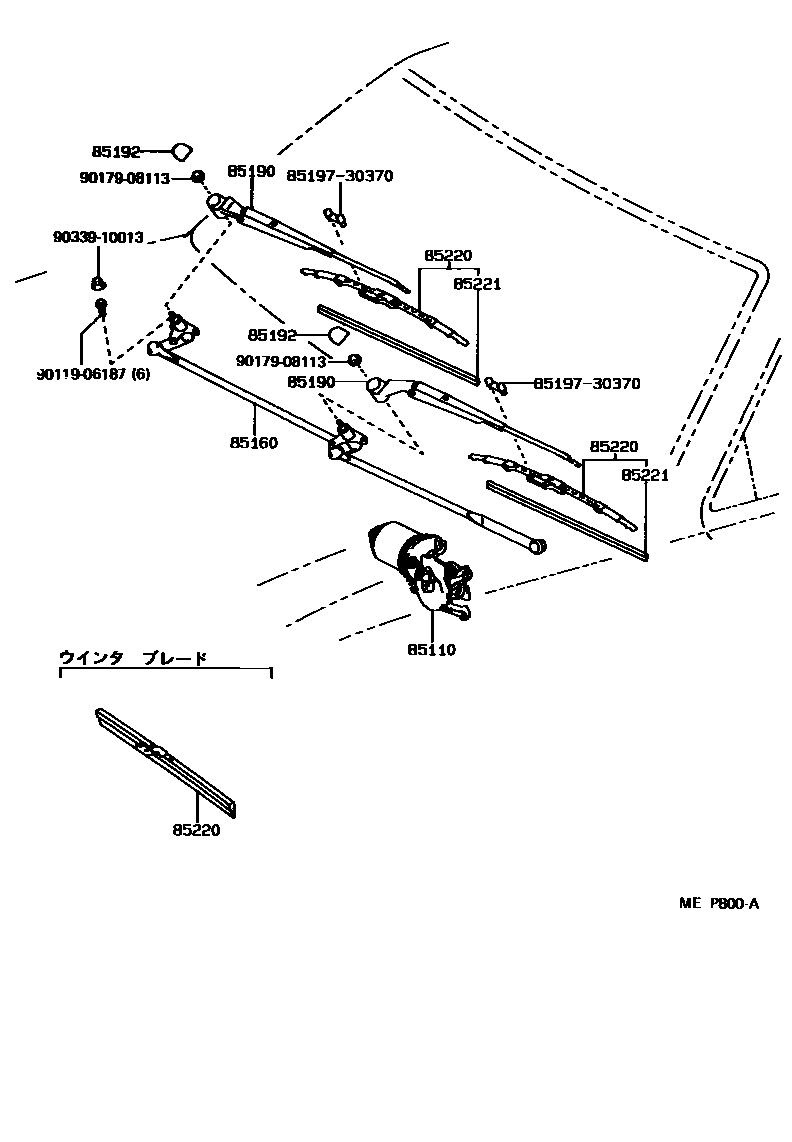

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10210i198912-199601

main85110-10330i198912-199601

85160LINK ASSY, WINDSHIELD WIPER

main85150-10210i198912-199012

main85150-10330i198912-199012

main85150-10351i199402-199601

85190ARM ASSY, WINDSHIELD WIPER

main85211-10080i198912-199012

main85211-10081i199012-199201

main85211-10082i199201-199402

main85211-10083i199402-199601

main85221-10080i198912-199012

main85221-10110i199012-199201

main85221-10111i199201-199601

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2i198912-199601

85220BLADE ASSY, WINDSHIELD WIPER

main85212-12290i199201-199601

main85212-24050i198912-199201

main85222-10180i198912-199409

main85222-10220i199409-199601

main85291-12010i198912-199601

main85291-32030i198912-199601

85221BLADE, WINDSHIELD WIPER

main85221-12230i199409-199601

main85221-24040i198912-199601

main85223-10180i198912-199409

8519730370

main85197-30370

9011906187

main90119-06187

9017908113

main90179-08113

9033910013

main90339-10013

10 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota STARLET

This section contains 10 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota STARLET. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, BLADE ASSY, WINDSHIELD WIPER.
