Toyota STARLET — WINDSHIELD WASHER

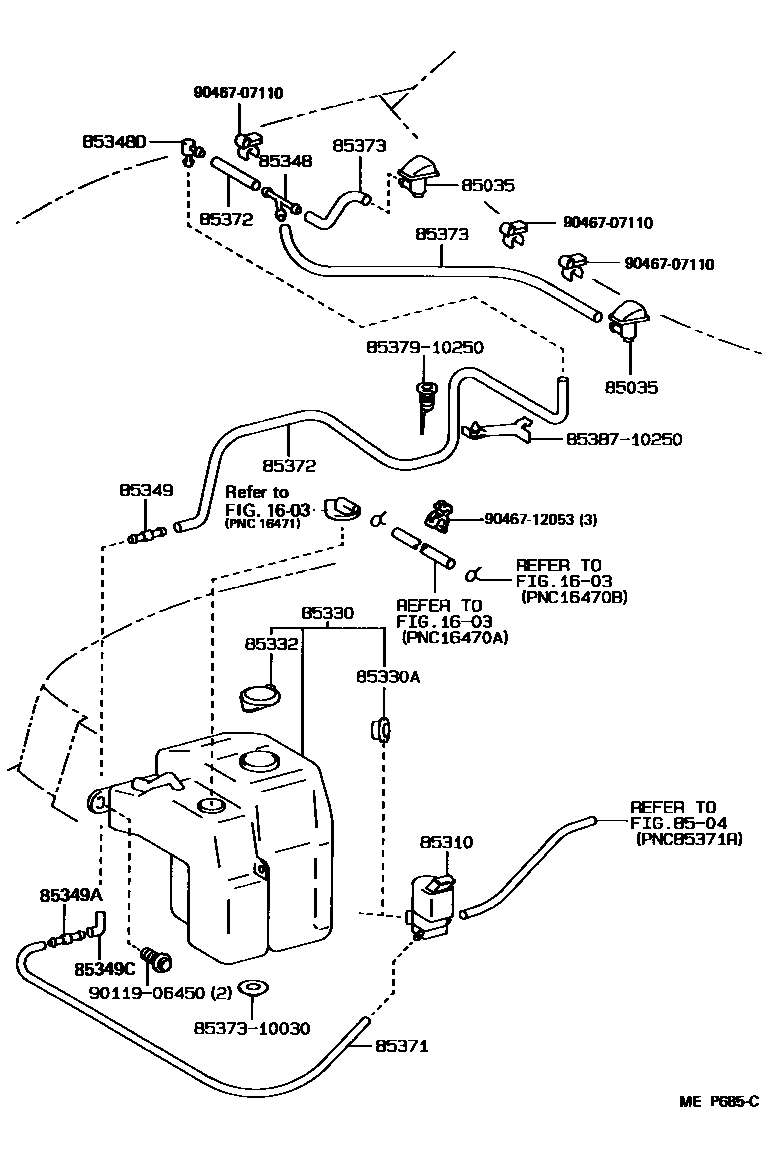

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85035NOZZLE SUB-ASSY, WASHER

main85381-10010×2i198912-199201

main85381-10020×2i198912-199201

main85381-10040×2i198912-199009

main85381-10050×2i198912-199201

main85381-12050×2i199405-199601

main85381-30020×2i199405-199509

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20170i199201-199209

main85310-20200i199405-199601

main85310-20210i199405-199509

main85330-10220i198912-199209

main85330-10221i199209-199405

main85330-12280i199405-199509

85330JAR ASSY, WINDSHIELD WASHER

main85315-10170i198912-199405

main85315-10190i199009-199201

main85315-10210i199201-199405

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198912-199601

85332CAP, WINDSHIELD WASHER JAR

main85316-10160×2i199007-199310

main85316-10190i199009-199201

main85316-16070i199310-199601

main85316-34050i199310-199405

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198912-199001

main85348-14390i199201-199601

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-10250i199201-199601

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199001-199201

main85375-10260i199201-199405

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i198912-199405

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-14481i199201-199405

main85355-20070i198912-199201

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i199405-199509

main90446-07001i199201-199405

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198912-199001

main90446-07001i198912-199009

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i198912-199001

main90446-06013i199001-199201

8537310030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-10030

8537910250JOINT

main85379-10250

8538710250CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10250

9011906450

main90119-06450

9046707110

main90467-07110

9046712053

main90467-12053

21 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota STARLET

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota STARLET. Key components include: RADIATOR & WATER OUTLET, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
