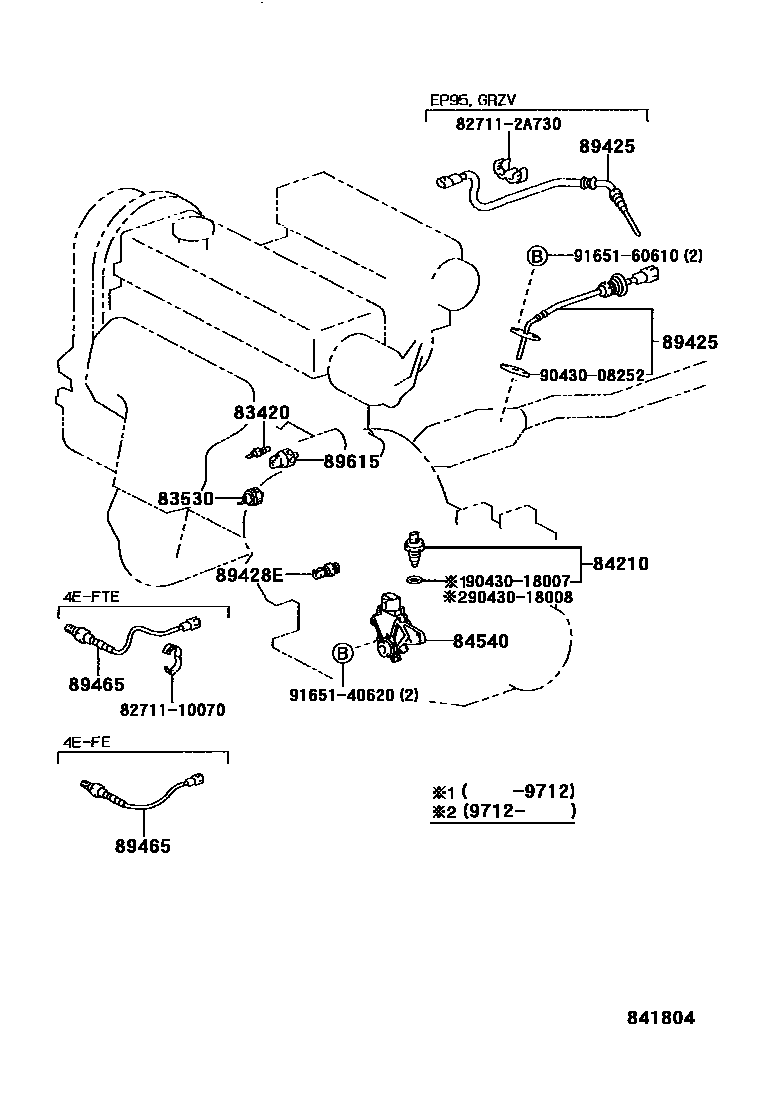

Toyota STARLET — SWITCH & RELAY & COMPUTER

0001 1E/G,T/M,T/F 0002 1E/G,T/M,T/F 0003 1E/G ROOM 0004 1E/G ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL & COWL 0007 1COMBINATION SWITCH 0008 1COMBINATION SWITCH 0010 1DOOR,ROOF & FLOOR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEP9#,NP90199601-199704

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iNP90199601-199803

main83530-28020iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199803

main83530-28030iNP90199803

main83530-30051iEP91..GLZV199601-199803

main83530-30090iEP9#..CARAT,GLZS,RFL,RFLF,RFLX199601-199803

sub83530-60020

main83530-60050iEP91..GLZV199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEP9#,NP90..MTM199601

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEP9#,NP90..ATM199601

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12280iEP95;EP91..GLZV199601-199708

main89425-19545iEP91..CARAT,GLZS,RFL,RFLF,RFLX199601-199708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iEP91..GLZV199604

main89428-41010iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601-199604

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iEP95..4FC199601-199805

89465SENSOR, OXYGEN

main89465-10020iEP91..GLZV199601

main89465-10060iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

89615SENSOR, KNOCK CONTROL

main89615-22040iEP9#199601

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9043008252

main90430-08252

9043018007

main90430-18007

9043018008

main90430-18008

9165140620

main91651-40620

9165160610

main91651-60610

16 parts on this diagram · 9 diagrams in section
