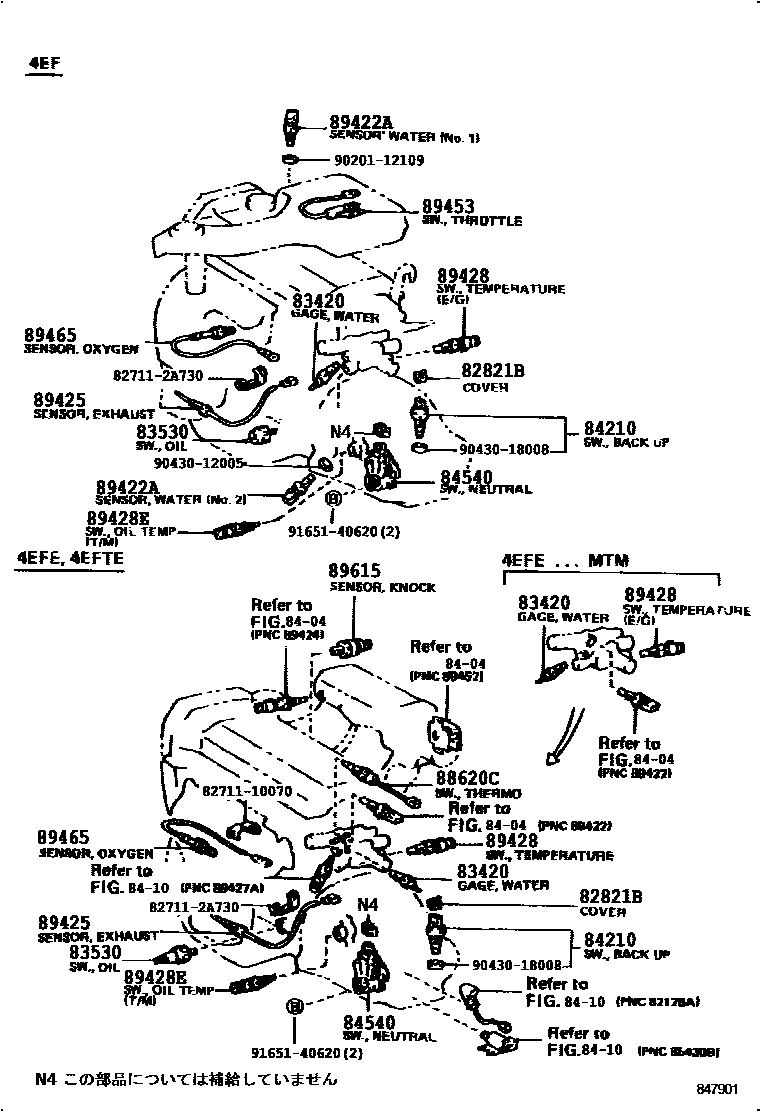

Toyota STARLET — SWITCH & RELAY & COMPUTER
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
8404
8410
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84540SWITCH ASSY, NEUTRAL START
88620CTHERMO SWITCH ASSY
*PHC
*PHC
89422ASENSOR, WATER TEMPERATURE
89428SWITCH, TEMPERATURE DETECT, NO.2
89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
sub89453-12040
89465SENSOR, OXYGEN
89615SENSOR, KNOCK CONTROL
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A730
9020112109
main90201-12109
9043012005
main90430-12005
9043018008
main90430-18008
9165140620
main91651-40620
21 parts on this diagram · 9 diagrams in section
