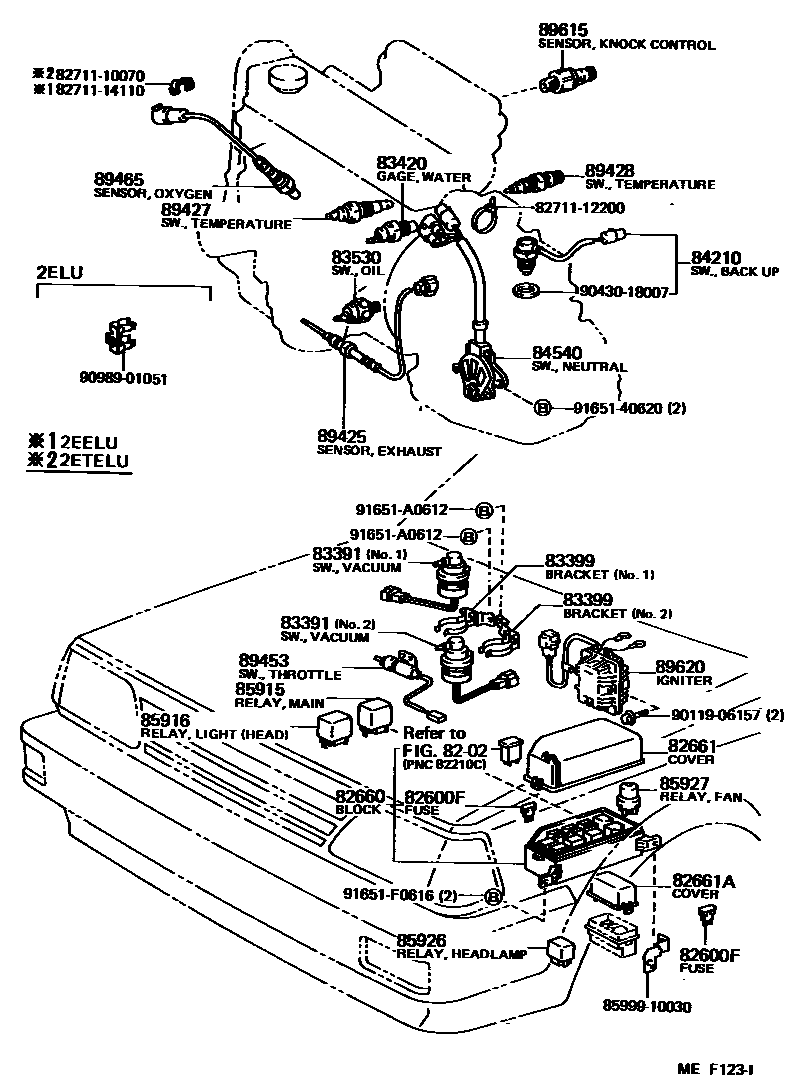

Toyota STARLET — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8202

82600FFUSE, FUSE BLOCK

main90982-07011iEP7#198410-198912

main90982-09002iEP7#198410-198912

main90982-09003iEP7#198410-198912

main90982-09004iEP7#198410-198912

main90982-09005iEP7#198410-198912

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-10020iEP7#..CBR198410-198802

main82660-10021iEP7#..CBR198802-198912

main82660-10030iEP71..EFI198410-198802

main82660-10031iEP71..EFI198802-198912

main82660-10070iEP71,NP7#..DSL,TBO198601-198706

main82660-10071iEP71,NP7#..DSL,TBO198706-198912

main82660-10080iNP7#198612-198706

COLD SPEC

main82660-10081iNP7#198706-198808

COLD SPEC

main82660-10082iNP7#198808-198912

COLD SPEC

82661COVER, RELAY BLOCK, NO.1

main82661-10010iEP7#..CBR,EFI198410-198912

main82661-10050iEP71,NP7#..DSL,TBO198601-198912

main82661-10060iNP7#198612-198808

COLD SPEC

main82661-10061iNP7#198808-198912

COLD SPEC

82661ACOVER, RELAY BLOCK, NO.2

main82661-10030iEP71..3D..4F..DX198410-198912

*52

83391SWITCH, VACUUM

main83391-10030iEP71..3D..4F..DX198410-198612

NO.2,W/*52,MARK=350M

main83391-10040iEP71..MTM..CBR198410-198612

NO.1,MARK=120M

main83391-10050iEP71..3FC198612-198801

NO.1,W/*52,MARK=80M

main83391-10070iEP71..MTM..CBR198612-198912

NO.1,MARK=120M

main83391-10080iEP71..3D..4F..DX198612-198912

NO.2,W/*52,MARK=350M

main83391-12210iEP71..3FC198801-198912

NO.1,W/*52,MARK=80M

main83391-17010iEP71..3FC;EP71..3D..4F..DX198410-198612

NO.1,W/*52,MARK=80M

main83391-22060iNP7#198612-198912

NO.3,W/*COS,FUEL FILTER

sub83391-35040

83399BRACKET, VACUUM SWITCH

main83399-10020iEP71..CBR198410-198912

NO.1

main83399-10030iEP71..3D..4F..DX198410-198912

NO.2

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEP7#,NP7#198410-198912

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iEP7#198410-198601

sub83530-14040

main83530-14030iNP7#198612-198912

sub83530-28030

main83530-30050iEP71..TBO198601-198912

sub83530-30051

main83530-30080iEP7#..CBR,EFI198601-198912

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iEP7#,NP7#..MTM198410-198912

84540SWITCH ASSY, NEUTRAL START

main84540-12160iEP71,NP70..ATM198410-198912

85915RELAY, MAIN

main90987-02006iEP7#,NP7#198410-198912

85916RELAY, LIGHT CONTROL

main90987-01003iEP7#,NP7#198410-198912

TAIL

main90987-02006iEP7#,NP7#198410-198912

HEAD

85926RELAY, HEADLAMP DIMMER

main85926-30020iEP71..3D..4F..DX198410-198912

*52

85927RELAY, COOLING FAN

main90987-03001iEP7#,NP7#198410-198912

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12140iEP71198410-198504

main89425-12190iEP71..CBR,EFI198504-198705

main89425-12250iEP71..CBR,EFI198705-198912

main89425-17020iEP71..TBO198601-198912

sub89425-10060

89427SWITCH, TEMPERATURE DETECT

main83430-10010iNP70..4FC198612-198912

main83430-96441iEP76198410-198912

main89427-10020iNP7#..5F198612-198912

main89427-16040iEP71..4FC..TBO198601-198912

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEP7#198410-198912

main89428-15011iNP7#198804-198912

sub89428-32010

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iEP71..CBR198410-198612

main89453-16010iEP71..CBR198612-198912

sub89453-12040

89465SENSOR, OXYGEN

main89465-10010iEP71198410-198912

89615SENSOR, KNOCK CONTROL

main89615-10020iEP71..TBO198601-198912

89620IGNITER ASSY

main89620-10100iEP71..TBO198601-198912

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8599910030BRACKET, COMBINATION RELAY

main85999-10030

9011906157

main90119-06157

9043018007

main90430-18007

9098901051

main90989-01051

9165140620

main91651-40620

91651A0612

main91651-A0612

91651F0616

main91651-F0616

32 parts on this diagram · 7 diagrams in section
