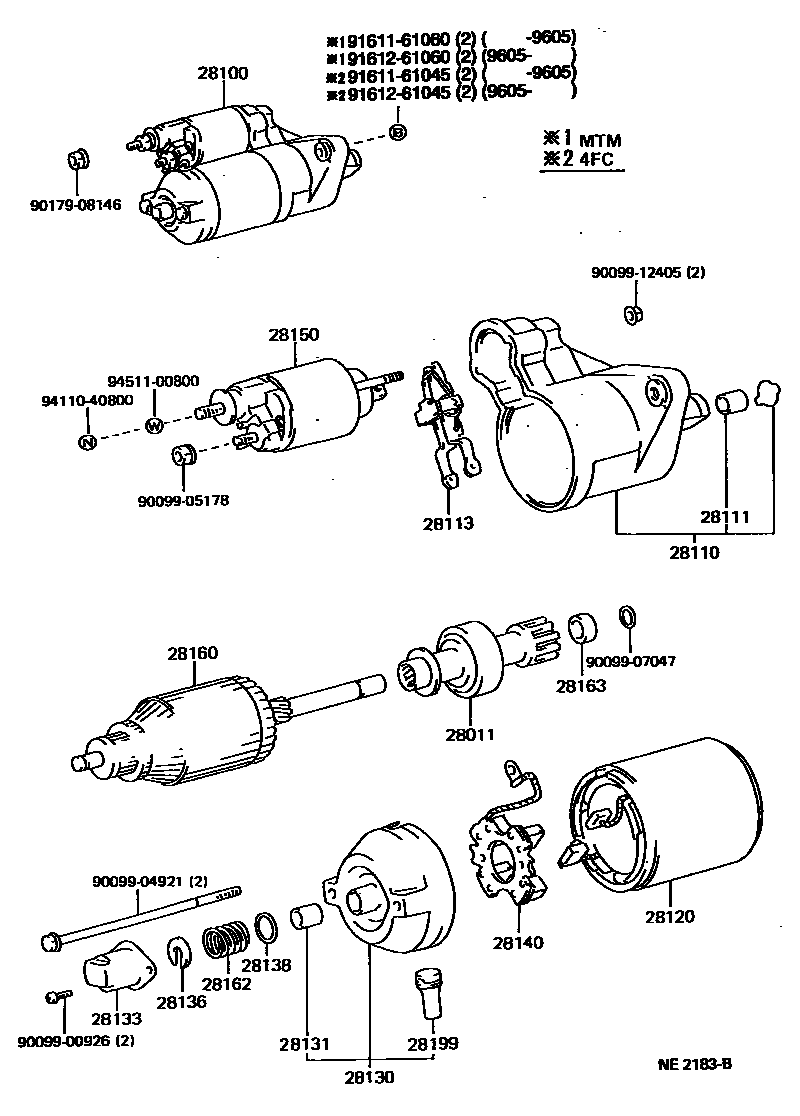

Toyota STARLET — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28111BUSH(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28131BUSH, COMMUTATOR END FRAME
28133COVER, BEARING(FOR END FRAME)
28136PLATE, STARTER LOCK
28138RUBBER(FOR STARTER BEARING COVER)
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28162SPRING, STARTER BRAKE
28163NUT OR COLLAR, PINION STOP, STARTER
28199COVER, STARTER
9009900926
main90099-00926
9009904921
main90099-04921
9009905178
main90099-05178
9009907047
main90099-07047
9009912405
main90099-12405
9017908146
main90179-08146
9161161045
main91611-61045
9161161060
main91611-61060
9161261045
main91612-61045
9161261060
main91612-61060
9411040800
main94110-40800
9451100800
main94511-00800
29 parts on this diagram · 6 diagrams in section
STARTER for Toyota STARLET
This section contains 76 genuine Toyota parts for the STARTER system of the Toyota STARLET. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
