Toyota STARLET — RADIATOR GRILLE

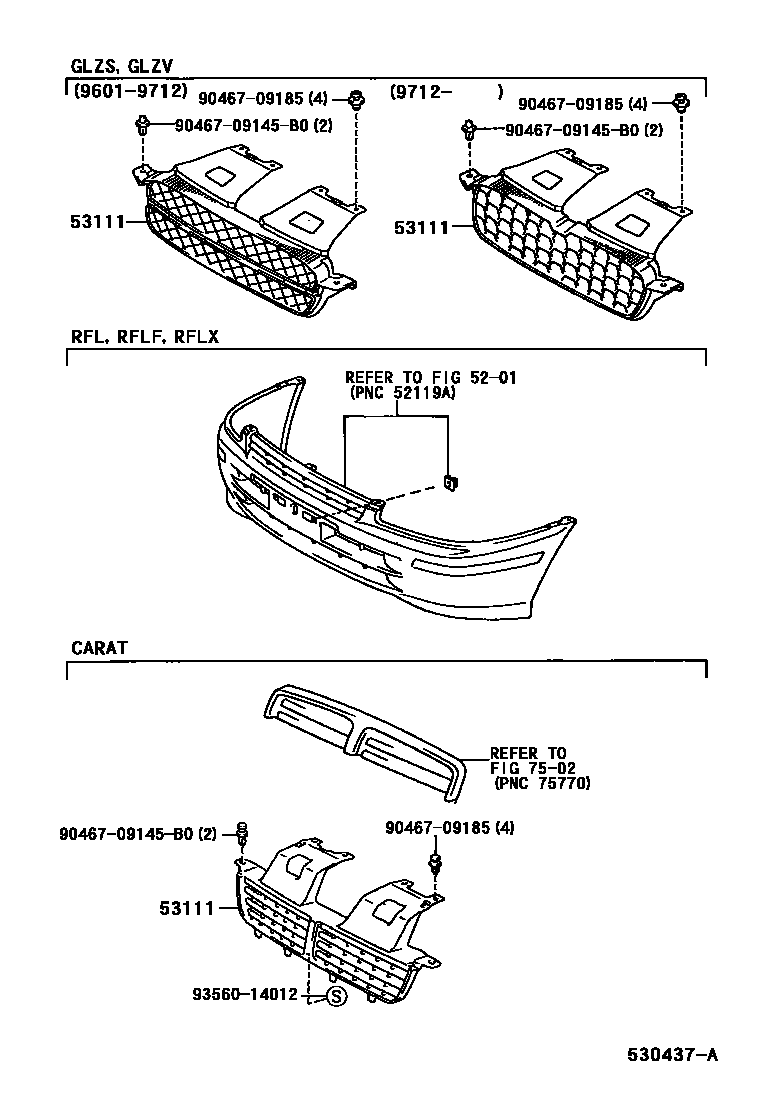

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53111-10440i199601-199712

main53111-10450i199704-199907

main53111-10460i199712-199907

main53111-10470-A0i199810-199907

SUPER WHITE 2,040

main53111-10470-C0i199810-199907

BLACK ME,205

main53111-10470-D0i199810-199907

SUPER RED II,3E5

main53111-10470-E0i199810

ORANGE,4Q1

7502FRONT MOULDING

→ Go to FIG 75-02

9046709145B0

main90467-09145B0

9046709185

main90467-09185

9356014012

main93560-14012

6 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota STARLET

This section contains 6 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota STARLET. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE, RADIATOR, FRONT MOULDING.
