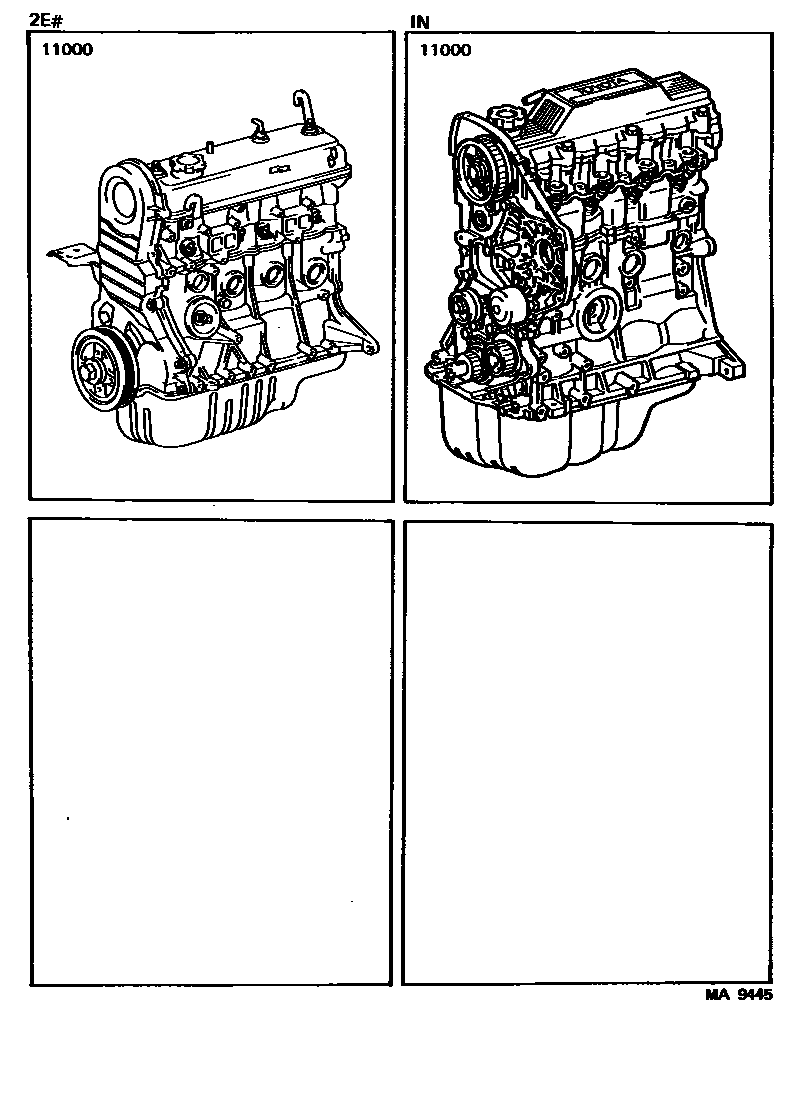

Toyota STARLET — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-11060i2ELU..EP71198410-198604

sub12511-11010

sub16100-19195

sub16381-11020

sub44311-10011

sub44319-10011

sub88358-10011

sub88431-10041

sub88444-10031

sub90105-08100

sub91611-60820

main19000-11061i2ELJ..EP76198604-198912

main19000-11070i2ELU..EP71..3D..4F..DX198410-198604

*52

sub12511-11010

sub16100-19195

sub16381-11030

sub44311-10011

sub44319-10011

sub88358-10011

sub88431-10041

sub88444-10031

sub90105-08100

sub91611-60820

main19000-11071i2ELU..EP71..3D..4F..DX198604-198912

*52

main19000-11080i2ELJ..EP76198410-198604

main19000-11110i2EELU..EP71198410-198604

sub12511-11010

sub16100-19126

sub16381-11020

sub16381-11030

sub44311-10011

sub44319-10011

sub88358-10011

sub88431-10041

sub88444-10031

sub90105-08100

sub91611-60820

main19000-11111i2EELU..EP71198604-198912

main19000-11160i2ETELU..EP71..5F198601-198604

sub12511-11010

sub16100-19126

sub16381-11030

sub44311-10021

sub44319-10011

sub88358-10011

sub88431-10051

sub88444-10041

sub90105-08100

sub91611-60820

main19000-11161i2ETELU..EP71198604-198912

main19000-11170i2ETELU..EP71..4FC198601-198604

main19000-55020i1N..NP7#198612-198808

sub19000-55021

main19000-55060i1N..NP7#198808-198912

sub19000-55061

1 parts on this diagram · 1 diagram in section
