Toyota STARLET — MOUNTING

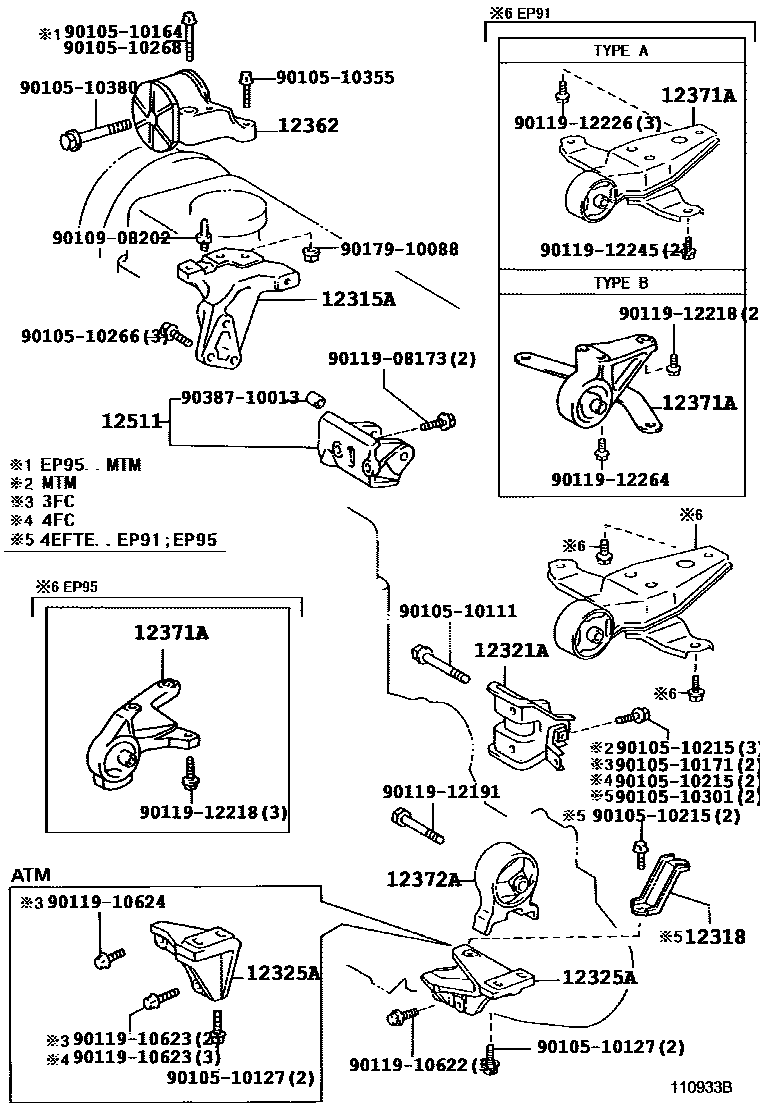

Parts diagram

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i199601

main12315-55031i199601

12318STAY, ENGINE MOUNTING, LH

main12318-11030i199601

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i199601-199604

main12303-11051i199604-199708

main12303-11100i199708-199907

main12303-55040i199601-199607

main12303-55041i199607-199709

main12303-55042i199709

main12321-11100i199601-199605

main12321-11101i199605-199907

main12321-11110i199601-199907

main12321-11150i199601-199907

main12321-11160i199601-199907

main12321-11230i199601-199907

main12321-55051i199601

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i199601

main12325-11030i199601

main12325-11060i199601

main12325-11100i199601

main12325-11110i199601

main12325-55010i199601

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11260i199601-199712

main12362-11280i199601

main12362-11300i199712

main12362-55060i199601

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11270i199601-199907

main12371-11280i199601-199907

main12371-11330i199601-199907

main12371-11390i199601-199907

main12371-11470i199601-199907

main12371-11560i199601-199907

main12371-11570i199601-199907

main12371-11580i199601-199907

main12371-55040i199601-199610

main12371-55041i199610

main12371-55100i199601-199702

main12371-55101i199702

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-10040i199601

main12372-11151i199601

main12372-11160i199601

main12372-11200i199601

main12372-11330i199601

main12372-11340i199601

main12372-55050i199601

main12372-55060i199601

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i199601

main12511-55010i199601

9010510111

main90105-10111

9010510127

main90105-10127

9010510164

main90105-10164

9010510171

main90105-10171

9010510215

main90105-10215

9010510266

main90105-10266

9010510268

main90105-10268

9010510301

main90105-10301

9010510355

main90105-10355

9010510380

main90105-10380

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011910624

main90119-10624

9011912191

main90119-12191

9011912218

main90119-12218

9011912226

main90119-12226

9011912245

main90119-12245

9011912264

main90119-12264

9017910088

main90179-10088

9038710013

main90387-10013

30 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota STARLET

This section contains 35 genuine Toyota parts for the MOUNTING system of the Toyota STARLET. Key components include: BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE).
