Toyota STARLET — MOUNTING

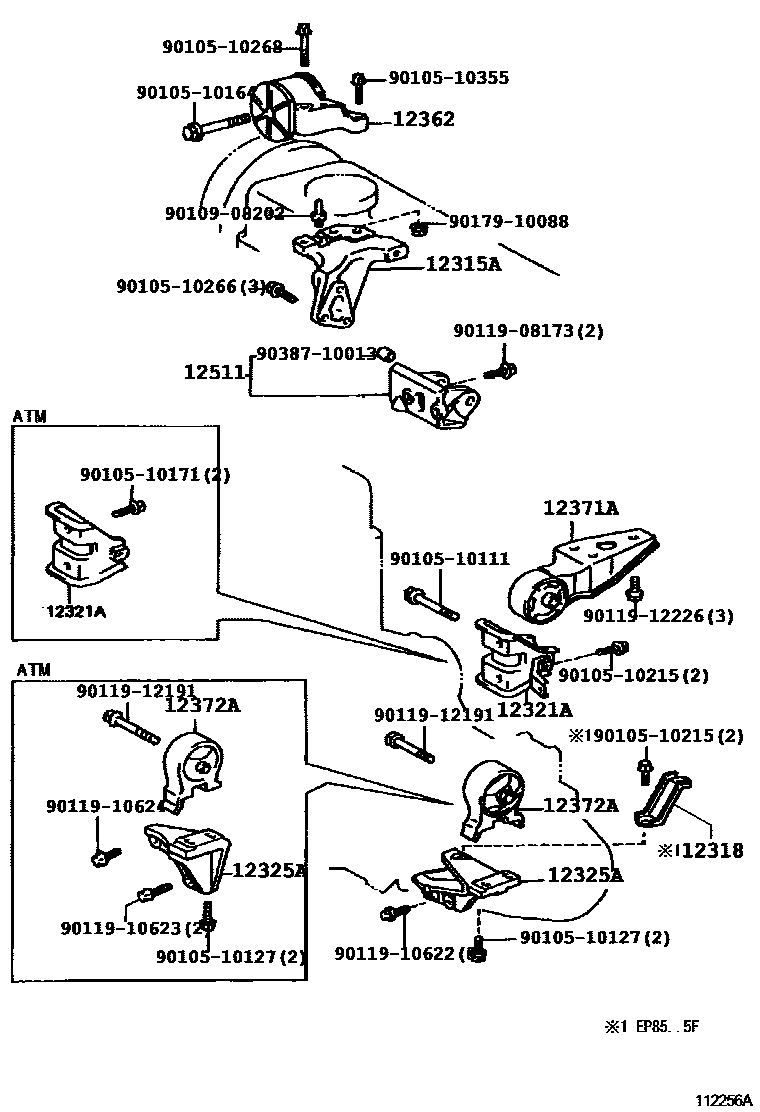

Parts diagram

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i198912-199601

main12315-55030i198912-199201

main12315-55031i199201-199509

12318STAY, ENGINE MOUNTING, LH

main12318-11030i198912-199601

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11090i198912-199601

main12321-11100i198912-199601

main12321-11110i198912-199601

main12321-11150i199008-199601

main12321-11160i199008-199601

main12321-11230i199201-199601

main12321-55040i198912-199008

main12321-55041i199008-199509

main12321-55050i199201-199509

main12321-55051i199104-199201

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i198912-199601

main12325-11030i198912-199601

main12325-11060i198912-199601

main12325-11100i199008-199601

main12325-11110i199008-199601

main12325-55010i198912-199509

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11110i198912-199601

main12362-11170i199008-199601

main12362-55030i198912-199201

main12362-55031i199201-199509

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11240i198912-199601

main12371-11260i198912-199008

main12371-11270i198912-199601

main12371-11280i198912-199601

main12371-11320i199008-199201

main12371-11330i199008-199601

main12371-11390i199201-199601

main12371-11420i199008-199601

main12371-11440i199201-199212

main12371-11470i199212-199601

main12371-55040i198912-199509

main12371-55050i198912-199405

main12371-55051i199405-199509

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-10040i199406-199601

main12372-11140i199201-199406

main12372-11150i198912-199310

main12372-11151i199310-199601

main12372-11160i198912-199601

main12372-11200i199008-199601

main12372-11260i199201-199406

main12372-55050i198912-199509

main12372-55060i198912-199509

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i198912-199601

main12511-55010i198912-199509

9010510111

main90105-10111

9010510127

main90105-10127

9010510164

main90105-10164

9010510171

main90105-10171

9010510215

main90105-10215

9010510266

main90105-10266

9010510268

main90105-10268

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011910624

main90119-10624

9011912191

main90119-12191

9011912226

main90119-12226

9017910088

main90179-10088

9038710013

main90387-10013

25 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota STARLET

This section contains 32 genuine Toyota parts for the MOUNTING system of the Toyota STARLET. Key components include: BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE).
