Toyota STARLET — MIRROR

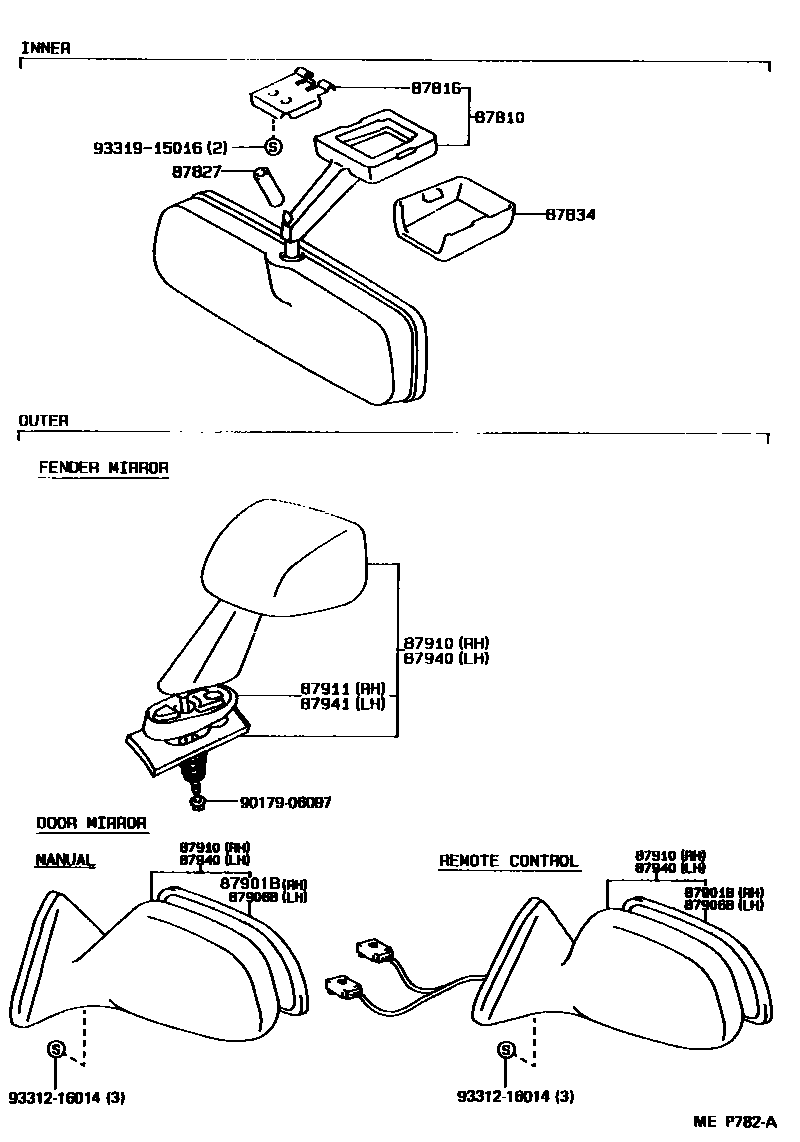

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-10200-03i198912-199601

main87810-10200-06i198912-199201

main87810-10200-E0i199201-199405

main87810-10210-03i199505

main87810-10210-04i198912-199201

main87810-10210-06i198912-199201

main87810-10210-E0i199209-199308

main87810-10220-03i198912-199601

ICHIKOH,GRAY,GRAY,TRIM1#

main87810-10220-06i198912-199201

ICHIKOH(IKI),SABLE,SABLE,TRIM4#

main87810-10220-E0i199201-199405

ICHIKOH(IKI),OAK,OAK,TRIM4#

main87810-10230-03i198912-199601

ICHIKOH,GRAY,GRAY,TRIM1#

main87810-10230-04i199110-199112

main87810-10230-06i198912-199201

ICHIKOH(IKI),SABLE,SABLE,TRIM4#

main87810-10230-E0i199312-199405

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198912-199601

MIRROR---MURAKAMI

main74372-32010i198912-199601

MIRROR---IKI

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-90A00i198912-199601

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-10010-03i198912-199110

GRAY,TRIM1#; GRAY,TRIM1#,8#

main87834-10010-06i198912-199201

SABLE,TRIM4#

main87834-10010-A0i199201-199405

IVORY,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-10560i198912-199201

main87931-1A210i198912-199201

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-10560i198912-199201

main87961-1A290i198912-199201

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-10450i198912-199405

main87910-10460-02i198912-199201

SUPER RED 2,3E5

main87910-10460-03i198912-199201

BLUISH GRAY METALLIC,185

main87910-10460-04i198912-199201

GRAYISH BLUE,8H1

main87910-10460-05i199008-199201

BEIGE,4L5

main87910-10460-07i198912-199201

BLACKISH GREEN M,6L2

main87910-10460-08i198912-199201

SUPER WHITE 2,040

main87910-10460-09i198912-199201

YELLOW,541

main87910-10460-12i198912-199201

RED MICA,3H4

main87910-10460-13i198912-199201

LIGHT BLUISH GRAY,186

main87910-10461-35i199201-199405

SUPER RED 2,3E5

main87910-10461-A0i199306-199308

main87910-10461-B0i199201-199405

BLUISH GRAY M.,182

main87910-10461-B1i199405-199601

SILVER M,199

main87910-10461-C0i199201-199601

BLACK M.,205

main87910-10461-D0i199306-199308

main87910-10461-G0i199201-199405

GREEN M.,6M6

main87910-10461-H0i199405-199601

TURQUOISE M M,746

main87910-10461-J0i199201-199405

DARK BLUE MICA M.,8G5

main87910-10461-J1i199405-199601

DARK BLUE M M,8K0

main87910-10470-02i198912-199201

main87910-10470-03i198912-199201

main87910-10470-04i198912-199201

main87910-10470-07i198912-199201

main87910-10470-08i198912-199201

main87910-10470-09i198912-199201

YERROW,541

main87910-10470-12i198912-199201

main87910-10470-13i198912-199201

main87910-10471-A0i199201-199601

SUPER WHITE 2,040

main87910-10471-B0i199201-199405

BLUISH GRAY M.,182

main87910-10471-B1i199405-199601

SILVER M,199

main87910-10471-D0i199201-199405

WINE RED MICA,3J8

main87910-10471-D1i199405-199601

RED MICA,3K4

main87910-10471-G0i199201-199405

GREEN M.,6M6

main87910-10471-H0i199405-199601

TURQUOISE M M,746

main87910-10471-J0i199201-199405

DARK BLUE MICA M.,8G5

main87910-10471-J1i199405-199601

DARK BLUE M M,8K0

main87910-10550i198912-199201

main87910-10551i199405-199601

main87910-10560i198912-199201

main87910-10561i199201-199405

main87910-10630i199201-199601

main87910-10660-A0i199209-199308

CAN,SUPER WHITE 2,040

main87910-10660-B0i199308-199312

main87910-10660-B1i199405-199601

main87910-10660-C0i199312-199405

main87910-10660-D0i199308-199312

main87910-10660-D1i199405-199601

main87910-10660-G0i199408-199504

main87910-10660-H0i199405-199601

main87910-10660-J0i199308-199312

main87910-10660-J1i199405-199601

main87910-10660-J2i199408-199504

main87910-10670-A0i199312-199405

main87910-10670-B0i199308-199312

main87910-10670-B1i199405-199601

main87910-10670-C0i199405-199601

main87910-10670-D0i199312-199405

main87910-10670-D1i199405-199601

main87910-10670-H0i199405-199601

main87910-10670-J0i199312-199405

main87910-10670-J1i199405-199601

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-10100i198912-199601

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-10450i198912-199405

main87940-10460-02i198912-199201

SUPER RED 2,3E5

main87940-10460-03i198912-199201

BLUISH GRAY METALLIC,185

main87940-10460-04i198912-199201

GRAYISH BLUE,8H1

main87940-10460-05i199008-199201

BEIGE,4L5

main87940-10460-07i198912-199201

BLACKISH GREEN M,6L2

main87940-10460-08i198912-199201

SUPER WHITE 2,040

main87940-10460-09i198912-199201

YELLOW,541

main87940-10460-12i198912-199201

RED MICA,3H4

main87940-10460-13i198912-199201

LIGHT BLUISH GRAY,186

main87940-10461-35i199201-199405

SUPER RED 2,3E5

main87940-10461-A0i199306-199308

main87940-10461-B0i199201-199405

BLUISH GRAY M.,182

main87940-10461-B1i199405-199601

SILVER M,199

main87940-10461-C0i199201-199601

BLACK M.,205

main87940-10461-D0i199306-199308

main87940-10461-G0i199201-199405

GREEN M.,6M6

main87940-10461-H0i199405-199601

TURQUOISE M M,746

main87940-10461-J0i199201-199405

DARK BLUE MICA M.,8G5

main87940-10461-J1i199405-199601

DARK BLUE M M,8K0

main87940-10470-02i198912-199201

main87940-10470-03i198912-199201

main87940-10470-04i198912-199201

main87940-10470-07i199008-199201

BEIGE METALLIC,4L5

main87940-10470-08i198912-199201

main87940-10470-09i198912-199201

YELLOW,541

main87940-10470-12i198912-199201

main87940-10470-13i198912-199201

main87940-10471-A0i199201-199601

SUPER WHITE 2,040

main87940-10471-B0i199201-199405

BLUISH GRAY M.,182

main87940-10471-B1i199405-199601

SILVER M,199

main87940-10471-D0i199201-199405

WINE RED MICA,3J8

main87940-10471-D1i199405-199601

RED MICA,3K4

main87940-10471-G0i199201-199405

GREEN M.,6M6

main87940-10471-H0i199405-199601

TURQUOISE M M,746

main87940-10471-J0i199201-199405

DARK BLUE MICA M.,8G5

main87940-10471-J1i199405-199601

DARK BLUE M M,8K0

main87940-10550i198912-199201

main87940-10551i199201-199405

main87940-10560i198912-199201

main87940-10561i199201-199405

main87940-10630i199201-199601

main87940-10660-A0i199308-199312

main87940-10660-B0i199308-199312

main87940-10660-B1i199405-199601

main87940-10660-C0i199209-199308

CAN,BLACK M,205

main87940-10660-D0i199312-199405

main87940-10660-D1i199405-199601

main87940-10660-G0i199408-199504

main87940-10660-H0i199405-199601

main87940-10660-J0i199312-199405

main87940-10660-J1i199405-199601

main87940-10660-J2i199408-199504

main87940-10670-A0i199312-199405

main87940-10670-B0i199308-199312

main87940-10670-B1i199405-199601

main87940-10670-C0i199312-199405

main87940-10670-D0i199209-199308

CAN,WINE RED MICA,3J8

main87940-10670-D1i199405-199601

main87940-10670-H0i199405-199601

main87940-10670-J0i199312-199405

main87940-10670-J1i199405-199601

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-10100i198912-199601

9017906097

main90179-06097

9331216014

main93312-16014

9331915016

main93319-15016

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota STARLET

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota STARLET. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
