Toyota STARLET — METER

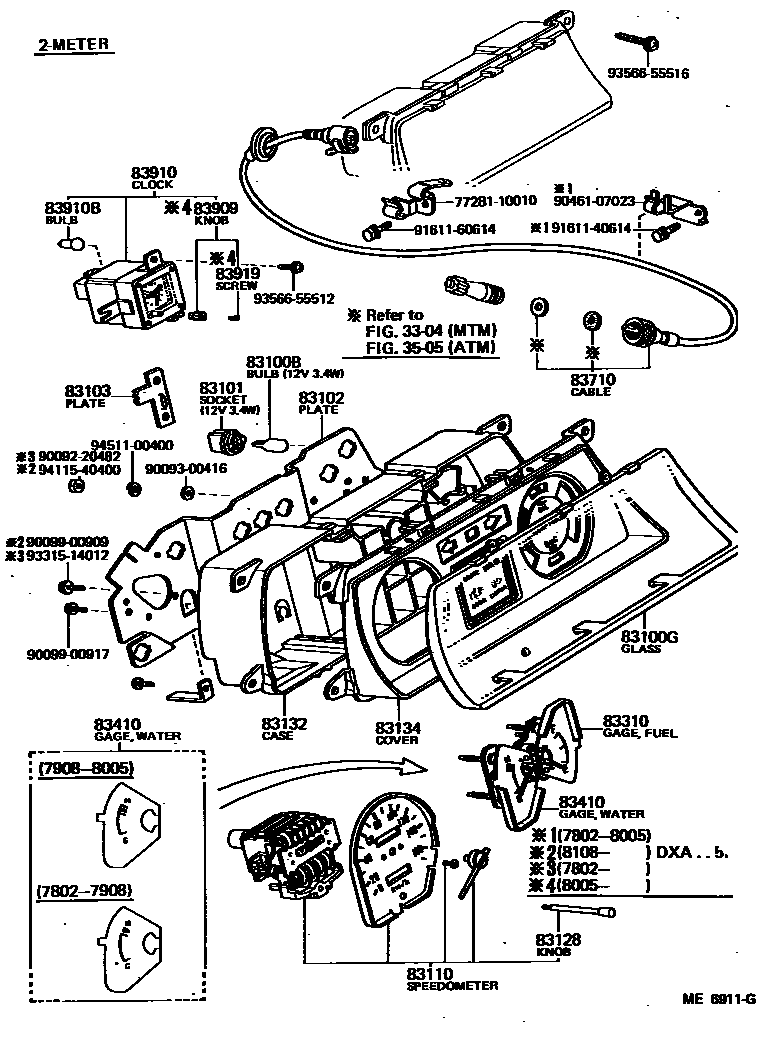

Parts diagram

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

83100BBULB, COMBINATION METER, NO.1

main83109-14030×4i198208-198409

main90981-11018×4i197807-198208

main99132-12034×14i197802-198409

83100GGLASS, COMBINATION METER

main83138-10300i198005-198208

4-METER

main83138-10310i197802-198208

2-METER

main83138-10330i198005-198208

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×14i197802-198409

12V 3.4W

main83101-14040×4i197807-198208

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-10010i198005-198208

4-METER

main83247-10020i197802-197906

2-METER

main83247-10070i197906-198201

main83247-10071i198201-198208

main83247-10210i198108-198208

main83247-10230i198208-198409

W/*CEW

main83247-10250i198208-198409

main83247-10270i198208-198409

W/*CEW

main83247-10290i198208-198409

main83247-10410i198208-198409

main83247-10430i198208-198409

main83247-10470i198208-198409

main83247-10490i198208-198409

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-10050i197802-197906

2-METER

main83247-10060i197802-197906

4-METER

83110SPEEDOMETER ASSY

main83110-10320i198005-198208

main83110-10330i198005-198208

main83110-10540i198108-198208

main83110-10560i198208-198409

main83110-10570i198208-198409

main83110-10580i198208-198409

main83110-10590i198208-198409

main83110-10600i198208-198409

main83241-10010i197802-198005

main83241-10020i197802-198005

83128KNOB, TRIP COUNTER

main83128-14820i197802-198208

83132CASE, COMBINATION METER

main83132-10010i197802-198005

4-METER

main83132-10011i198005-198208

4-METER

main83132-10020i197802-198005

2-METER

main83132-10021i198005-198208

2-METER

main83132-10070i198208-198409

main83132-10090i198208-198409

main83132-10110i198208-198409

main83132-10130i198208-198409

main83132-10190i198208-198409

main83132-10210i198208-198409

main83132-10250i198208-198409

main83132-10270i198208-198409

83134COVER, COMBINATION METER, NO.1

main83133-10010i197802-197807

W/4-METER

main83133-10020i197802-198005

W/O *OM

main83133-10021i198005-198208

W/O *OM

main83133-10030i197802-198005

W/*OM,4-METER & FUEL WARNING

main83133-10031i198005-198208

W/*OM

main83133-10040i197802-198005

main83133-10041i198005-198208

main83133-10050i197802-198005

2-METER

main83133-10051i198005-198208

main83133-10080i197810-198005

main83133-10081i198005-198201

main83133-10090i197810-198005

main83133-10091i198005-198201

main83133-10310i198108-198208

main83133-10330i198201-198208

83310GAGE ASSY, FUEL RECEIVER

main83243-10010i197802-198005

4-METER

main83243-10011i198005-198208

4-METER

main83243-10020i197802-198005

2-METER

main83243-10021i198005-198208

2-METER

main83243-10070i198005-198201

2-METER

main83243-10090i198208-198409

main83243-10110i198208-198409

main83243-10150i198208-198409

main83243-10170i198208-198409

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-10010i197802-197908

4-METER

main83244-10011i197908-198005

4-METER

main83244-10012i198005-198208

4-METER

main83244-10020i197802-197908

2-METER

main83244-10021i197908-198005

2-METER

main83244-10022i198005-198208

2-METER

main83244-10070i198208-198409

main83244-10090i198208-198409

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-10190i198208-198210

L=1500

main83710-10191i198210-198409

L=1475

main83710-10210i198210-198409

main83710-19445i197802-198005

L=1500

main83710-19446i198108-198208

L=1500

main83710-19565i198108-198208

83909KNOB, CLOCK

main83909-10041i198007-198208

main83909-12230i198208-198409

main83909-14012i198005-198007

83910CLOCK ASSY

main83910-10030i197802-198005

main83910-10040i197802-198005

main83910-10041i198007-198208

main83910-10090i198301-198303

LISSE SPECIAL

main83910-10110i198208-198409

DIGITAL

83910BBULB, CLOCK INDICATOR

main99132-11034i197802-198208

83919SCREW, CLOCK

main83919-12230i198208-198409

main83919-14012i198005-198208

7728110010BRACKET, FUEL MAIN TUBE, NO.1

main77281-10010

9009220482

main90092-20482

9009300416

main90093-00416

9009900909

main90099-00909

9009900917

main90099-00917

9046107023

main90461-07023

9161140614

main91611-40614

9161160614

main91611-60614

9331514012

main93315-14012

9356655512

main93566-55512

9356655516

main93566-55516

9411540400

main94115-40400

9451100400

main94511-00400

31 parts on this diagram · 5 diagrams in section

METER for Toyota STARLET

This section contains 37 genuine Toyota parts for the METER system of the Toyota STARLET. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), SPEEDOMETER DRIVEN GEAR (ATM), BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
