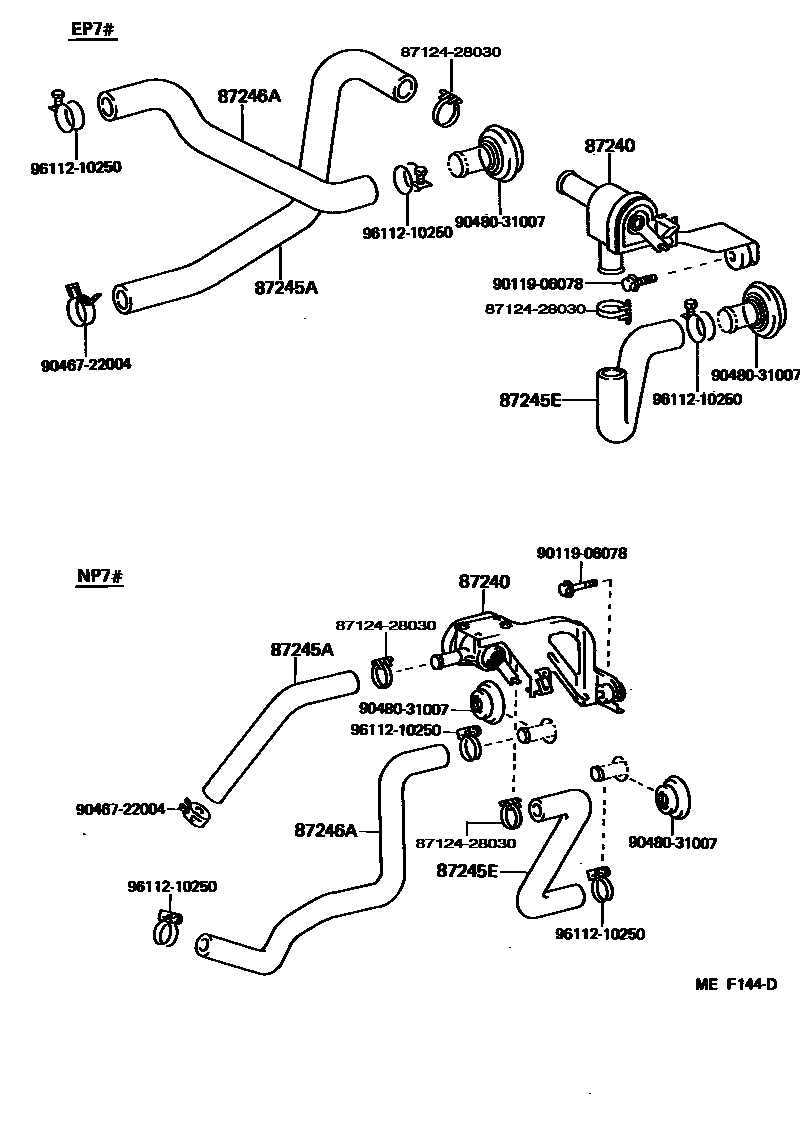

Toyota STARLET — HEATING & AIR CONDITIONING - WATER PIPING
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
8712428030CLAMP, HEATER
main87124-28030
9011906078
main90119-06078
9046722004
main90467-22004
9048031007
main90480-31007
9611210250
main96112-10250
9 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota STARLET
This section contains 9 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota STARLET. Key components include: VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET A, CLAMP, HEATER.
