Toyota STARLET — HEATING & AIR CONDITIONING - SET

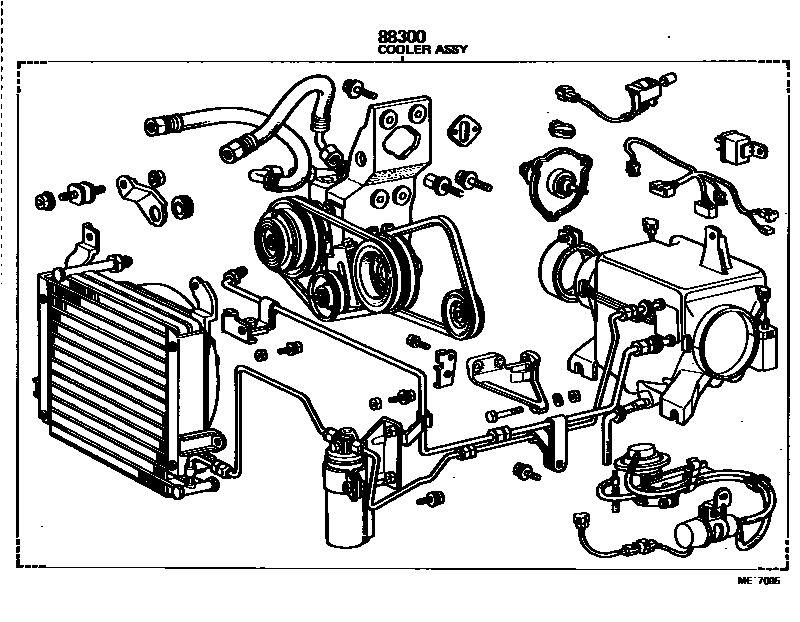

88300COOLER & ACCESSORY ASSY

main88300-10050i197802-197903

main88300-10051i197903-198005

main88300-10052i198008-198108

main88300-10053i198108-198208

main88300-10090i198008-198108

main88300-10110i198208-198403

W/ECONO MODE,COMPRESSOR:6P127

main88300-10120i198208-198403

W/ECONO MODE

main88300-10200i198305-198405

W/ECONO MODE,COMPRESSOR:TV10

main88300-96440i197810-198005

main88300-96441i198005-198201

main88300-96442i198201-198208

main88300-96443i198208-198403

W/ECONO MODE

1 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - SET for Toyota STARLET

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota STARLET. Key components include: COOLER & ACCESSORY ASSY, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
