Toyota STARLET — FRONT FENDER APRON & DASH PANEL

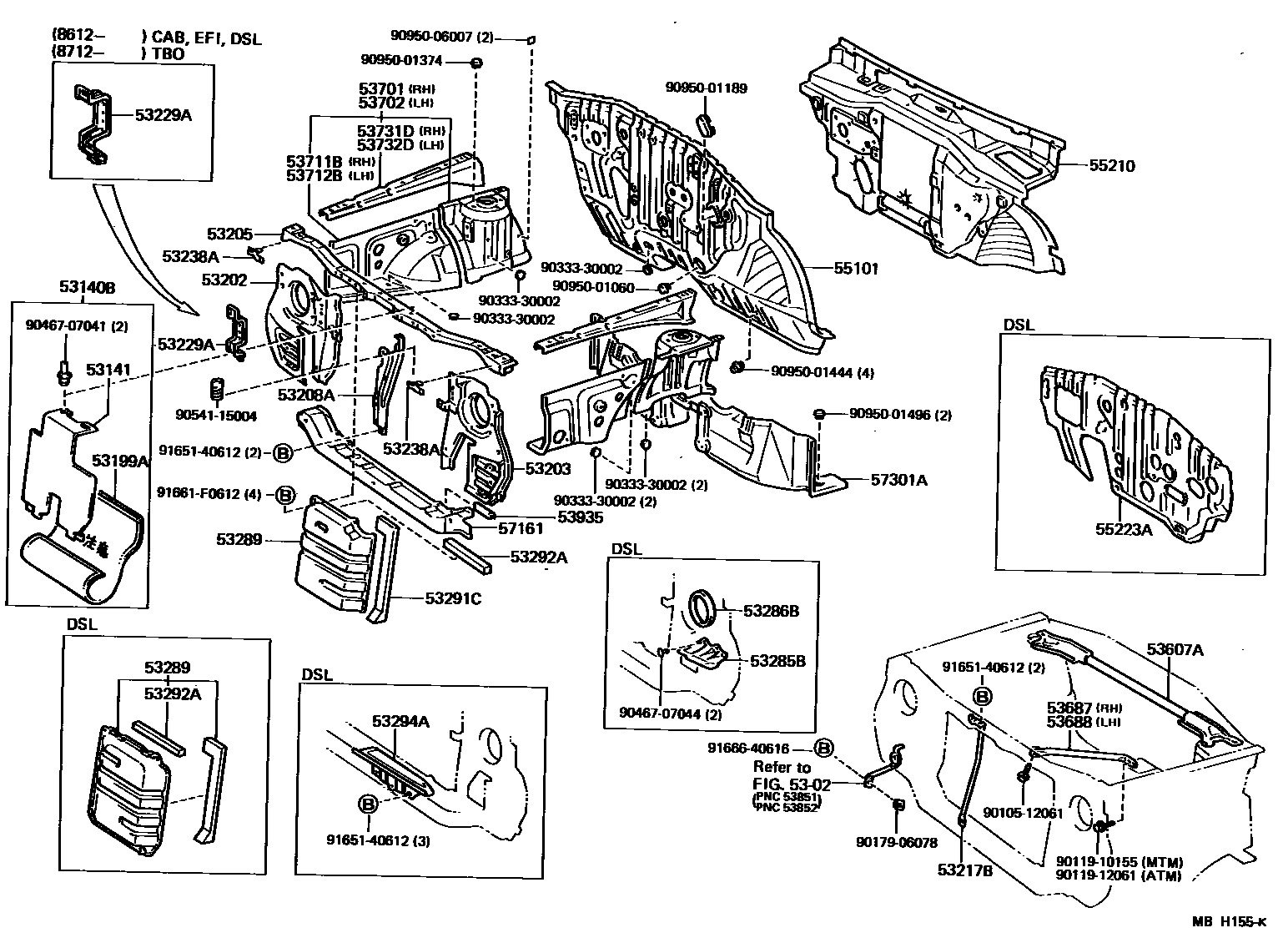

Parts diagram

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53140BCOVER ASSY, RADIATOR

main53140-10010i198808-198912

COLD SPEC

53141COVER, RADIATOR

main53141-10010i198808-198912

COLD SPEC

53199ABAG, RADIATOR SHUTTER

main53199-10020i198808-198912

COLD SPEC

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10090i198410-198607

main53202-10100i198612-198912

main53202-10110i198601-198912

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10130i198410-198601

main53203-10131i198601-198607

main53203-10150i198607-198912

main53203-10160i198612-198912

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-10900i198410-198601

main53216-10901i198601-198612

main53216-10902i198601-198612

main53216-10903i198612-198912

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10030i198410-198607

main53208-10040i198607-198612

main53208-10050i198612-198912

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-10060i198601-198912

53229ABRACKET, RADIATOR GRILLE MOUNTING

main53105-10010i198612-198912

RH

main53105-10020i198712-198912

RH

main53106-10010i198612-198912

LH

main53106-10020i198712-198912

LH

main53223-10050i198410-198612

RH

main53224-10020i198612-198712

LH

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-10030i198612-198912

RH

main53239-10020i198612-198912

LH

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-10010i198612-198912

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-10010i198612-198912

53289COVER, RADIATOR SIDE BAFFLE

main53289-10030i198410-198912

main53289-10040i198601-198912

main53289-10060i198601-198912

COLD SPEC

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-10040i198506-198912

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-10020i198608-198912

53294ASEAL, COOL AIR INTAKE PIPE

main53295-10020i198612-198912

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-10020i198601-198912

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10010i198601-198912

main53687-10020i198601-198912

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53688-10010i198601-198912

main53688-10020i198601-198912

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10290i198410-198911

main53701-10300i198410-198912

W/POWER STEERING

main53701-10310i198612-198912

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10330i198410-198912

main53702-10340i198612-198912

53711BAPRON, FRONT FENDER, FRONT RH

main53711-10120i198410-198912

53712BAPRON, FRONT FENDER, FRONT LH

main53712-10190i198410-198912

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-10040i198410-198912

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-10040i198410-198912

53935PANEL SUB-ASSY,FRONT END, RH

main53935-10010×2i198808-198912

COLD SPEC

55101PANEL SUB-ASSY, DASH

main55101-10921i198410-198912

main55101-10922i198410-198912

main55101-10923i198410-198912

main55101-10929i198410-198912

main55101-10934i198601-198912

main55101-10935i198601-198912

main55101-10937i198612-198912

main55101-10938i198612-198912

55210INSULATOR ASSY, DASH PANEL

main55210-10110i198410-198912

main55210-10120i198410-198912

main55210-10150i198612-198912

main55210-10160i198612-198912

55223AINSULATOR, DASH PANEL, OUTER

main55223-10020i198612-198912

57161CROSSMEMBER, FRONT

main57161-10900i198410-198504

main57161-10901i198504-198912

main57161-10905i198601-198710

main57161-10907i198612-198912

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10030i198410-198512

main57301-10031i198512-198601

main57301-10032i198601-198912

main57301-10050i198601-198912

9010512061

main90105-12061

9011910155

main90119-10155

9011912061

main90119-12061

9017906078

main90179-06078

9033330002

main90333-30002

9046707041

main90467-07041

9046707044

main90467-07044

9054115004

main90541-15004

9095001060

main90950-01060

9095001189

main90950-01189

9095001374

main90950-01374

9095001444

main90950-01444

9095001496

main90950-01496

9095006007

main90950-06007

9165140612

main91651-40612

91661F0612

main91661-F0612

9166640616

main91666-40616

49 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota STARLET

This section contains 49 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota STARLET. Key components include: HOOD & FRONT FENDER, COVER ASSY, RADIATOR, COVER, RADIATOR, BAG, RADIATOR SHUTTER, SUPPORT SUB-ASSY, RADIATOR, RH.
