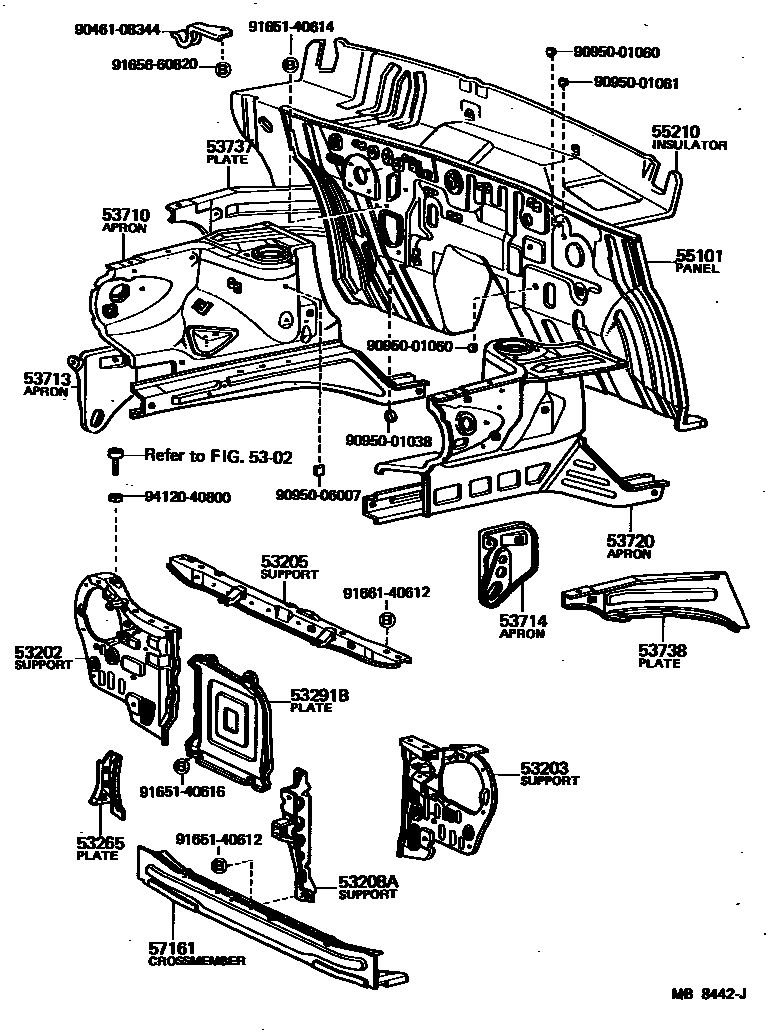

Toyota STARLET — FRONT FENDER APRON & DASH PANEL
5302HOOD & FRONT FENDER
53202SUPPORT SUB-ASSY, RADIATOR, RH
W/URETHANE BUMPER
W/URETHANE BUMPER
53203SUPPORT SUB-ASSY, RADIATOR, LH
W/URETHANE BUMPER
W/URETHANE BUMPER
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53265PLATE, BATTERY CARRIER MOUNTING, NO.2
53291BPLATE, RADIATOR COVER
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
W/URETHANE BUMPER
W/URETHANE BUMPER
W/URETHANE BUMPER
53713APRON, FENDER SIDE, RH
W/URETHANE BUMPER
53714APRON, FENDER SIDE, LH
W/URETHANE BUMPER
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
W/URETHANE BUMPER
W/URETHANE BUMPER
W/URETHANE BUMPER
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
57161CROSSMEMBER, FRONT
9046108344
main90461-08344
9095001038
main90950-01038
9095001060
main90950-01060
9095001061
main90950-01061
9095006007
main90950-06007
9165140612
main91651-40612
9165140614
main91651-40614
9165140616
main91651-40616
9165660820
main91656-60820
9166140612
main91661-40612
9412040800
main94120-40800
27 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota STARLET
This section contains 37 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota STARLET. Key components include: HOOD & FRONT FENDER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
