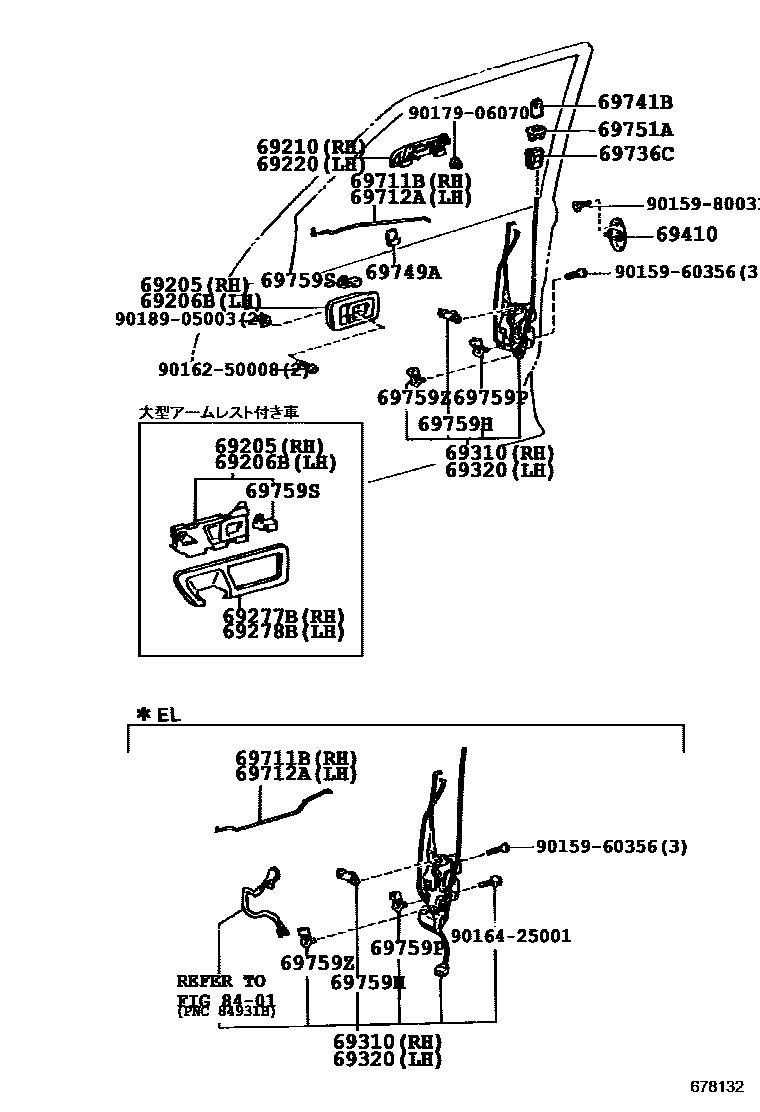

Toyota STARLET — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SABLE,TRIM4#
OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DARK BLUE,TRIM8#
SABLE,TRIM4#
OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
GRAY,TRIM1#
SABLE,TRIM4#
OAK,TRIM4#
BLUE,TRIM8#,PAINTED WHITE
SABLE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
PAINTED WHITE
SHADOW GRAY,TRIM1#
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759PSNAP, DOOR LOCK CONTROL LINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
GRAY
GREEN
69759ZSNAP, DOOR LOCK CONTROL LINK
8401SWITCH & RELAY & COMPUTER
9015960356
main90159-60356
9015980031
main90159-80031
9016250008
main90162-50008
9016425001
main90164-25001
9017906070
main90179-06070
9018905003
main90189-05003
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota STARLET
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota STARLET. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, BEZEL, FRONT DOOR INSIDE HANDLE, RH.
