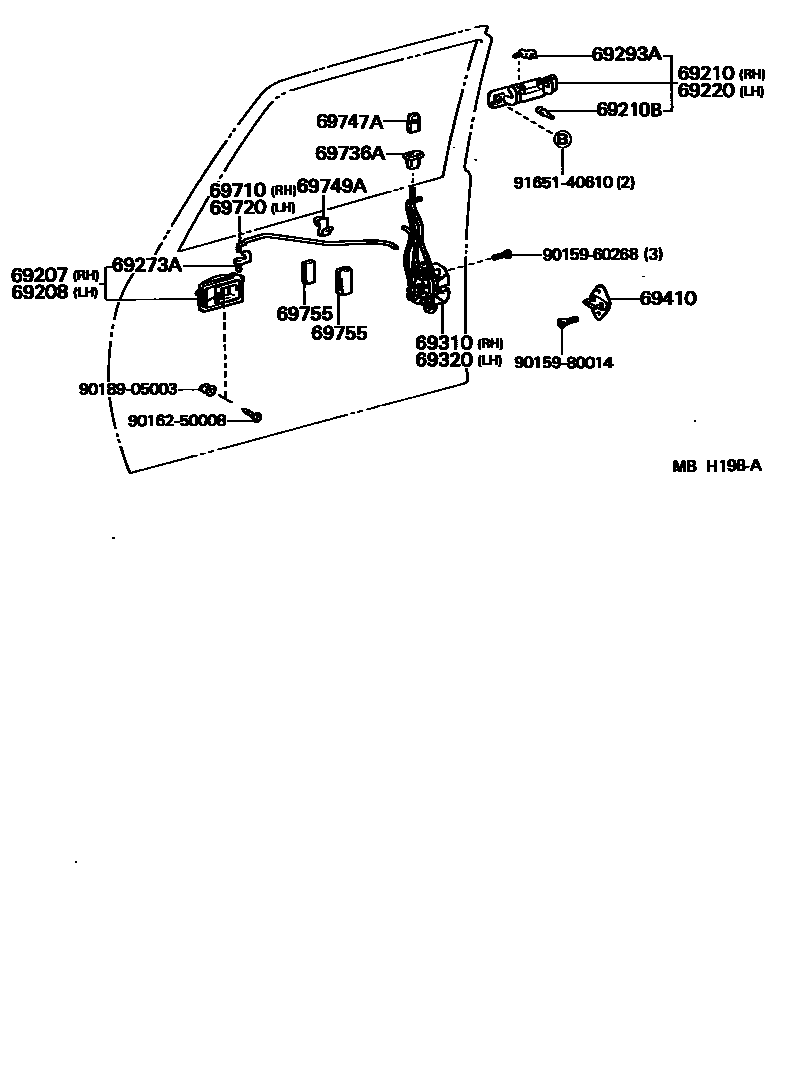

Toyota STARLET — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
LISSE,MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SOLEIL-L,MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,SEPIA BROWN,TRIM4#
GRAY,GRAY,TRIM1#
COLD SPEC,LISSE,MAROON,MAROON,TRIM3#
COLD SPEC,GRAY,GRAY,TRIM1#
COLD SPEC,BLUE,BLUE,TRIM8#
COLD SPEC,BROWN,BROWN,TRIM4#
COLD SPEC,GRAY,GRAY,TRIM1#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LISSE,MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LISSE,MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,SEPIA BROWN,TRIM4#
GRAY,GRAY,TRIM1#
COLD SPEC,LISSE,MAROON,MAROON,TRIM3#
COLD SPEC,GRAY,GRAY,TRIM1#
COLD SPEC,BLUE,BLUE,TRIM8#
COLD SPEC,BROWN,SEPIA BROWN,TRIM4#
COLD SPEC,GRAY,GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
BLACK
BLACK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755SILENCER, FRONT DOOR LOCK LINK
40X80
40X68
9015960268
main90159-60268
9015980014
main90159-80014
9016250008
main90162-50008
9018905003
main90189-05003
9165140610
main91651-40610
21 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota STARLET
This section contains 21 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota STARLET. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
