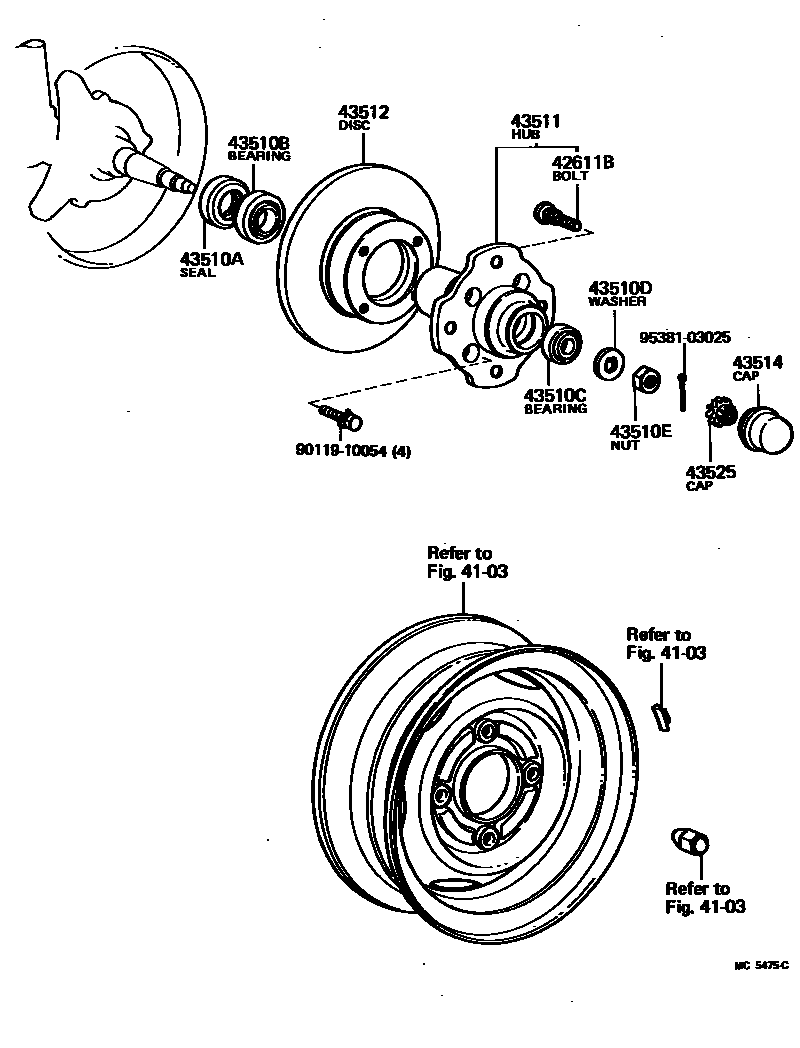

Toyota STARLET — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036×8i197802-198306

main90942-02048×8i198306-198409

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108×2i197802-198409

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26027×2i197802-198409

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2i197802-198409

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2i197802-198409

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2i197802-198409

43511HUB, FRONT AXLE

main43502-10010×2i197802-198409

43512DISC, FRONT

main43512-10040×2i197802-198409

43514CAP, FRONT HUB GREASE

main43514-12010×2i197802-198409

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2i197802-198409

9011910054

main90119-10054

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota STARLET

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota STARLET. Key components include: DISC WHEEL & WHEEL CAP, BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
