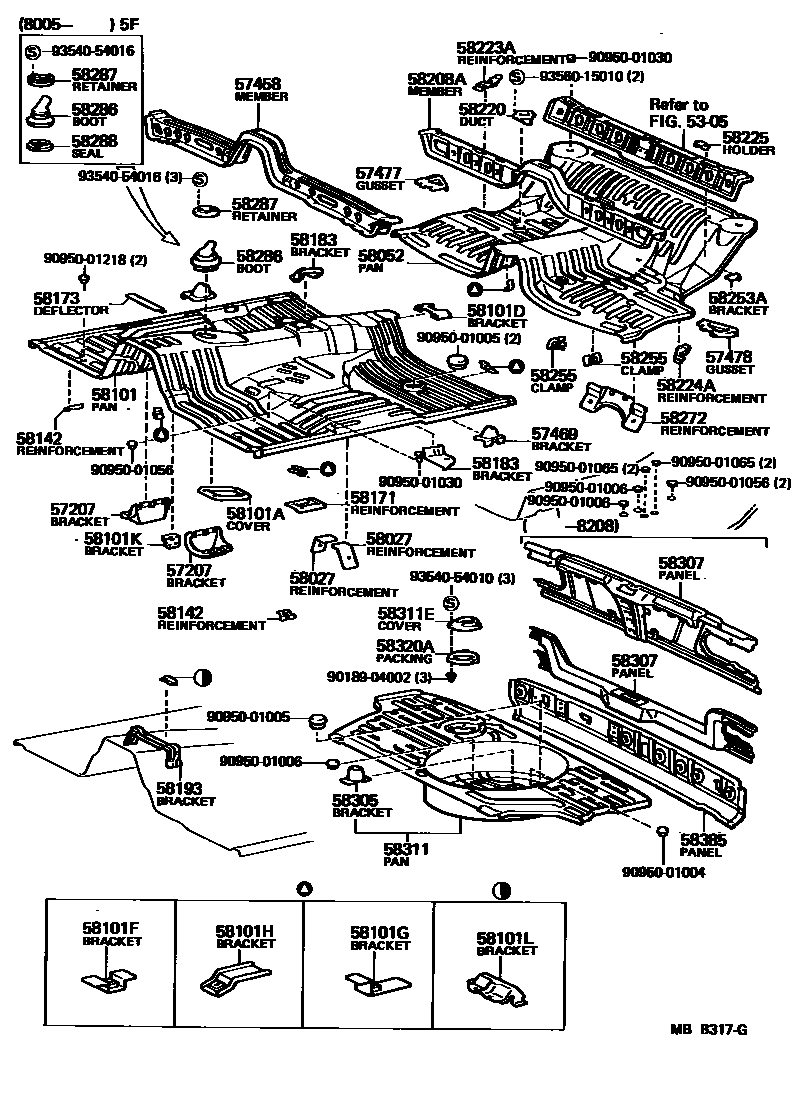

Toyota STARLET — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-10010iKP6#197802-198005

RH

main57207-10011iKP6#198005-198108

RH

main57207-10012iKP6#..MTM198108-198409

RH

main57207-10020iKP61..3FC198108-198409

RH

main57208-10020iKP61197802-198005

LH

main57208-10021iKP61198005-198108

LH

main57208-10022iKP61..MTM198108-198409

LH

main57208-10030iKP62197802-198005

LH

main57208-10031iKP62198005-198108

LH

main57208-10032iKP62198108-198201

LH

main57208-10060iKP61..3FC198108-198409

LH

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-10020iKP6#198007-198104

main57408-10030iKP6#198104-198208

main57408-10040iKP61198208-198409

sub57408-10031

main57451-10030iKP6#197802-198005

sub57408-10010

main57451-10031iKP6#198005-198007

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-10010iKP6#197802-198005

RH

main57468-10011iKP6#198005-198409

RH

main57469-10010iKP6#197802-198005

LH

main57469-10011iKP6#198005-198409

LH

57477GUSSET, REAR SEAT, RH

main57477-10020iKP61..5D197802-198409

57478GUSSET, REAR SEAT, LH

main57478-10020iKP61..5D197802-198409

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58161-10020×2iKP6#197802-198005

main58161-10021×2iKP6#198005-198409

58052PAN SUB-ASSY, CENTER FLOOR

main58211-10110iKP61197802-198005

main58211-10111iKP61..SED198005-198409

main58211-96440iKP6#..4D197810-198409

58101PAN SUB-ASSY, FRONT FLOOR

main58111-10040iKP61..MTM197802-198005

main58111-10041iKP61..MTM198005-198108

main58111-10042iKP6#..MTM198108-198409

main58111-10050iKP61..2FC197802-198005

main58111-10051iKP61..2FC198005-198108

main58111-10052iKP61..3FC198108-198409

main58111-10060iKP62197810-198005

main58111-10061iKP62198005-198108

58101ACOVER, TRANSMISSION AUXILIARY

main58121-10020iKP61..2FC197802-198108

main58121-10021iKP61..3FC198108-198409

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-10020iKP6#197802-198409

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58236-14010×7iKP61..SED198005-198409

58101GBRACKET, MOUNTING, FLOOR, NO.2

main58131-10010iKP61197802-198211

58101HBRACKET, MOUNTING, FLOOR, NO.3

main58132-10010×2iKP61197802-198409

58101KBRACKET, MOUNTING, FLOOR, NO.5

main55388-10050iKP61..5F..DXA198108-198208

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-10020×2iKP6#197802-198409

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12030iKP6#197802-198409

58173DEFLECTOR, FRONT FLOOR STONE

main58173-10020iKP6#197802-198409

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-10030iKP6#197802-198005

RH

main58183-10031iKP6#198005-198409

RH

main58184-10030iKP6#197802-198005

LH

main58184-10031iKP6#198005-198409

LH

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10020iKP61198208-198409

58208AMEMBER, CENTER FLOOR CROSS, NO.1

main57407-10060iKP61..SED198005-198409

main57461-10021iKP61197802-198005

58220DUCT ASSY, CENTER FLOOR VENT

main58220-10010iKP61..SED197802-198409

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58213-10010iKP61..SED197802-198409

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58214-10010iKP61..SED197802-198409

58225HOLDER, REAR SEAT CUSHION

main58225-10010×2iKP61..SED197802-198409

58253ABRACKET, PARKING CABLE CLAMP

main58253-10020iKP61197802-198005

main58253-10021iKP61..SED198005-198409

main58253-96440×2iKP6#..4D197810-198409

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-10060iKP61..SED197802-198409

RH

main58208-10080iKP61..SED197802-198409

LH

58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58270-10010iKP61..SED197802-198409

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58209-10010iKP6#..MTM197802-198005

main58286-10020iKP61..5F198005-198409

58287RETAINER, SHIFT LEVER BOOT

main58287-10020iKP6#..MTM197802-198409

58288SEAL, SHIFT LEVER BOOT

main58288-10030iKP61..5F198005-198108

main58288-10031iKP61..5F198108-198409

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iKP61..SED197802-198409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10120iKP61..DLX,STD,XL197802-198005

W/SMALL TYPE BUMPER

main58307-10121iKP61..SED..(S,SE,XL)198005-198208

W/URETHANE BUMPER

main58307-10132iKP61..SED198208-198409

main58307-10160iKP61..S,SE,XL197802-198005

W/BIG TYPE BUMPER

main58307-10161iKP61..SED..(DLX,DXA,S,STD,XL)198005-198208

main58307-10192iKP61..SED..XL..CBR198304-198409

XL-L,W/URETHANE BUMPER

main58307-96440iKP6#..4D197810-198409

58311PAN, REAR FLOOR

main58301-10070iKP61197802-198005

sub58301-10090

main58301-10071iKP61..SED198005-198208

sub90950-01056

main58301-10072iKP61..SED..CBR198208-198409

main58301-10130iKP61..EFI198208-198409

main58311-96440iKP62..STD197810-198107

main58311-96441iKP62..DLX,XL197810-198107

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-10010iKP61..SED197802-198409

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-10020iKP61..SED197802-198209

main58339-10021iKP61..SED198209-198409

58385PANEL, REAR VALANCE

main58308-10020iKP61197802-198005

main58308-10021iKP61..SED198005-198208

main58308-10030iKP61..SED198208-198209

PLANT NO.B11

main58308-10040iKP61..SED198310-198409

9018904002

main90189-04002

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001030

main90950-01030

9095001056

main90950-01056

9095001065

main90950-01065

9095001218

main90950-01218

9354054010

main93540-54010

9354054016

main93540-54016

9356015010

main93560-15010

48 parts on this diagram · 3 diagrams in section
