Toyota STARLET — EXHAUST GAS RECIRCULATION SYSTEM

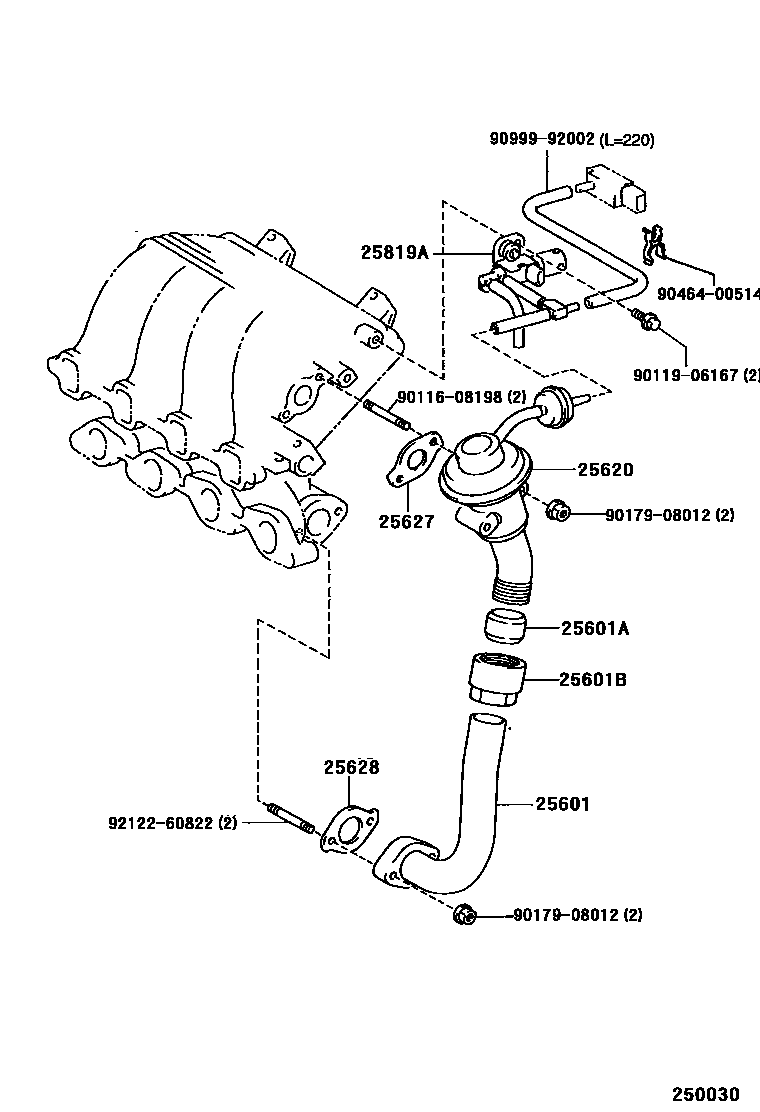

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-55020i199601

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-22001i199601

25601BNUT, UNION, EGR PIPE, NO.1

main90402-30002i199601

25620VALVE ASSY, EGR

main25620-55020i199601

25627GASKET, EGR VALVE

main25627-55020i199601

25628GASKET, EGR INLET

main25628-64030i199601

25819AVALVE, VACUUM REGULATING

main25819-55020i199601

9011608198

main90116-08198

9011906167

main90119-06167

9017908012

main90179-08012

9046400514

main90464-00514

9099992002

main90999-92002

9212260822

main92122-60822

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota STARLET

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota STARLET. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
