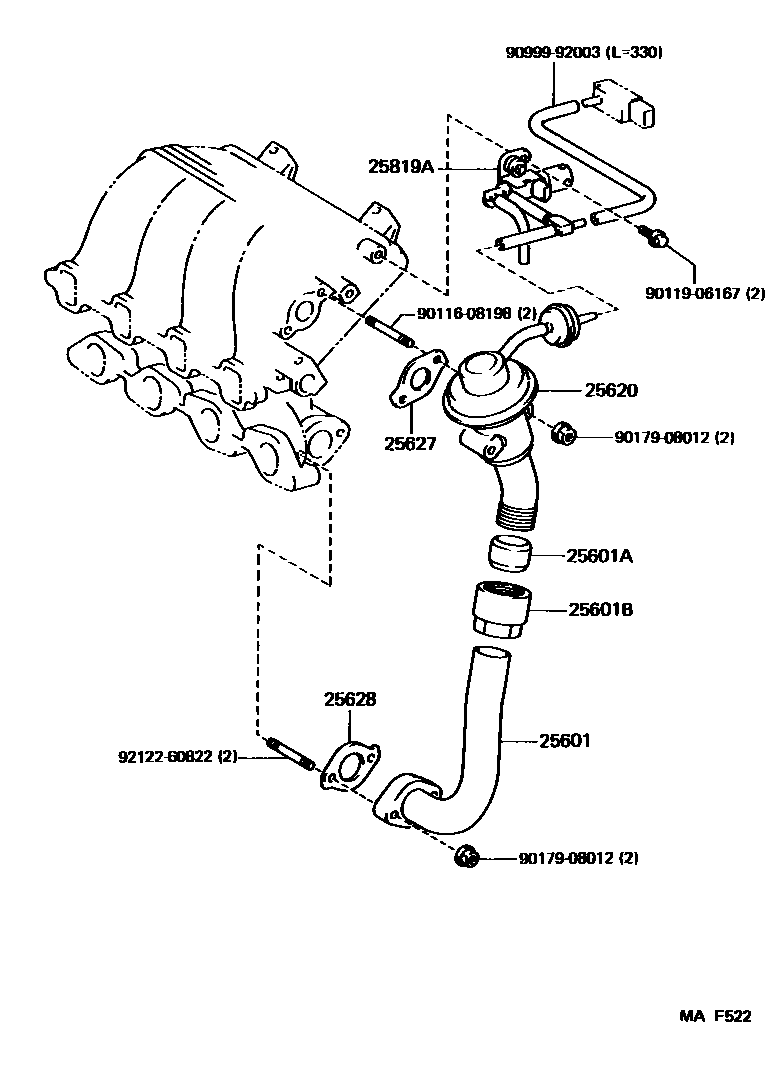

Toyota STARLET — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-55020i199201-199509

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-22001i199201-199509

25601BNUT, UNION, EGR PIPE, NO.1

main90402-30002i199201-199509

25620VALVE ASSY, EGR

main25620-55020i199201-199509

25627GASKET, EGR VALVE

main25627-55020i199201-199509

25628GASKET, EGR INLET

main25628-64030i199201-199509

25819AVALVE, VACUUM REGULATING

main25819-55020i199201-199509

9011608198

main90116-08198

9011906167

main90119-06167

9017908012

main90179-08012

9099992003

main90999-92003

9212260822

main92122-60822

12 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota STARLET

This section contains 12 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota STARLET. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
