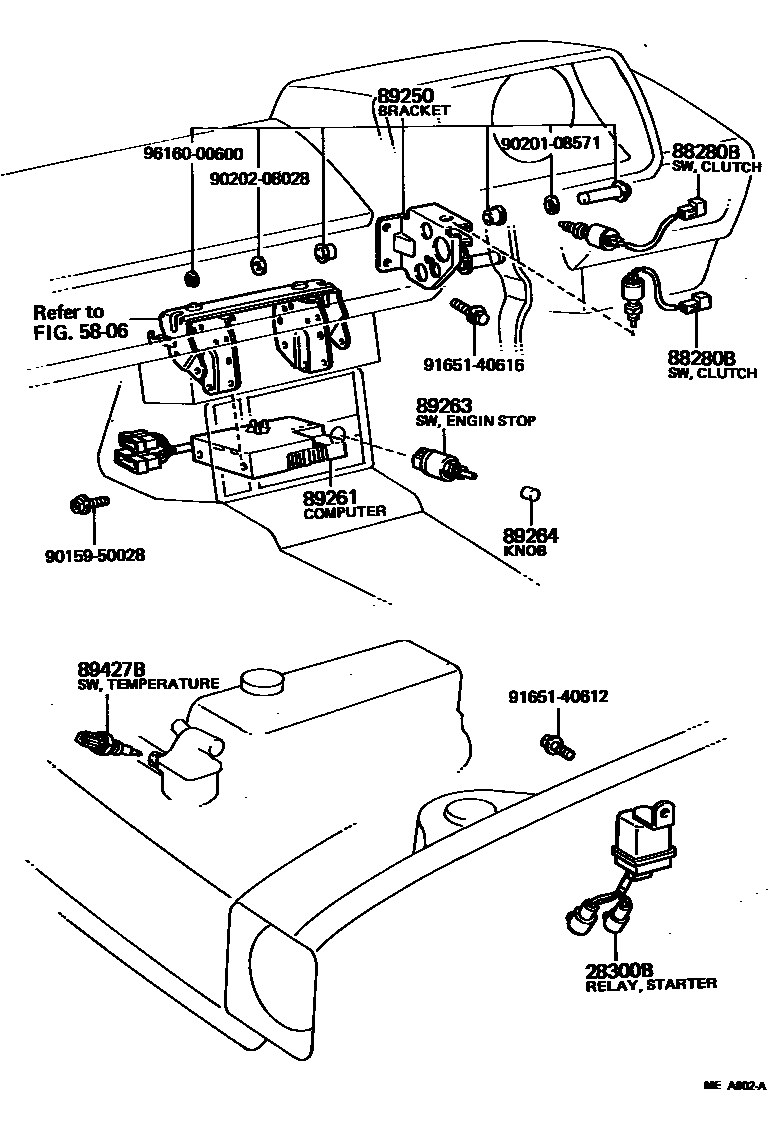

Toyota STARLET — ECO-RUN SYSTEM

0001 1 0002 1

28300BRELAY ASSY, STARTER

main28300-13020i4KU..KP61..5F..DXA198108-198208

main28300-13021i4KU..KP61..5F..DXA198208-198409

5806

88280BSWITCH ASSY, CLUTCH

main88280-10010×2iKP61..5F..DXA198108-198208

main88280-35010×2iKP61..5F..DXA198208-198409

89250BRACKET ASSY, CLUTCH SWITCH

main89250-10010iKP61..5F..DXA198108-198409

89261COMPUTER, ENGINE STOP AND START

main89261-10010iKP61..5F..DXA198108-198208

main89261-10020iKP61..5F..DXA198208-198409

89263SWITCH, ENGINE STOP AND START

main89263-10011iKP61..5F..DXA198108-198208

main89263-10020iKP61..5F..DXA198208-198409

89264KNOB, ENGINE STOP & START

main89264-10010iKP61..5F..DXA198108-198208

main89264-10020iKP61..5F..DXA198208-198409

89427BSWITCH, TEMPERATURE DETECT (FOR ERS)

main89427-10010iKP61..5F..DXA198108-198409

9015950028

main90159-50028

9020108571

main90201-08571

9020208028

main90202-08028

9165140612

main91651-40612

9165140616

main91651-40616

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section
