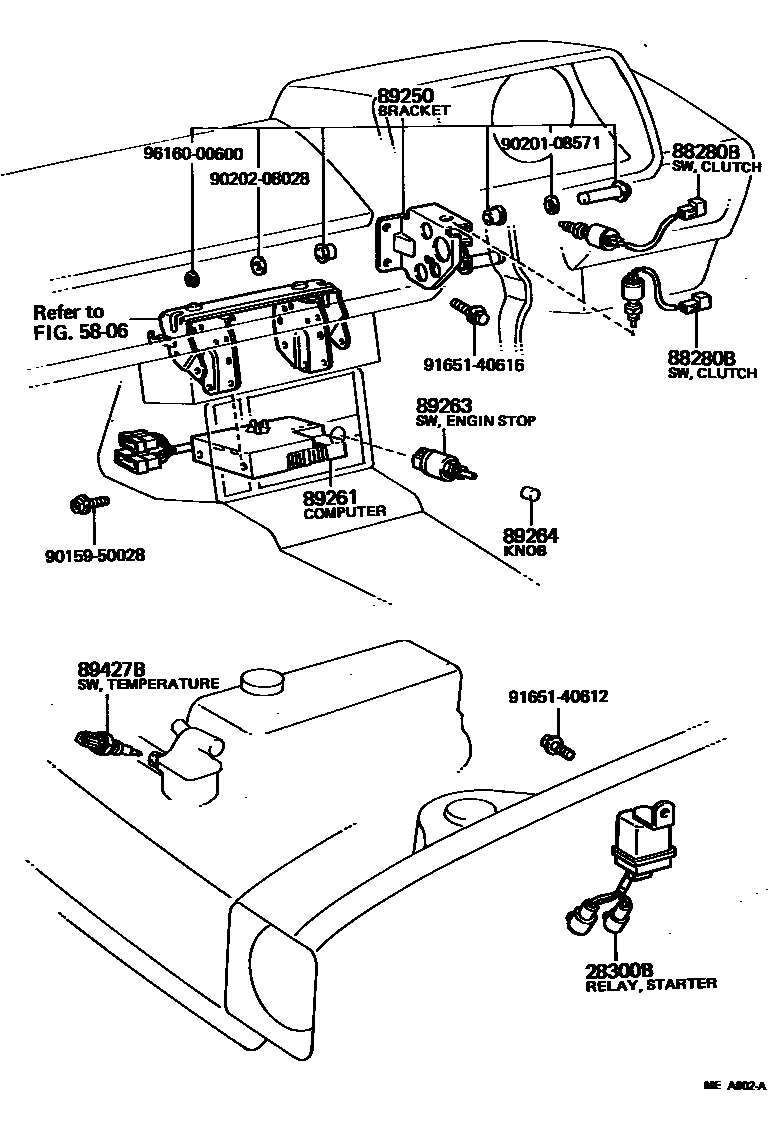

Toyota STARLET — ECO-RUN SYSTEM
28300BRELAY ASSY, STARTER
5806CONSOLE BOX & BRACKET
88280BSWITCH ASSY, CLUTCH
89250BRACKET ASSY, CLUTCH SWITCH
89261COMPUTER, ENGINE STOP AND START
89263SWITCH, ENGINE STOP AND START
89264KNOB, ENGINE STOP & START
89427BSWITCH, TEMPERATURE DETECT (FOR ERS)
9015950028
main90159-50028
9020108571
main90201-08571
9020208028
main90202-08028
9165140612
main91651-40612
9165140616
main91651-40616
9616000600
main96160-00600
14 parts on this diagram · 2 diagrams in section
ECO-RUN SYSTEM for Toyota STARLET
This section contains 18 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota STARLET. Key components include: RELAY ASSY, STARTER, CONSOLE BOX & BRACKET, SWITCH ASSY, CLUTCH, BRACKET ASSY, CLUTCH SWITCH, COMPUTER, ENGINE STOP AND START.
