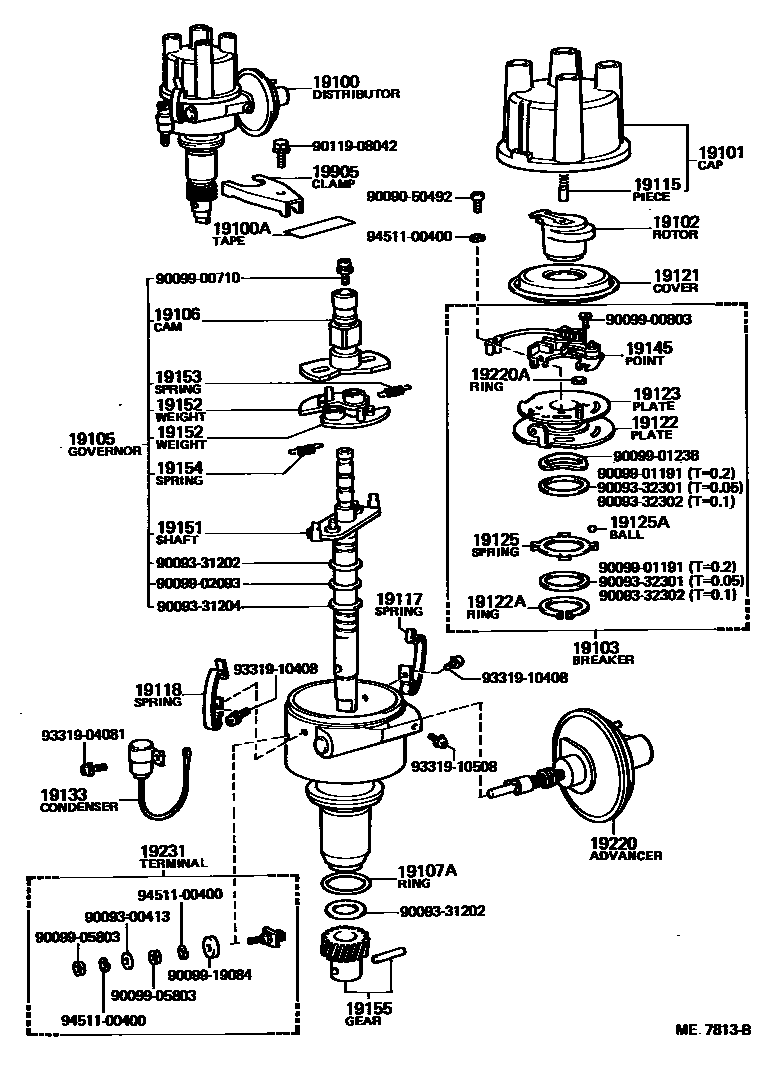

Toyota STARLET — DISTRIBUTOR
19100DISTRIBUTOR ASSY
COLD SPEC
19100ATAPE, SEALING
19101CAP SUB-ASSY, DISTRIBUTOR
COLD SPEC
19102ROTOR SUB-ASSY, DISTRIBUTOR
COLD SPEC
19103BREAKER SUB-ASSY, DISTRIBUTOR
COLD SPEC
COLD SPEC
19105GOVERNOR SUB-ASSY
COLD SPEC
19106CAM SUB-ASSY, DISTRIBUTOR
COLD SPEC
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
COLD SPEC
19121COVER, DUST PROOF
COLD SPEC
NO.2
NO.1
19122PLATE, STATIONARY, DISTRIBUTOR
COLD SPEC
COLD SPEC
19122ARING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE)
19123PLATE, DISTRIBUTOR BREAKER
19125SPRING(FOR DISTRIBUTOR STATIONARY PLATE)
19125ABALL, DISTRIBUTOR STATIONARY PLATE
19133CONDENSER, DISTRIBUTOR
COLD SPEC
19145POINT, DISTRIBUTOR
19151SHAFT, GOVERNOR
COLD SPEC
19152WEIGHT, GOVERNOR
19153SPRING, GOVERNOR, A
COLD SPEC
19154SPRING, GOVERNOR, B
COLD SPEC
19155GEAR, SPIRAL, DISTRIBUTOR
COLD SPEC
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
COLD SPEC
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19231TERMINAL, DISTRIBUTOR
COLD SPEC
19905CLAMP SUB-ASSY, DISTRIBUTOR
9009050492
main90090-50492
9009300413
main90093-00413
9009331202
main90093-31202
9009331204
main90093-31204
9009332301
main90093-32301
9009332302
main90093-32302
9009900710
main90099-00710
9009900803
main90099-00803
9009901191
main90099-01191
9009901238
main90099-01238
9009902093
main90099-02093
9009905803
main90099-05803
9009919084
main90099-19084
9011908042
main90119-08042
9331904081
main93319-04081
9331910408
main93319-10408
9331910508
main93319-10508
9451100400
main94511-00400
46 parts on this diagram · 6 diagrams in section
DISTRIBUTOR for Toyota STARLET
This section contains 65 genuine Toyota parts for the DISTRIBUTOR system of the Toyota STARLET. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR.
