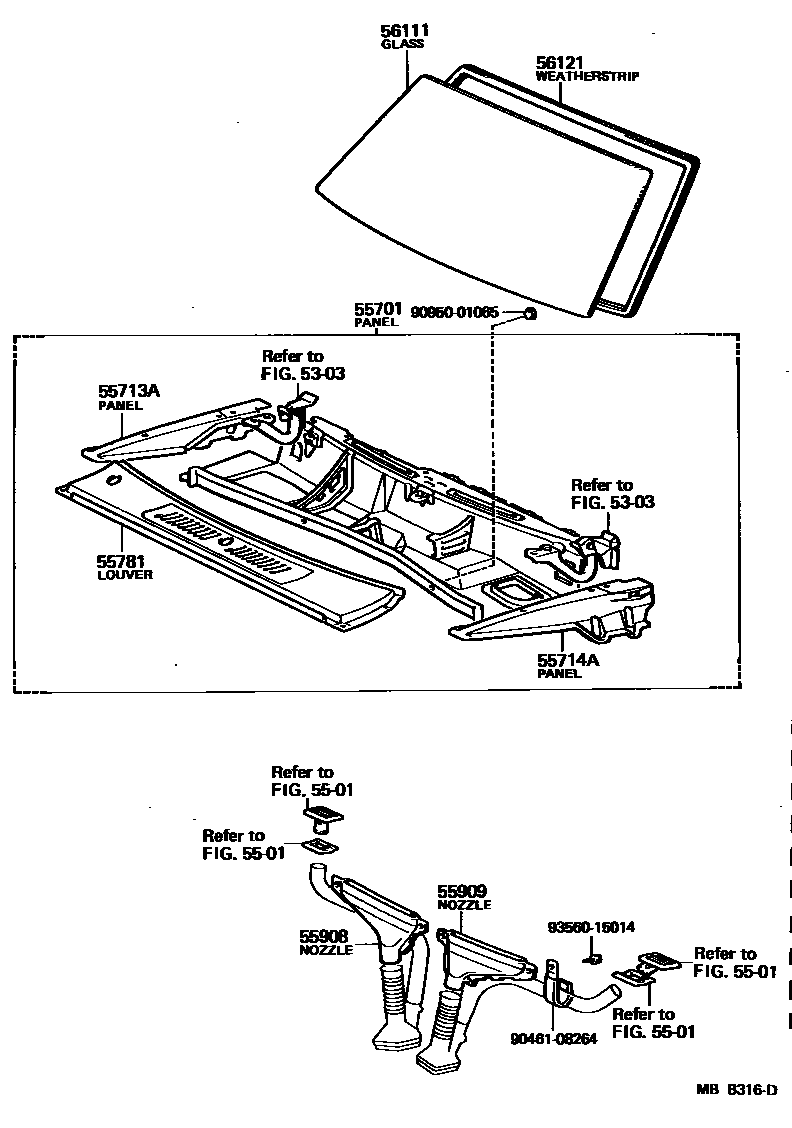

Toyota STARLET — COWL PANEL & WINDSHIELD GLASS

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55701PANEL SUB-ASSY, COWL

main55700-10010i197802-198005

main55700-10011i198005-198208

main55700-10090i198208-198409

55713APANEL, COWL TOP SIDE, RH

main55713-10030i197802-198005

main55713-10031i198005-198409

55714APANEL, COWL TOP SIDE, LH

main55714-10020i197802-198005

main55714-10021i198005-198409

55781LOUVER, COWL VENTILATOR

main55711-10050i197802-198005

main55711-10051i198005-198409

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55091-10030i197802-198208

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55092-10010i197802-198208

56111GLASS, WINDSHIELD

main56111-10140i197802-198208

*TZT,T=5.0

main56111-10150i198301-198409

STARLET SPECIAL,*ZT,T=5.0

main56111-10160i197802-198005

*LAM,T=5.7

main56111-10170i197802-198005

*TL,T=5.7

main56111-10190i198208-198409

*TL,T=4.7

56121WEATHERSTRIP, WINDSHIELD

main56121-10100i197802-198208

W/MOULDING

main56121-10110i197802-198208

W/O MOULDING

9046108264

main90461-08264

9095001065

main90950-01065

9356015014

main93560-15014

13 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota STARLET

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota STARLET. Key components include: HOOD LOCK & HINGE, INSTRUMENT PANEL & GLOVE COMPARTMENT, SPACER, INSTRUMENT PANEL SAFETY PAD, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH.
