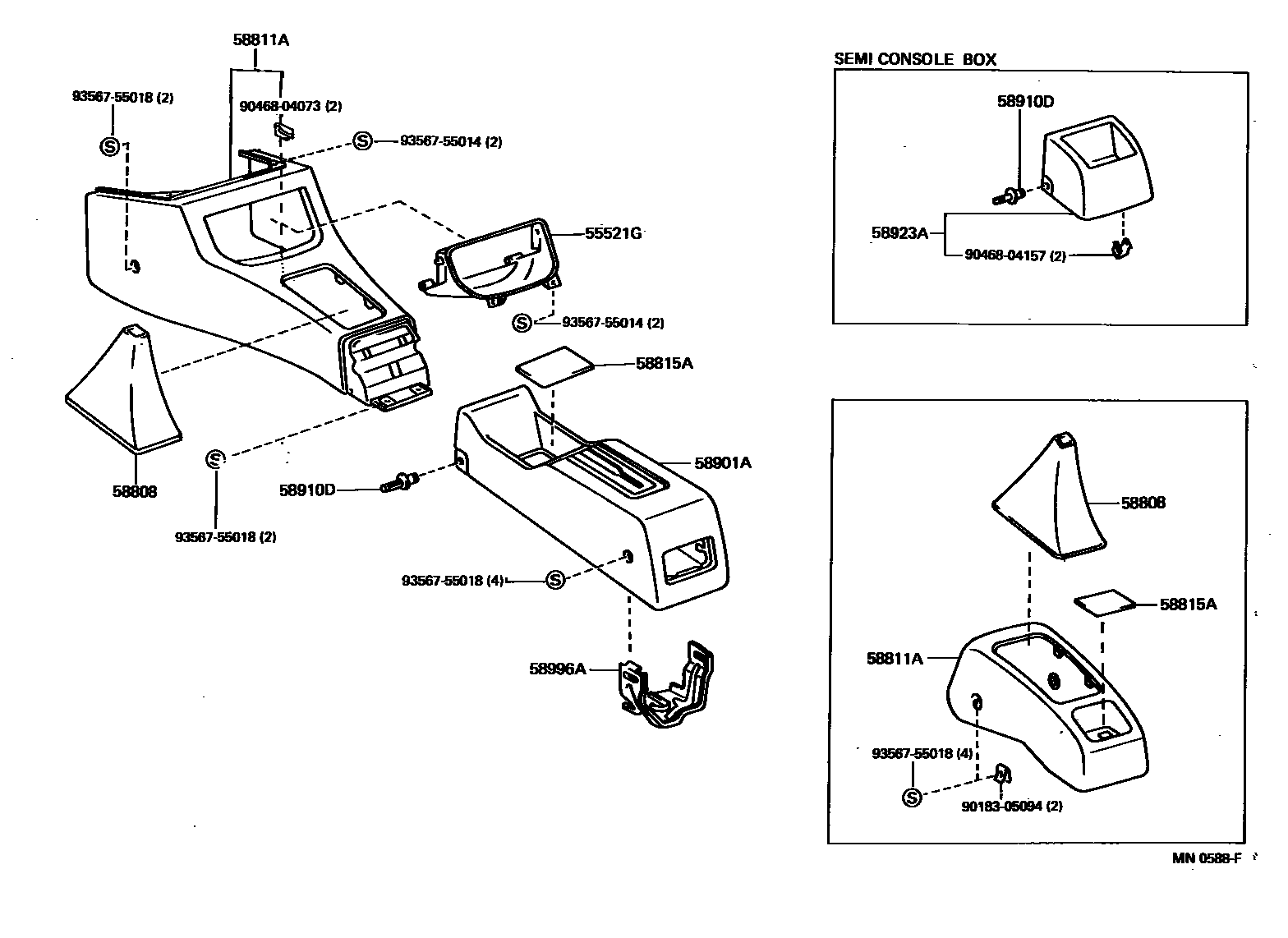

Toyota STARLET — CONSOLE BOX & BRACKET

55521GCOVER, STEREO OPENING

main55521-10060iEP82..SOL198912-199601

sub55539-32010

main55521-10090iEP82..4FC..TBO199201-199601

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10080-03iEP8#,NP80..5F..(CAN,S,XLTD)199201-199601

GRAY,TRIM1#

main58808-10080-04iEP82..5F..(GI,GT,S,SI)198912-199201

BLUE,TRIM8#

main58808-10080-C0iEP82..5F..(GI,GT)199201-199601

BLACK,TRIM1#

main58808-10080-E0iEP8#,NP80..5F..XLTD199201-199405

OAK,TRIM4#

main58808-10090-03iEP8#..MTM..(CAN,SOL,SOLL,X,XLTD)..CBR;EP8#,NP80..MTM..(SOL,SOLL,X)..(DSL,EFI)198912-199601

GRAY,TRIM1#

main58808-10090-04iEP82..4F..SOLL199110-199112

BLUE,TRIM8#

main58808-10090-06iEP8#,NP80..MTM..(SOLL,X,XLTD)198912-199201

SABLE,TRIM4#

main58808-10090-E0iEP8#..MTM..SOLL199201-199405

OAK,TRIM4#

58811ABOX, CONSOLE, FRONT

main58811-10210-03iNP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199201

GRAY,TRIM1#

main58811-10210-04iEP82..GI,GT,S,SI198912-199201

BLUE,TRIM8#

main58811-10210-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main58811-10210-C0iEP82..GI,GT199201-199601

BLACK,TRIM1#

main58811-10210-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

main58811-10220-03iEP82..5D..4F..SOL;EP82..4F..(CAN,SOLL);EP8#,NP80..3FC,4FC,5F198912-199201

main58811-10220-04iEP82..GI,GT,S,SI198912-199110

main58811-10220-06iEP8#,NP80..SOLL,X,XLTD198912-199201

main58811-10220-C0iEP82..GI,GT199201-199601

main58811-10220-E0iEP8#,NP80..SOLL,XLTD199201-199405

main58811-10230-03iEP82..SOL198912-199601

GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-10020-03iEP82..SOL198912-199201

GRAY,TRIM1#

main58815-10020-C0iEP82..SOL199201-199601

GRAY,TRIM1#

main58815-10030-03iEP82,NP80..CAN,CANSI,GI,GT,S,SI,X198912-199201

GRAY,TRIM1#

main58815-10030-04iEP82..GI,GT,S,SI198912-199201

BLUE,TRIM8#

main58815-10030-06iEP82,NP80..X198912-199201

SABLE,TRIM4#

main58815-10030-C0iEP82,NP80..CAN,GI,GT,S,XLTD199201-199601

GRAY,TRIM1#

main58815-10030-E0iEP82,NP80..XLTD199201-199405

OAK,TRIM4#

main58815-10040-03iEP85199008-199201

GRAY,TRIM1#

main58815-10040-06iEP85199008-199201

SABLE,TRIM4#

main58815-10040-C0iEP85199201-199601

GRAY,TRIM1#

main58815-10040-E0iEP85..SOLL,XLTD199201-199405

OAK,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-10030-03iEP82,NP80..CAN,CANSI,GI,GT,S,SI,X198912-199201

SHADOW GRAY,TRIM1#

main58901-10030-04iEP82..GI,GT,S,SI198912-199201

BLUE,TRIM8#

main58901-10030-06iEP82,NP80..X198912-199201

SABLE,TRIM4#

main58901-10030-C0iEP82..GI,GT199201-199601

BLACK,TRIM1#

main58901-10030-E0iEP82,NP80..XLTD199201-199405

OAK,TRIM4#

main58901-10040-03iEP85199008-199601

GRAY,TRIM1#

main58901-10040-06iEP85199008-199201

SABLE,TRIM4#

main58901-10040-E0iEP85..SOLL,XLTD199201-199405

OAK,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

main90467-07071-03×2iEP8#,NP80198912-199009

SHADOW GRAY,TRIM1#

main90467-07071-14×2iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main90467-07071-16×2iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main90467-07071-22×2iEP8#,NP80199201-199601

BLACK,TRIM1#

main90467-07071-B4×2iEP8#,NP80199009-199201

SHADOW GRAY,TRIM1#

main90467-07071-E0×2iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-10010-03iEP82,NP80..SOL,SOLL198912-199601

GRAY,TRIM1#

main58923-10010-04iEP82..SOLL199110-199112

BLUE,TRIM8#

main58923-10010-06iEP82..SOLL198912-199201

SABLE,TRIM4#

main58923-10010-E0iEP82..SOLL199201-199405

OAK,TRIM4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-10060iEP82,NP80..CAN,CANSI,GI,GT,S,SI,X,XLTD198912-199601

9018305094

main90183-05094

9046804073

main90468-04073

9046804157

main90468-04157

9356755014

main93567-55014

9356755018

main93567-55018

13 parts on this diagram · 1 diagram in section
