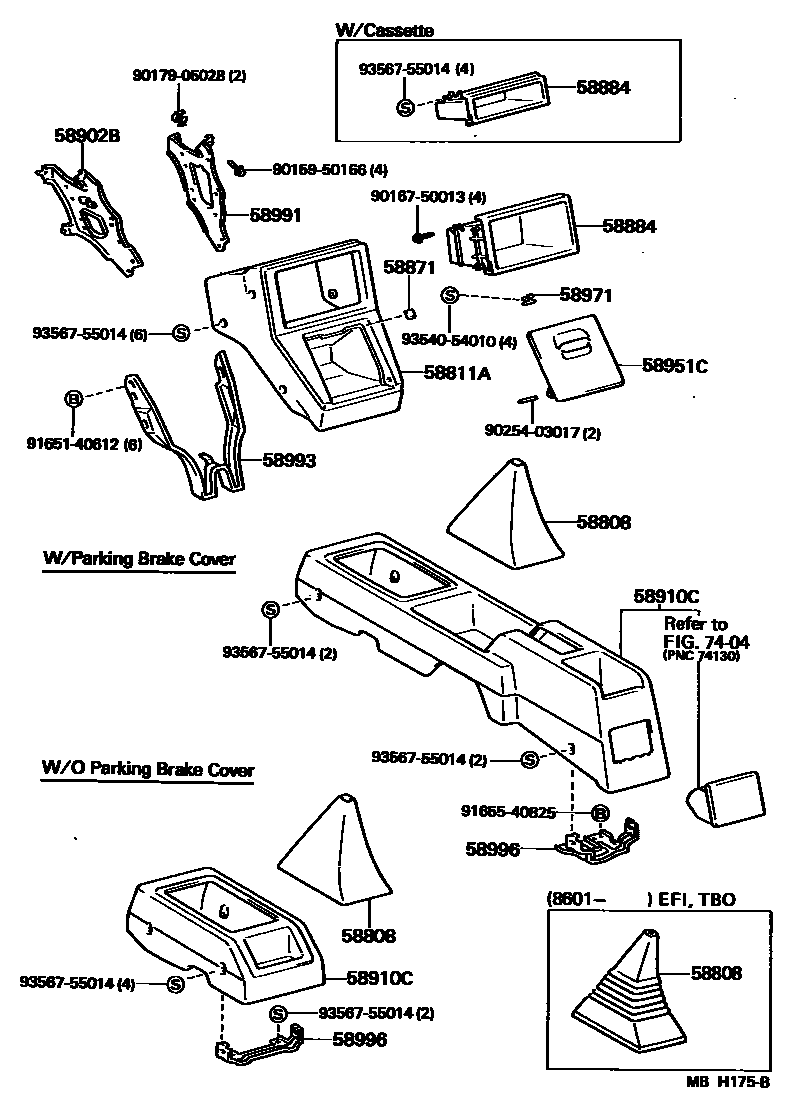

Toyota STARLET — CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10050-01iEP7#..MTM..CBR198601-198612

BLACK,BLACK,TRIM1#,8#

main58808-10050-02iEP71..4F..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main58808-10050-04iEP71..MTM..(SE,XL)198410-198612

CD-L,BLUE,BLUE,TRIM8#

main58808-10060-01iEP71..EFI,TBO198601-198912

BLACK,BLACK,TRIM1#

main58808-10070-01iEP7#,NP7#..MTM..(CBR,DSL)198612-198912

BLACK,BLACK,TRIM1#,8#

main58808-10070-06iEP71,NP70..MTM..(DX,SE,XL)198612-198912

BROWN,BROWN,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-10040-03iEP71..TBS198612-198912

W/TEMS,GRAY,GRAY,TRIM1#

main58802-10050-03iEP71..TBS198612-198912

W/TEMS & RR HEATER DUCT,GRAY,GRAY,TRIM1#

main58811-10110-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main58811-10110-03iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

GRAY,GRAY,TRIM1#

main58811-10110-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main58811-10120-03iEP71..DX,SE,SI,TBS,TOR,XL198612-198912

GRAY,GRAY,TRIM1#

main58811-10120-06iEP71..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main58811-10170-03iEP71..DX,SE,SI,TBS,TOR,XL198612-198912

W/RR HEATER DUCT,GRAY,GRAY,TRIM1#

main58811-10170-06iEP71..DX,SE,XL198612-198912

W/RR HEATER DUCT,BROWN,BROWN,TRIM4#

58871CUSHION, CONSOLE BOX

main58871-10040×2iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

58884COVER, STEREO OPENING

main55521-10040iEP71..XL198410-198601

LISSE

main55521-16010iEP71..XL198410-198601

W/CASSETTE

sub55521-16030

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-10060iEP71..DX,SE,SI,TBS,TOR,XL198612-198912

main58902-10080iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

58910CBOX ASSY, CONSOLE, REAR

main58910-10010-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main58910-10010-03iEP7#,NP7#..(CD,SE,SI,TBS,TOR,XL)..05S198410-198912

W/PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

main58910-10010-04iEP7#..(CD,SE,XL)..05S198410-198612

W/PARKING BRAKE COVER,BLUE,BLUE,TRIM8#

main58910-10010-06iEP71,NP70..SE,XL198612-198912

W/PARKING BRAKE COVER,BROWN,BROWN,TRIM4#

main58911-10030-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main58911-10030-03iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198410-198912

W/O PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

main58911-10030-04iEP7#..CD,DX198410-198612

W/O PARKING BRAKE COVER,BLUE,BLUE,TRIM8#

main58911-10030-06iEP71,NP70..DX198612-198912

W/O PARKING BRAKE COVER,BROWN,BROWN,TRIM4#

58951CDOOR, BOX

main58951-10020-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main58951-10020-03iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

GRAY,GRAY,TRIM1#

main58951-10020-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-10010iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main55309-10030iEP71..SI,TBS,TOR198612-198912

W/CD STEREO

main58903-10030iEP71..DX,SE,SI,TBS,TOR,XL198612-198912

main58991-10080iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-10020iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-10030iEP7#,NP7#..(CD,SE,SI,TBS,TOR,XL)..05S198410-198912

W/PARKING BRAKE COVER

main58995-10040iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198410-198912

W/O PARKING BRAKE COVER

7404

9015950166

main90159-50166

9016750013

main90167-50013

9017905028

main90179-05028

9025403017

main90254-03017

9165140612

main91651-40612

9165540825

main91655-40825

9354054010

main93540-54010

9356755014

main93567-55014

20 parts on this diagram · 2 diagrams in section
