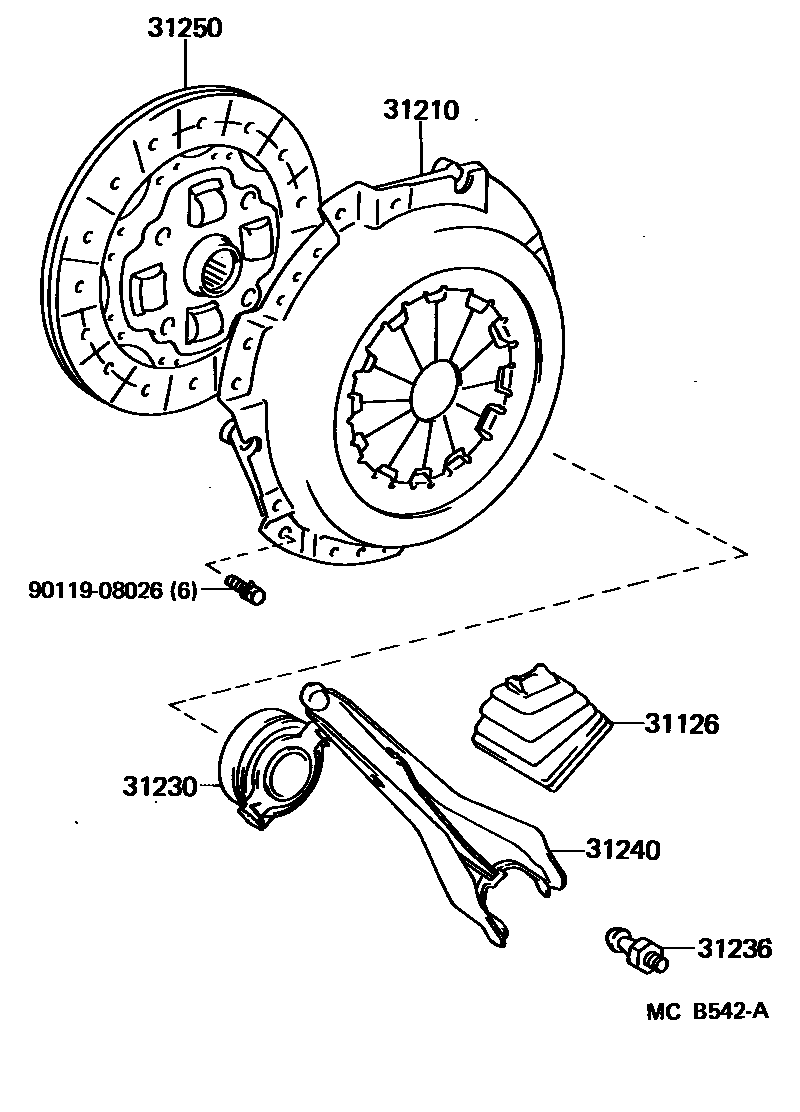

Toyota STARLET — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12050i198410-198701

main31126-12051i198701-198912

31210COVER ASSY, CLUTCH

main31210-10060i198410-198912

*AXC=-672,-552,-542,-522

main31210-10070i198410-198512

*AXC=-682

main31210-12110i198512-198606

*AXC=-682

main31210-16060i198606-198812

*AXC=-682

main31210-16061i198812-198912

*AXC=-682

main31210-16100i198608-198912

main31210-20200i198601-198608

main31210-27010i198612-198907

main31210-27011i198907-198912

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100i198410-198607

main31230-12140i198801-198912

31236BALL, RELEASE FORK

main31236-12011i198410-198912

31240FORK ASSY, CLUTCH RELEASE

main31204-12050i198410-198912

31250DISC ASSY, CLUTCH

main31250-10060i198410-198702

*AXC=-672,-552,-542,-522

main31250-10061i198702-198707

*AXC=-672,-552,-542,-522

main31250-10062i198707-198912

*AXC=-672,-552,-542,-522

main31250-10070i198601-198802

main31250-10080i198612-198708

main31250-10081i198708-198912

main31250-12133i198410-198707

*AXC=-682

main31250-12170i198707-198912

*AXC=-682

main31250-12200i198802-198912

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota STARLET

This section contains 7 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota STARLET. Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, BALL, RELEASE FORK, FORK ASSY, CLUTCH RELEASE.
