Toyota STARLET — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-10030-03i199201-199210

main74210-10030-04i199110-199112

main74210-10030-06i198912-199201

main74210-10030-E0i199201-199210

main74210-10031-E0i199210-199405

main74210-10031-P0i199210-199601

GRAY,TRIM1#

main74210-10040-03i198912-199201

GRAY,TRIM1#

main74210-10040-04i198912-199201

BLUE,TRIM8#

main74210-10050-03i199505-199512

main74210-10050-04i198912-199201

BLUE,TRIM8#

main74210-10050-06i198912-199201

SABLE,TRIM4#

main74210-10060-03i199201-199212

GRAY,TRIM1#

main74210-10060-04i199110-199112

BLUE,TRIM8#

main74210-10060-06i198912-199201

SABLE,TRIM4#

main74210-10060-E0i199201-199405

OAK,TRIM4#

main74250-10010-03i198912-199201

GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74210-10060-03i199405-199601

GRAY,TRIM1#

main74210-10060-04i199110-199112

BLUE,TRIM8#

main74210-10060-06i198912-199201

SABLE,TRIM4#

main74210-10060-E0i199201-199405

OAK,TRIM4#

main74220-10020-03i198912-199201

main74220-10020-04i198912-199110

main74220-10020-06i198912-199201

main74220-10020-E0i199201-199210

main74220-10021-E0i199210-199405

main74220-10021-P0i199405-199601

main74220-10030-03i198912-199201

GRAY,TRIM1#

main74220-10030-04i198912-199201

BLUE,TRIM8#

main74220-10040-03i198912-199201

GRAY,TRIM1#

main74220-10040-04i198912-199201

BLUE,TRIM8#

main74220-10040-06i198912-199201

SABLE,TRIM4#

main74250-10010-03i198912-199201

GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-10060-03i198912-199201

GRAY,TRIM1#

main74210-10060-04i198912-199110

BLUE,TRIM8#

main74210-10060-06i198912-199201

SABLE,TRIM4#

main74210-10060-E0i199201-199405

OAK,TRIM4#

main74250-10010-03i198912-199201

GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10010i198912-199008

main74231-10010-01i199008-199208

BLACK,TRIM1#,4#; BLACK,TRIM1#,8#

main74231-10010-22i199208-199210

BLACK,TRIM1#,4#

main74231-10011-22i199210-199405

BLACK,TRIM1#,4#

main74231-10020i198912-199008

main74231-10020-01i199008-199201

BLACK,TRIM1#; BLACK,TRIM1#,8#

main74231-10020-22i199208-199210

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74231-10021-22i199210-199405

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74231-10040-C0i199405-199601

BLACK,TRIM1#

main74231-10050-C0i199405-199601

BLACK,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10020i198912-199008

main74232-10020-01i199110-199112

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#

main74232-10020-22i199208-199210

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74232-10021-22i199405-199601

BLACK,TRIM1#

74240ARMREST ASSY, REAR, LH

main74210-10060-03i199201-199601

GRAY,TRIM1#

main74210-10060-04i199110-199112

BLUE,TRIM8#

main74210-10060-06i198912-199201

SABLE,TRIM4#

main74210-10060-E0i199201-199405

OAK,TRIM4#

main74250-10010-03i198912-199201

GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-10370-03i198912-199405

GRAY,TRIM1#

main74310-10380-03i198912-199201

GRAY,TRIM1#; GRAY,TRIM1#,8#

main74310-10380-06i198912-199201

SABLE,TRIM4#

main74310-10390-03i198912-199201

GRAY,TRIM1#

main74310-10400-A0i199201-199405

main74310-10400-B0i199201-199405

main74310-10420-03i199112-199405

GRAY,TRIM1#; GRAY,TRIM1#,8#

main74310-10420-06i198912-199201

main74310-10420-A0i199201-199405

IVORY,TRIM4#

main74310-10480-B0i199201-199212

GRAY,TRIM1#

main74310-10490-B0i199212-199405

main74310-10500-B0i199201-199212

main74310-10510-B0i199201-199405

main74310-10520-B2i199405-199506

GRAY,TRIM1#

main74310-10521-B2i199506-199601

GRAY,TRIM1#

main74310-10530-B1i199405-199506

GRAY,GRAY,TRIM1#; GRAY,TRIM1#

main74310-10531-B1i199506-199601

GRAY,TRIM1#

main74310-10560-B1i199405-199506

main74310-10561-B1i199506-199601

main74310-10570-B1i199405-199506

main74310-10571-B1i199506-199601

74320VISOR ASSY, LH

main74320-10190-03i199110-199112

GRAY,TRIM1#; GRAY,TRIM1#,8#

main74320-10190-06i198912-199201

SABLE,TRIM4#

main74320-10190-A0i199201-199405

IVORY,TRIM4#

main74320-10260-B1i199405-199601

GRAY,GRAY,TRIM1#; GRAY,TRIM1#

74334CASE, VISOR ARM, LH

main74334-30070i198912-199201

74348BHOLDER, VISOR, RH

main74348-12010-33i199112-199201

GRAY,TRIM1#; GRAY,TRIM1#,8#

main74348-12010-55i198912-199201

BEIGE,TRIM4#

main74348-12010-A2i199201-199405

IVORY,TRIM4#

74348CHOLDER, VISOR, LH

main74348-12010-33i198912-199110

GRAY,TRIM1#; GRAY,TRIM1#,8#

main74348-12010-55i198912-199201

BEIGE,TRIM4#

main74348-12010-A2i199201-199405

IVORY,TRIM4#

74609ARETAINER SUB-ASSY, ASSIST GRIP, LH

main74609-10010i198912-199405

74610AGRIP SUB-ASSY, ASSIST

main74610-12020-03×2i198912-199201

main74610-12020-16×2i198912-199201

main74610-12020-A0×2i199201-199405

main74610-16010-03i198912-199201

main74610-16010-16i198912-199201

main74610-16010-A0i199201-199405

74617APLUG, ASSIST GRIP

main74617-16010-53×2i198912-199201

main74617-16010-56×6i198912-199201

LIGHT SABLE,TRIM4#

main74617-16010-A0×6i199201-199405

IVORY,TRIM4#

9015960273

main90159-60273

9015960367

main90159-60367

9016460021

main90164-60021

9016860021

main90168-60021

9018906078

main90189-06078

9018906093

main90189-06093

9046805047

main90468-05047

9046805118

main90468-05118

9353045020

main93530-45020

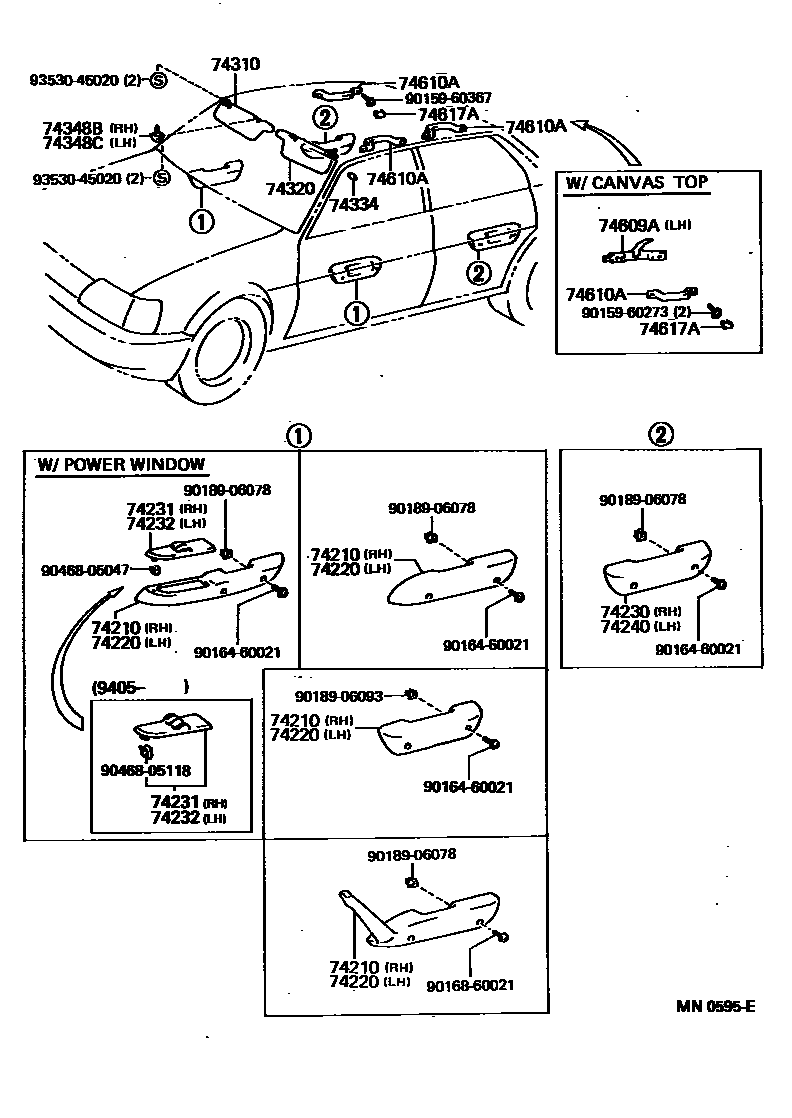

23 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota STARLET

This section contains 23 genuine Toyota parts for the ARMREST & VISOR system of the Toyota STARLET. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
