E
EPC Data

Toyota STARLET — ARMREST & VISOR

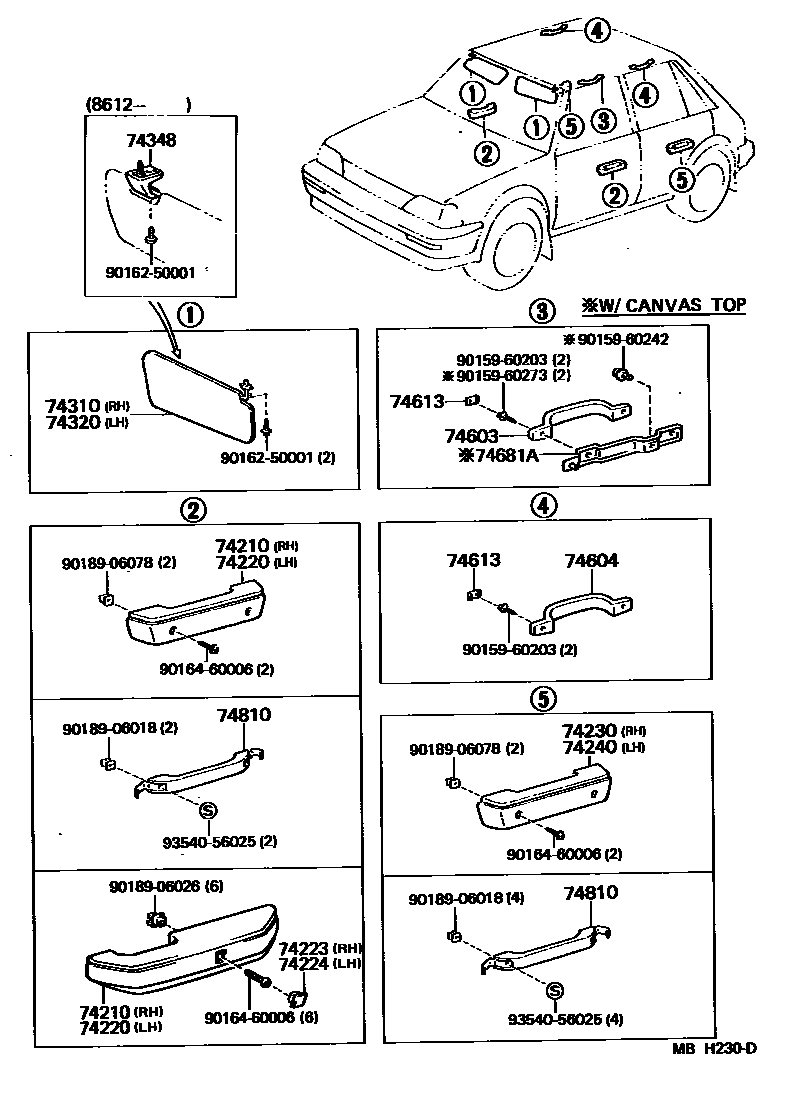

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-10010-03i198612-198912
GRAY,GRAY,TRIM1#
main74210-10010-06i198612-198912
BROWN,BROWN,TRIM4#
main74210-10020-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main74210-10020-03i198410-198612
GRAY,GRAY,TRIM1#
main74210-10020-04i198410-198612
BLUE,BLUE,TRIM8#
main74210-10020-16i198612-198912
BROWN,BROWN,TRIM4#
main74210-12070-03i198601-198912
GRAY,GRAY,TRIM1#
74220ARMREST ASSY, FRONT, LH
main74210-10020-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main74210-10020-03i198612-198912
GRAY,GRAY,TRIM1#
main74210-10020-04i198410-198612
BLUE,BLUE,TRIM8#
main74210-10020-16i198612-198912
BROWN,BROWN,TRIM4#
main74220-10010-03i198612-198912
GRAY,GRAY,TRIM1#
main74220-10010-06i198612-198912
BROWN,BROWN,TRIM4#
main74220-12030-03i198601-198912
GRAY,GRAY,TRIM1#
74223CAP, DOOR ARMREST, RH
main74223-12050-03i198601-198912
GRAY,GRAY,TRIM1#
74224CAP, DOOR ARMREST, LH
main74223-12050-03i198601-198912
GRAY,GRAY,TRIM1#
74230ARMREST ASSY, REAR, RH
main74250-10010-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main74250-10010-03i198410-198912
GRAY,GRAY,TRIM1#
main74250-10010-04i198410-198612
BLUE,BLUE,TRIM8#
main74250-10010-06i198612-198912
BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74250-10010-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main74250-10010-03i198410-198912
GRAY,GRAY,TRIM1#
main74250-10010-04i198410-198612
BLUE,BLUE,TRIM8#
main74250-10010-06i198612-198912
BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-10160-08i198410-198612
IVORY,IVORY
main74310-10170-08i198604-198612
SOLEIL-L,IVORY,IVORY
main74310-10171-08i198612-198912
SOLEIL-L,IVORY,IVORY
main74310-10200-08i198612-198912
IVORY,IVORY
main74310-10220-08i198804-198912
IVORY,IVORY
main74310-10230-08i198410-198612
IVORY,IVORY
main74310-10231-08i198805-198912
IVORY,IVORY
main74310-10241-08i198410-198805
IVORY,IVORY
main74310-10250-08i198410-198612
CD-L,IVORY,IVORY
main74310-10270-08i198612-198912
LISSE,IVORY,IVORY
main74310-10290-08i198612-198805
CD-L,IVORY,IVORY; IVORY,IVORY; SOLEIL,IVORY,IVORY
main74310-10350-08i198804-198912
W/CANVAS TOP,IVORY,IVORY
main74310-10360-08i198804-198912
IVORY,IVORY
74320VISOR ASSY, LH
main74320-10070-08i198410-198612
IVORY,IVORY
main74320-10071-08i198612-198912
IVORY,IVORY
main74320-10120-08i198612-198912
IVORY,IVORY
main74320-10180-08i198901-198903
TURBO S LIMITED,IVORY,IVORY
74348HOLDER, VISOR
main74348-20020-08i198612-198912
IVORY,IVORY
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-12030-08i198410-198912
IVORY,IVORY
main74610-12030-18i198804-198912
W/CANVAS TOP,IVORY,IVORY
main74610-12040-08i198410-198912
W/SUN ROOF,IVORY,IVORY
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-12030-08×2i198410-198912
IVORY,IVORY
main74610-12040-08×2i198410-198612
W/SUN ROOF,IVORY,IVORY
74613PLUG, ASSIST GRIP
main74617-16010-08×6i198612-198912
IVORY; W/SUN ROOF,IVORY,IVORY
main74617-16010-18×2i198804-198912
W/CANVAS TOP,IVORY,IVORY
74681ARETAINER, ASSIST GRIP
main74681-10010i198804-198912
W/CANVAS TOP
74810PULL ASSY, DOOR, INSIDE
main74641-16010-22×2i198601-198612
SOLEIL-L,MAROON,MAROON,TRIM3#
main74641-16010-23×4i198612-198912
SOLEIL,GRAY,GRAY,TRIM1#
main74641-16010-34×2i198410-198612
DX-A,BLUE,BLUE,TRIM8#
main74641-16010-46i198612-198912
SOLEIL,BROWN,BROWN,TRIM4#
9015960203
main90159-60203
9015960242
main90159-60242
9015960273
main90159-60273
9016250001
main90162-50001
9016460006
main90164-60006
9018906018
main90189-06018
9018906026
main90189-06026
9018906078
main90189-06078
9354056025
main93540-56025

23 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota STARLET

This section contains 23 genuine Toyota parts for the ARMREST & VISOR system of the Toyota STARLET. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, ARMREST ASSY, REAR, RH.
