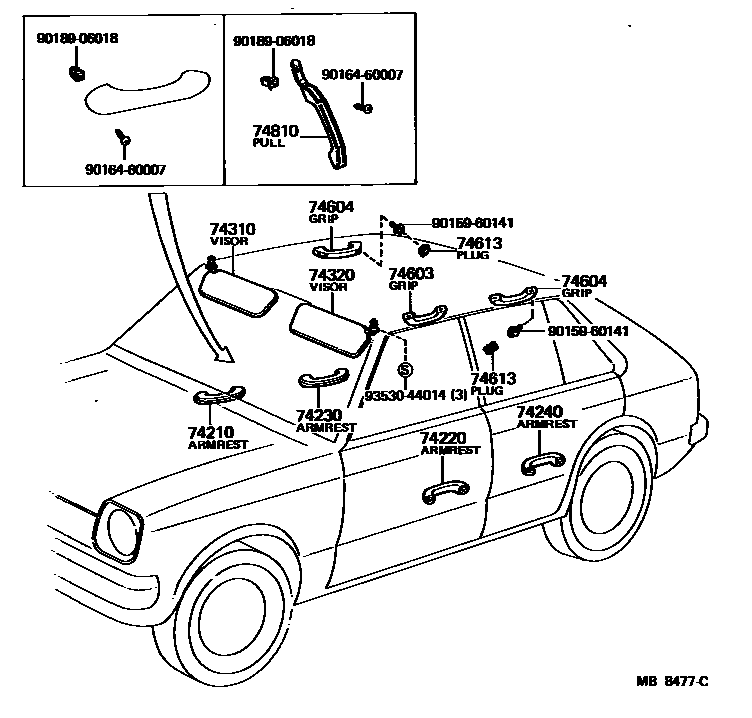

Toyota STARLET — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
LIGHT BROWN,LIGHT BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
LIGHT BROWN,LIGHT BROWN,TRIM2#,4#
BROWN,BROWN,TRIM1#,4#
74220ARMREST ASSY, FRONT, LH
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
LIGHT BROWN,LIGHT BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
LIGHT BROWN,LIGHT BROWN,TRIM0#,4#
BROWN,BROWN,TRIM1#,4#
74230ARMREST ASSY, REAR, RH
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
LIGHT BROWN,LIGHT BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM2#,4#,8#
LIGHT BROWN,LIGHT BROWN,TRIM2#,4#
BROWN,BROWN,TRIM1#,4#
74240ARMREST ASSY, REAR, LH
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
LIGHT BROWN,LIGHT BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM2#,4#,8#
LIGHT BROWN,LIGHT BROWN,TRIM2#,4#
BROWN,BROWN,TRIM2#,4#
74310VISOR ASSY, RH
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM1#,3#,4#
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,4#,8#
SUPER,LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM4#
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
XL-L,IVORY,IVORY,TRIM0#
W/MIRROR,IVORY,IVORY,TRIM1#,4#
W/REMOVABLE ROOF,IVORY,IVORY,TRIM2#,4#,8#
W/REMOVABLE ROOF,LIGHT GRAY,GRAY,TRIM1#
W/REMOVABLE ROOF,IVORY,IVORY,TRIM3#,4#
IVORY,IVORY,TRIM2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM4#
74320VISOR ASSY, LH
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,4#,8#
W/O MIRROR,LIGHT GRAY,GRAY,TRIM1#
W/O MIRROR,IVORY,IVORY,TRIM1#,3#,4#
IVORY,IVORY,TRIM2#,4#,8#
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#
W/MIRROR,IVORY,IVORY,TRIM3#,4#
74603GRIP SUB-ASSY, ASSIST, FRONT
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM0#,2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM1#,3#,4#
74604GRIP SUB-ASSY, ASSIST, REAR
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM0#,2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM1#,3#,4#
74613PLUG, ASSIST GRIP
GRAY,GRAY,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
IVORY,IVORY,TRIM0#,2#,4#,8#; IVORY,IVORY,TRIM2#,4#,8#
LIGHT GRAY,GRAY,TRIM1#
IVORY,IVORY,TRIM1#,3#,4#; IVORY,IVORY,TRIM1#,4#
74810PULL ASSY, DOOR, INSIDE
main74641-16010-01×2iKP6#..4D..(DLX,STD)..05S; KP61..02S;KP6#..4D..XL; KP61..3D..(DLX,DXA,STD); KP61..5D..DLX197907-198208
BLACK,BLACK,TRIM2#
LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#
SUPER,GRAY,GRAY,TRIM1#; SUPER,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
main74641-16010-16×2iKP6#..4D..DLX..05S; KP6#..4D..XL; KP61..3D..(DLX,DXA); KP61..5D..DLX198005-198208
LIGHT BROWN,BROWN,TRIM2#,4#; LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM1#,4#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
9015960141
main90159-60141
9016460007
main90164-60007
9018906018
main90189-06018
9353044014
main93530-44014
14 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota STARLET
This section contains 14 genuine Toyota parts for the ARMREST & VISOR system of the Toyota STARLET. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, ARMREST ASSY, REAR, LH, VISOR ASSY, RH.
