Toyota STARLET — ACCELERATOR LINK

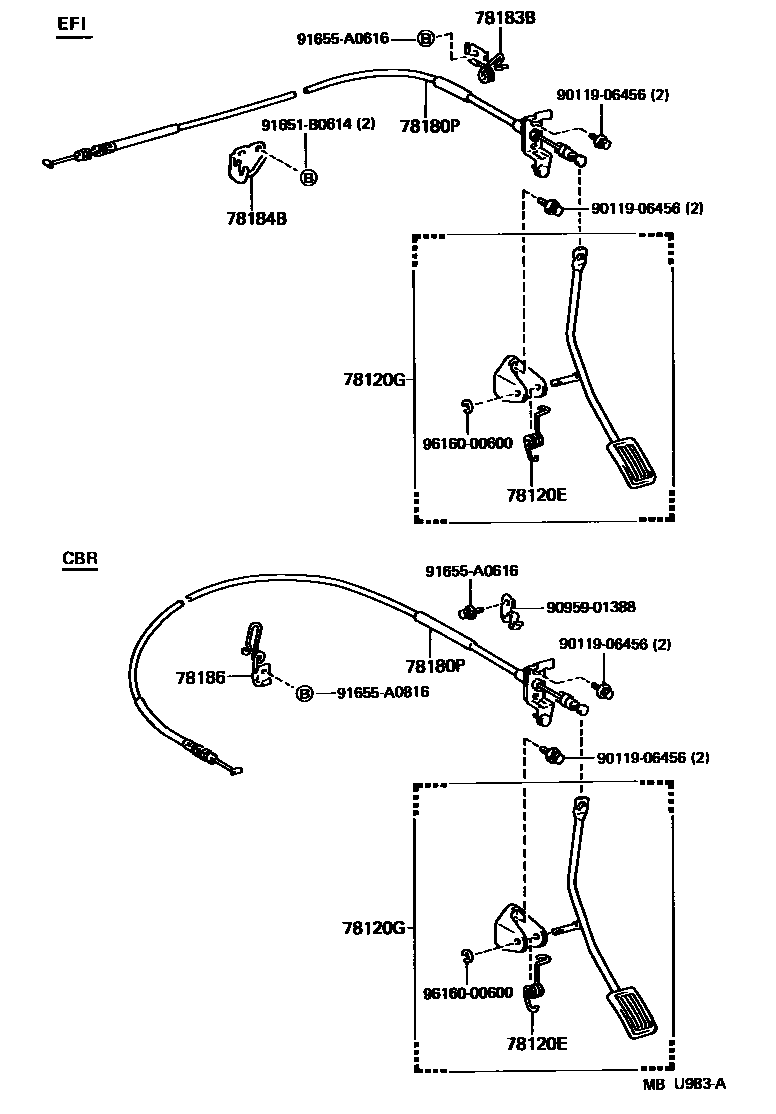

Parts diagram

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-21005i198912-199201

main90959-03019i199201-199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-10050i199201-199601

main78120-10060i199201-199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10430i198912-199201

main78180-10440i198912-199601

main78180-10520i198912-199509

main78180-10530i199212-199509

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10060i198912-199506

main78183-10061i199506-199601

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-10010i198912-199509

main78184-10080i198912-199601

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10100i198912-199509

main78186-10130i198912-199201

9011906456

main90119-06456

9095901388

main90959-01388

91651B0614

main91651-B0614

91655A0616

main91655-A0616

91655A0816

main91655-A0816

9616000600

main96160-00600

12 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota STARLET

This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota STARLET. Key components include: SPRING, TENSION (FOR ACCELERATOR LINK ROD), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, CLAMP, ACCELERATOR CONTROL CABLE, BRACKET, ACCELERATOR CONTROL CABLE.
