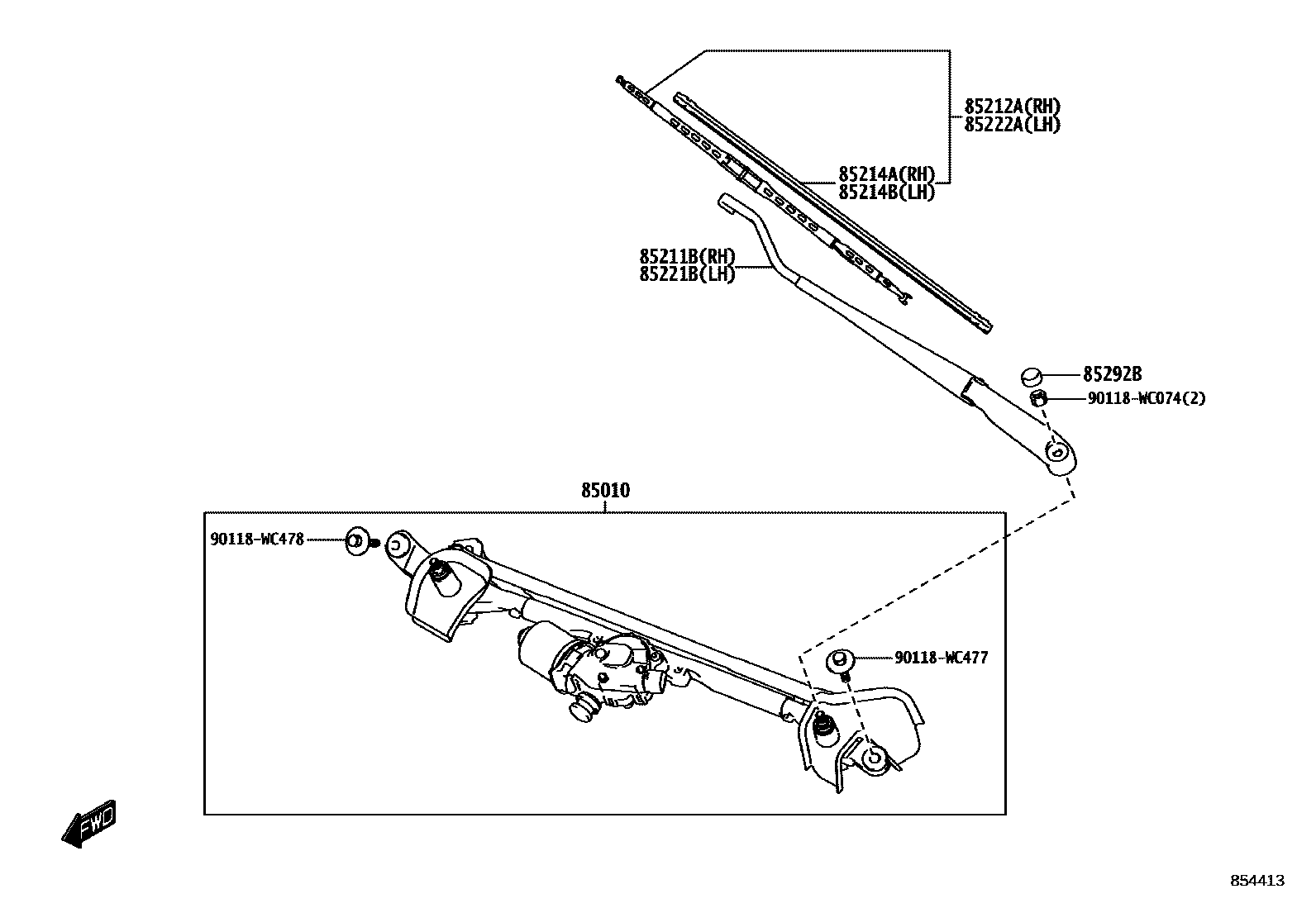

Toyota STARLET — WINDSHIELD WIPER
85010MOTOR & LINK ASSY, FR WIPER
main85010-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
main85010-WC003iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
85211BARM, FRONT WIPER, RH
main85211-WC001iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main85211-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
85212ABLADE, FR WIPER, RH
main85212-WC001iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main85212-WC003iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
85214ARUBBER, WIPER, RH
main85214-WC003iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
85214BRUBBER, WIPER, LH
main85214-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
85221BARM, FRONT WIPER, LH
main85221-WC001iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main85221-WC002iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
85222ABLADE, FR WIPER, LH
main85212-WC002iK14B..4FC..L..SA; K14B..4FC..P..SA; K14B..4FC..X..SA; K14B..5F..L..SA; K14B..5F..P..SA; K14B..5F..X..SA202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.51; POS.52
main85212-WC004iK14B..4FC..L..AFR; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SUD202007
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.53; POS.54; POS.55; POS.56
85292BCAP, FRONT WIPER ARM HEAD
main85292-WC002×2iK14B..4FC..L..AFR; K14B..4FC..L..SA; K14B..4FC..L..SUD; K14B..4FC..P..AFR; K14B..4FC..P..SA; K14B..4FC..P..SUD; K14B..4FC..X..AFR; K14B..4FC..X..SA; K14B..4FC..X..SUD; K14B..5F..L..AFR; K14B..5F..L..SA; K14B..5F..L..SUD; K14B..5F..P..AFR; K14B..5F..P..SA; K14B..5F..P..SUD; K14B..5F..X..AFR; K14B..5F..X..SA; K14B..5F..X..SUD202007
POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56
90118WC074
main90118-WC074
90118WC477
main90118-WC477
90118WC478
main90118-WC478
11 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota STARLET
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota STARLET. Key components include: MOTOR & LINK ASSY, FR WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH, RUBBER, WIPER, LH.
