Toyota STARLET — WINDSHIELD WIPER

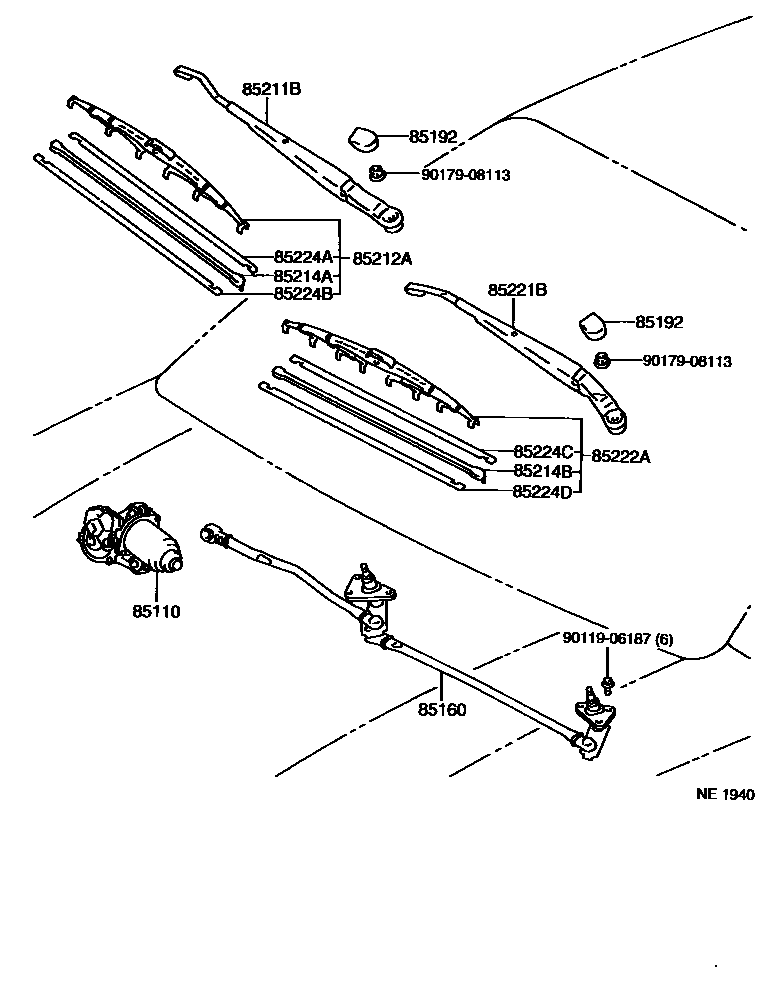

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10380i199601

main85110-10390i199601

main85110-16580i199601

85160LINK ASSY, WINDSHIELD WIPER

main85150-10370i199601

main85150-10380i199601

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2i199601

85211BARM, FRONT WIPER, RH

main85211-10110i199601

main85211-10120i199601

85212ABLADE, FR WIPER, RH

main85212-10130i199601

main85212-10140i199601

85214ARUBBER, WIPER, RH

main85214-10080i199601

main85214-10120i199601

85214BRUBBER, WIPER, LH

main85214-10090i199601

main85214-10110i199601

85221BARM, FRONT WIPER, LH

main85221-10120i199601

main85221-10130i199601

85222ABLADE, FR WIPER, LH

main85222-10230i199601

main85222-10240i199601

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10180i199601

main85224-35060i199601

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10180i199601

main85224-35060i199601

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10190i199601

main85224-10210i199601

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10190i199601

main85224-10210i199601

9011906187

main90119-06187

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota STARLET

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota STARLET. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
