Toyota STARLET — WINDSHIELD WIPER

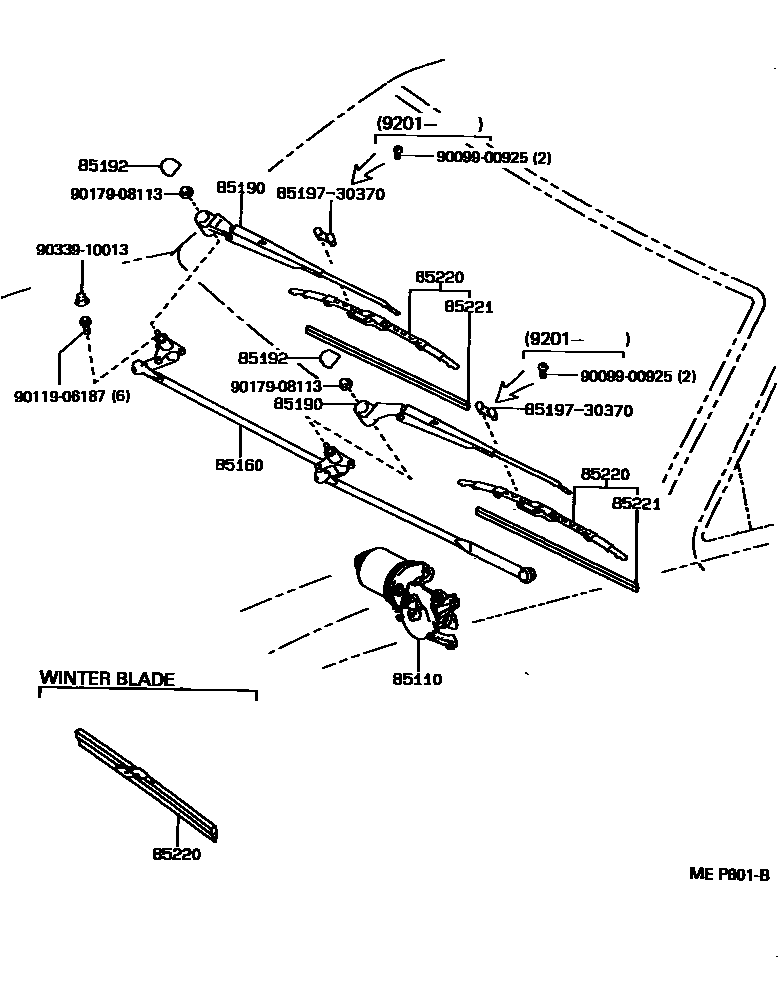

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10210i198912

main85110-10330i199201-199601

COLD SPEC

main85110-10350i198912-199112

main85110-10370i199112-199601

85160LINK ASSY, WINDSHIELD WIPER

main85150-10210i198912-199012

main85150-10330i199012-199402

main85150-10340i198912-199601

main85150-10351i199402

85190ARM ASSY, WINDSHIELD WIPER

main85211-10080i198912-199012

RH

main85211-10081i199012-199201

RH

main85211-10082i199201-199402

RH

main85211-10083i199402

RH

main85211-10090i198912-199201

RH

main85211-10091i199201-199601

RH

main85221-10080i198912-199012

LH

main85221-10090i198912-199201

LH

main85221-10091i199201-199601

LH

main85221-10110i199012-199201

LH

main85221-10111i199201

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2i198912

85220BLADE ASSY, WINDSHIELD WIPER

main85212-10120i199201-199206

RH

main85212-12290i199201

RH

main85212-24050i198912-199201

RH

main85220-12671i199206-199601

RH

main85220-32860i198912-199601

LH

main85222-10180i198912-199409

LH

main85222-10220i199409

LH

main85291-12010i199201-199601

WINTER BLADE,LH

main85291-32030i199201-199601

WINTER BLADE,RH

85221BLADE, WINDSHIELD WIPER

main85221-12230i199409

LH

main85221-24040i198912

RH

main85221-32050i198912-199601

LH

main85221-89106i198912-199601

RH

main85223-10180i198912-199409

LH

8519730370

main85197-30370

9009900925

main90099-00925

9011906187

main90119-06187

9017908113

main90179-08113

9033910013

main90339-10013

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota STARLET

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota STARLET. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, BLADE ASSY, WINDSHIELD WIPER.
